Code: PM003800 |

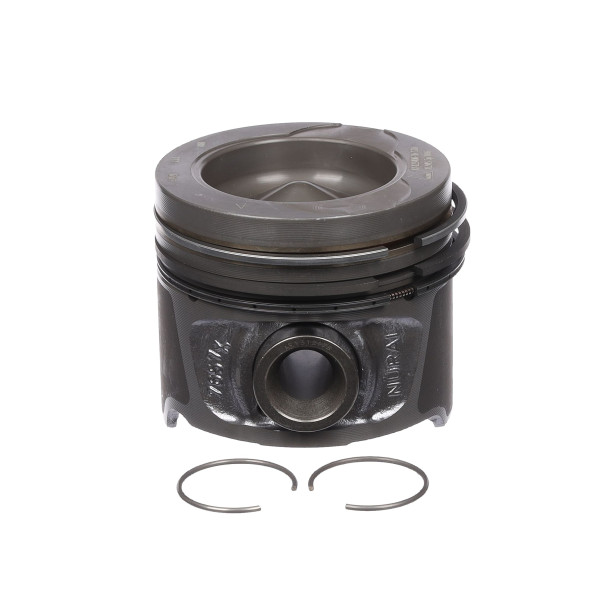

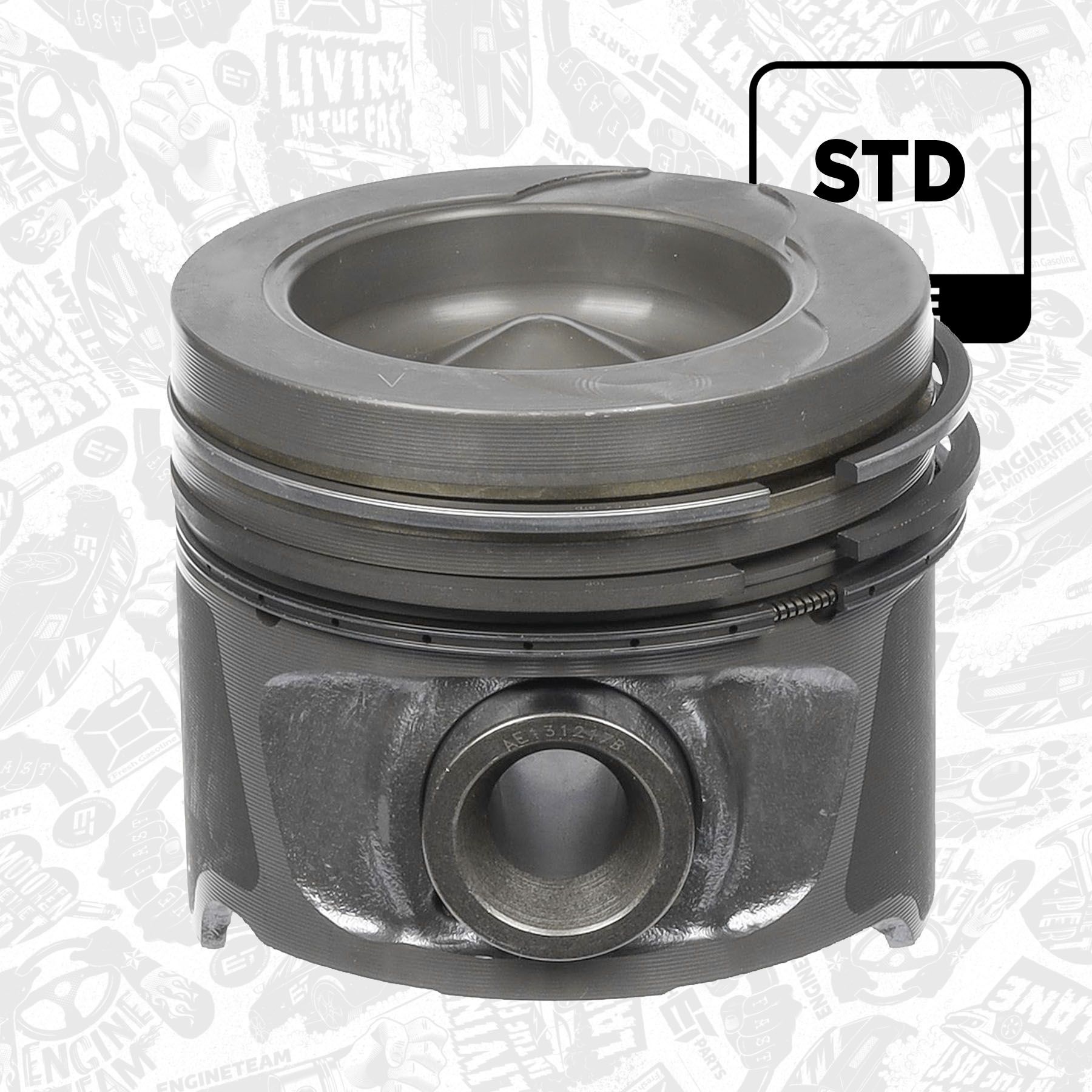

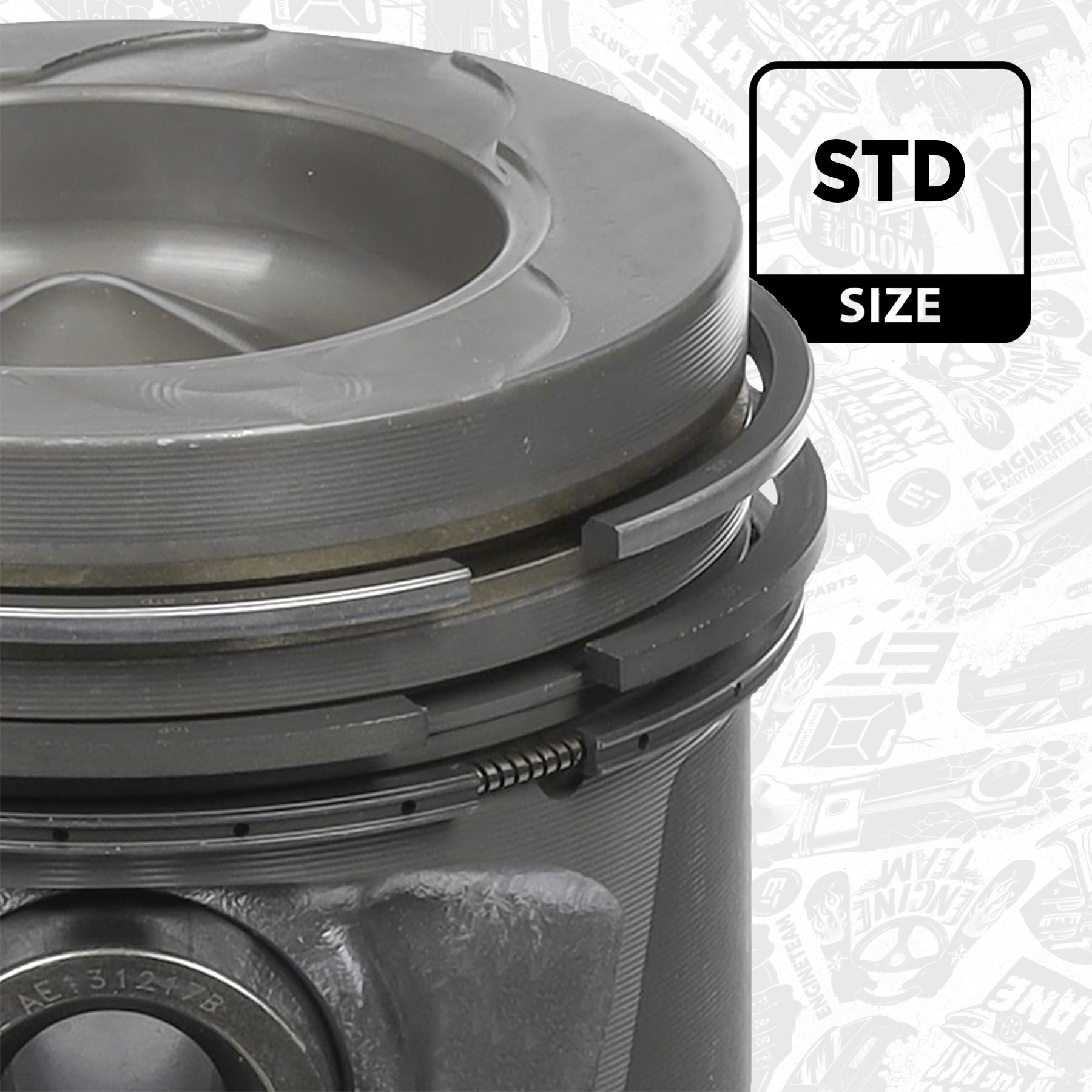

Title: Piston with rings and pin
Piston with rings and pin - PM003800 ET ENGINETEAM - 8200405109, 87-123400-30
Car: RENAULT
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info 2: | for keystone connecting rod |
| Supplementary Article/Supplementary Info 2: | with cooling duct |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Recess Depth 1 [mm]: | 12,8 mm |
| Compression Height [mm]: | 41,7 mm |
| Cylinder Bore [mm]: | 76 mm |
| Bolt Head Diameter [mm]: | 26 mm |
| Recess Diameter [mm]: | 49 mm |
| Bolt Length [mm]: | 60 mm |
| Valve Pocket Depth 1 [mm]: | 0,43 mm |
| Valve Pocket Depth 2 [mm]: | 0,25 mm |
| Machined: | with cut-out for oil jet |
| Standard Size [STD]: | yes |
Where to buy?
EAN: 8592779015634
Piston with rings and pin ET Engineteam PM003800 for vehicles Renault with engines 1.5 dCi years 2005–2016. Recess Depth (groove) 12,8 mm, Compression Height 41,7 mm, Cyl.Bore 76 mm, Bolt Ø 26 mm, Recess Diameter 49 mm, Bolt Length 60 mm, Valve Pocket Depth 1 0,43 mm and Valve Pocket Depth 2 0,25 mm, Machined with cavity/cut-out for the oil nozzle, with piston ring, for trapezoidal connecting rod, with cooling channel and with piston ring carrier. Intended, for example, for Renault Clio III / Renault Fluence / Renault Grand Scénic III / Renault Laguna III / Renault Megane II and others. Engine codes K9K 732, K9K 764, K9K 780, K9K 804.
OE numbers: 8200405109.
Automatically generated description. Please verify compatibility before ordering.
