Code: PM004100 |

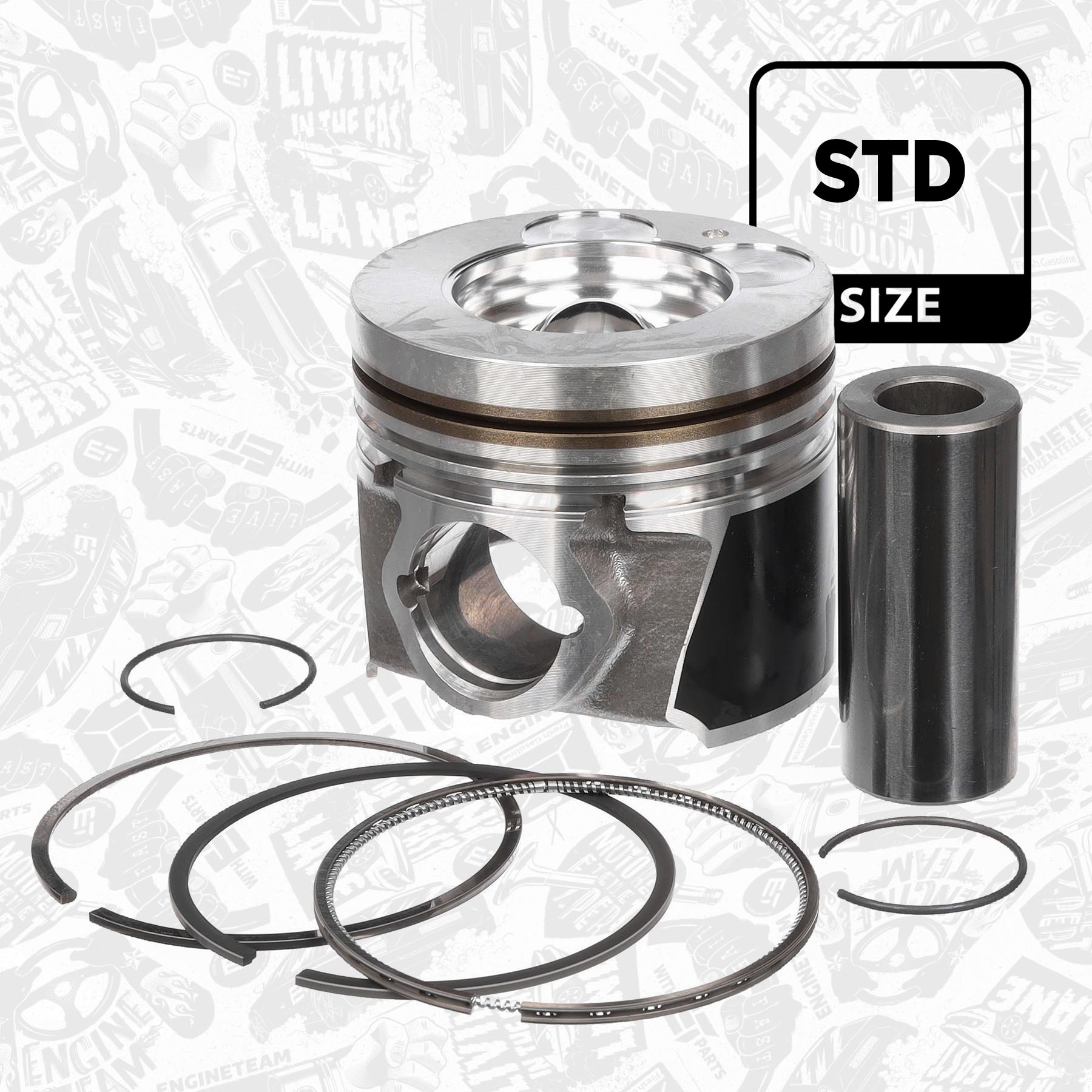

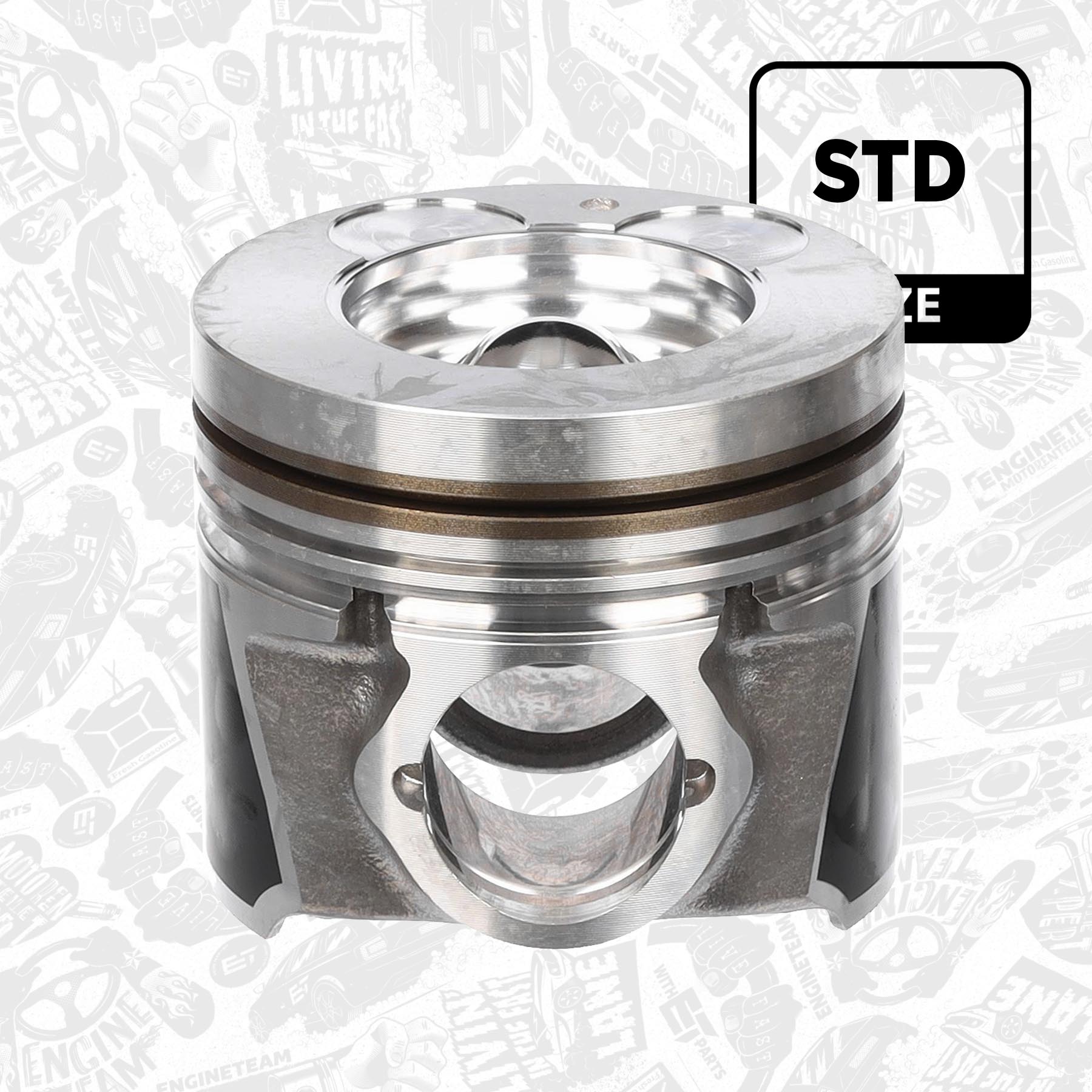

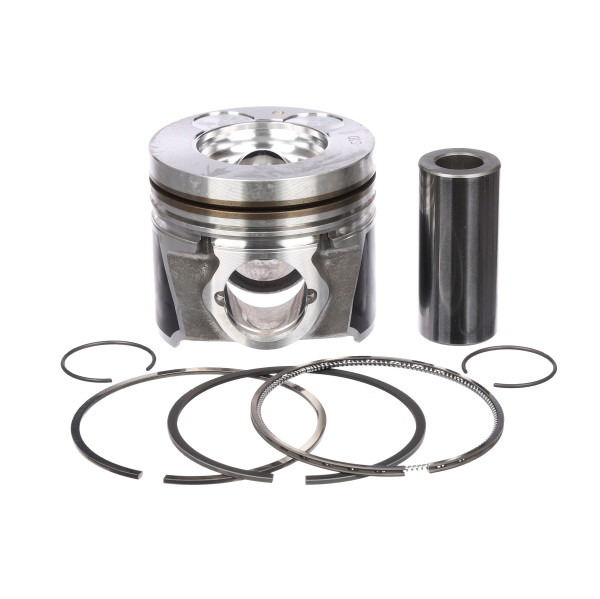

Title: Piston with rings and pin
Piston with rings and pin - PM004100 ET ENGINETEAM - 23410-2A961, 23410-2A962, 23410-2A963
Car: Hyudai i20/i30/Elantra, Kia Carens/Ceed/Soul/Venga 1,6CRDi D4FB 2005+
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 12,7 mm |
| Compression Height [mm]: | 42 mm |
| Cylinder Bore [mm]: | 77,2 mm |
| Bolt Head Diameter [mm]: | 28 mm |
| Recess Diameter [mm]: | 44 mm |
| Bolt Length [mm]: | 62 mm |
| Valve Pocket Depth 1 [mm]: | 2,9 mm |
| Valve Pocket Depth 2 [mm]: | 2,9 mm |
| Standard Size [STD]: | yes |
| Stock: | 7 pcs |
Where to buy?
EAN: 8592779016044
Piston including rings and gudgeon pin ET ENGINETEAM PM004100 for vehicles Hyundai and Kia with 1.6 CRDi engines, years 2005–2025. With piston ring, recess depth (groove) 12,7 mm, compression height 42 mm, cylinder bore 77,2 mm, recess diameter 44 mm, bolt Ø 28 mm, bolt length 62 mm, valve pocket depth 1 and 2 equally 2,9 mm. Intended for example for Hyundai i20 1.6 CRDi, Hyundai Accent 1.6 CRDi, Hyundai Elantra 1.6 CRDi, Hyundai i30 1.6 CRDi and Kia cee’d 1.6 CRDi. D4FB engines.
OE numbers: 23410-2A961, 23410-2A962, 23410-2A963, 23410-2A964, 23410-2A965.
Automatically generated description. Please verify compatibility before ordering.
