Code: PM005500 |

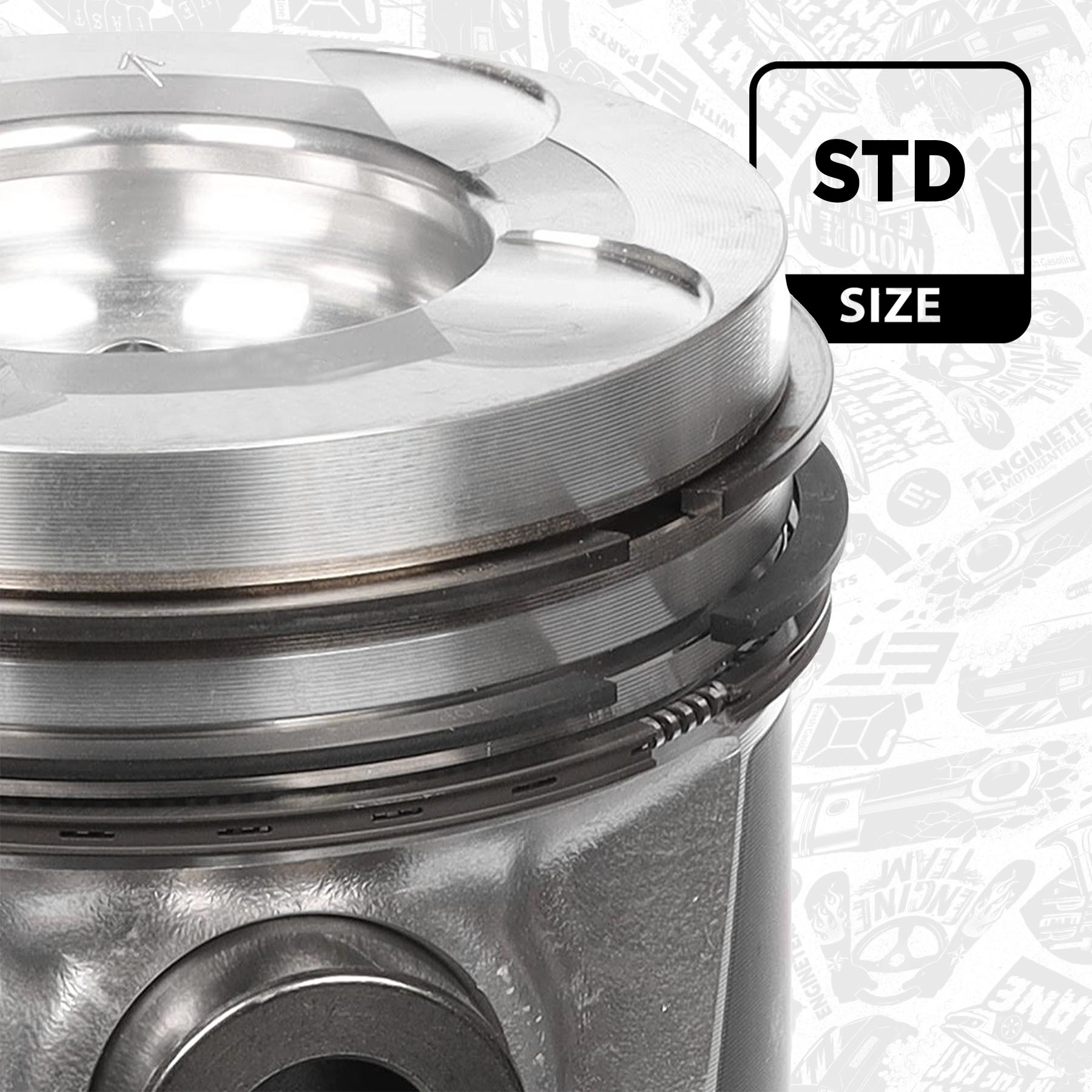

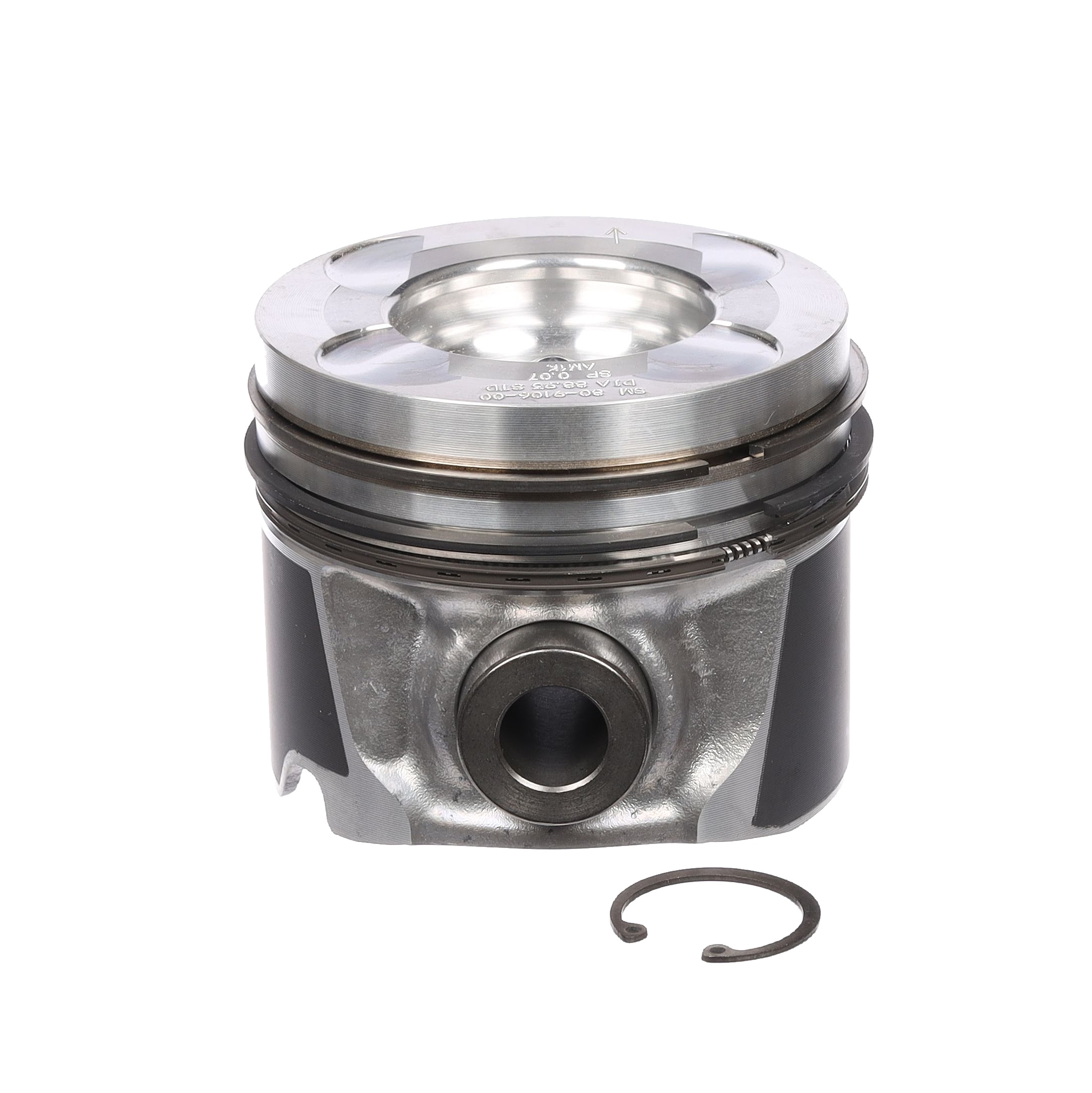

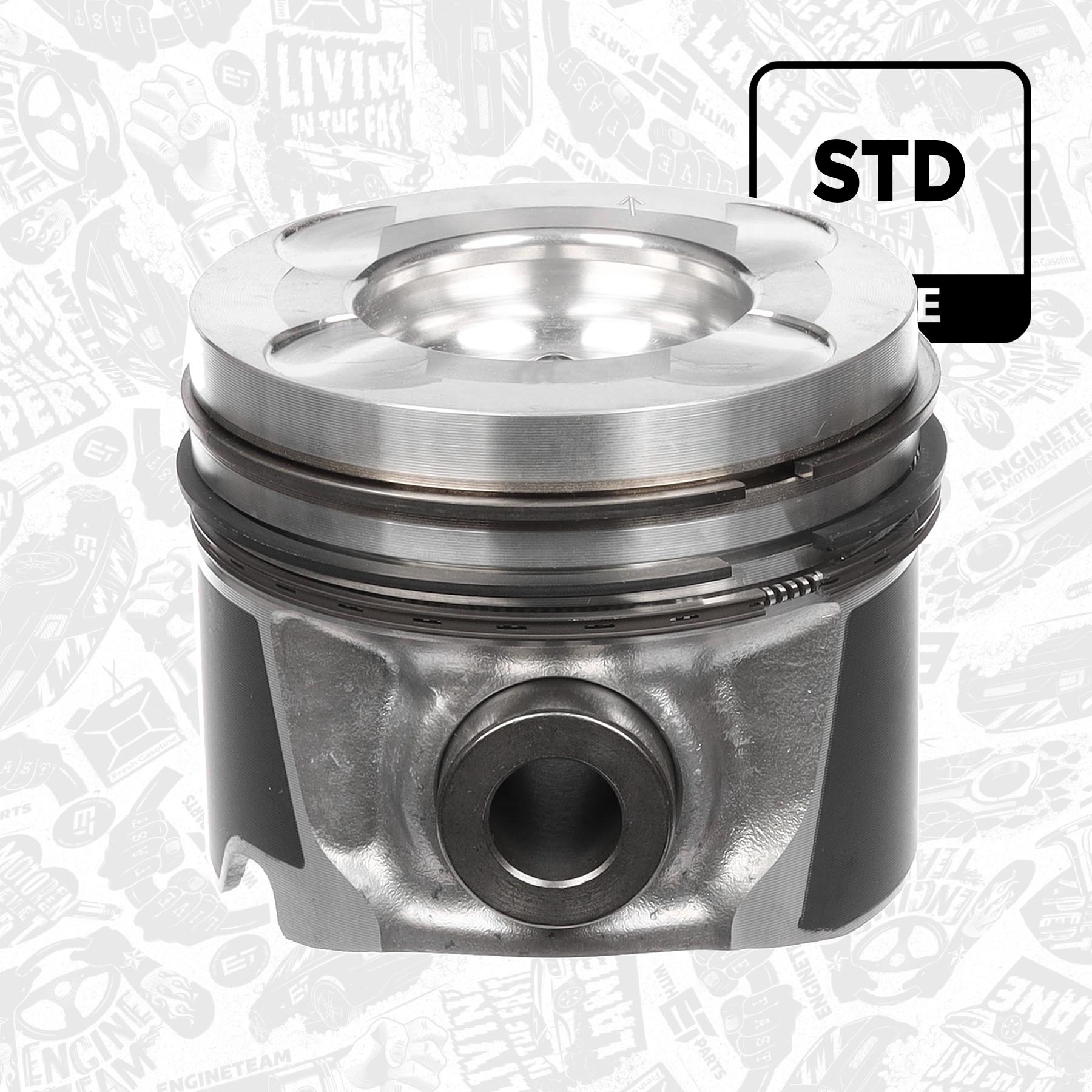

Title: Piston with rings and pin
Piston with rings and pin - PM005500 ET ENGINETEAM - A2010-EC00B, A2010-EC01B, A2010-EC02B
Car: Nissan Cabstar King Cab Navara NP300 Pathfinder 2,5TD 2,5dCi YD25DDTi 2006+
| Model Year from: | 2006 |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Recess Depth 1 [mm]: | 17,3 mm |
| Compression Height [mm]: | 48,9 mm |
| Cylinder Bore [mm]: | 89 mm |
| Recess Diameter [mm]: | 47,40 mm |
| Bolt Length [mm]: | 71 mm |
| Valve Pocket Depth 1 [mm]: | 8 mm |
| Standard Size [STD]: | yes |
| Stock: | > 25 pcs |
Where to buy?
EAN: 8592779018574
Piston with rings and pin ET ENGINETEAM PM005500 for vehicles Nissan with 2.5 dCi engines, years 2006–2013. With piston ring and piston ring carrier, recess depth (groove) 17.3 mm, compression height 48.9 mm, cyl.bore 89 mm, recess diameter 47.40 mm, bolt length 71 mm and valve pocket depth 8 mm. Intended for example for Nissan Cabstar / Nissan Navara / Nissan Murano II / Nissan Pathfinder III / Nissan Pickup and others. YD25DDTi engines.
OE numbers: A2010-EC00B, A2010-EC01B, A2010-EC02B, A2010-EC08B, A2010-EC09B.
Automatically generated description. Please verify compatibility before ordering.
Documents
Part type
Safety information
Is a part of
General information
| Code: | PM005500VR1 |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Tag: | boxET – service kit |
| Car: | Nissan Cabstar King Cab Navara NP300 Pathfinder 2,5TD 2,5dCi YD25DDTi 2006+ |
Criteria
| Quantity: | 4 |
| Component Number: | 4xPM005500 |
| Cylinder Bore [mm]: | 89 mm |
| Recess Depth 1 [mm]: | 17,3 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 71 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 48,9 mm |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Valve Pocket Depth 1 [mm]: | 8 mm |
| Recess Diameter [mm]: | 47,4 mm |
| Model Year from: | 2006 |
Show all
Show less
| Stock: | 9 pcs |
