Piston with rings and pin - PM006050 ET ENGINETEAM - 40251620
Car: Skoda Octavia Superb, VW Passat Tiguan, Audi Seat 1,8TSi BYT BZB CEAA
| Cylinder Bore [mm]: | 83,01 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston protrusion [mm]: | 4,75 mm |
| Bolt length [mm]: | 53 mm |
| Bolt Ø [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| Oversize [mm]: | 0,5 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Stock: | 22 pcs |
EAN: 8592779019861

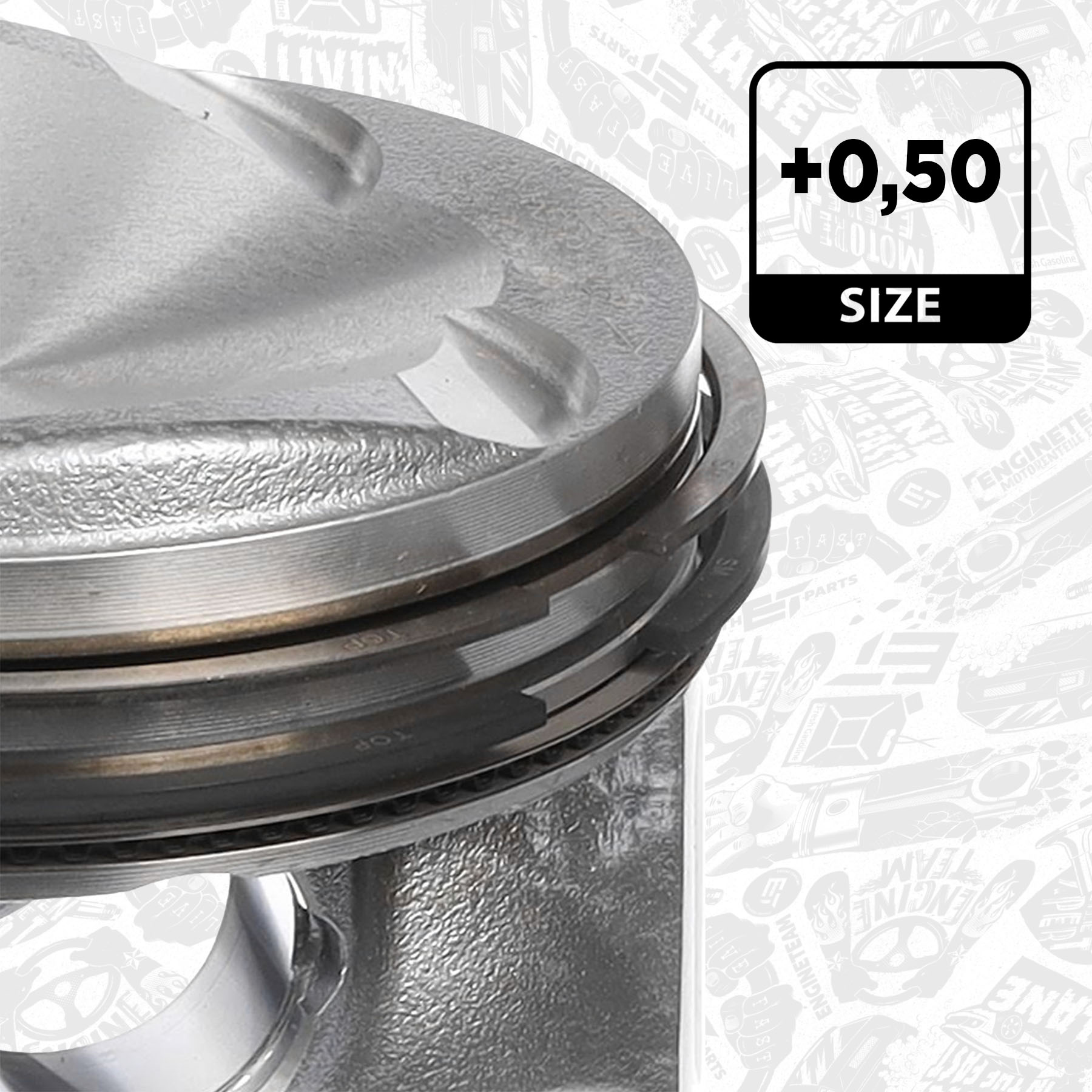

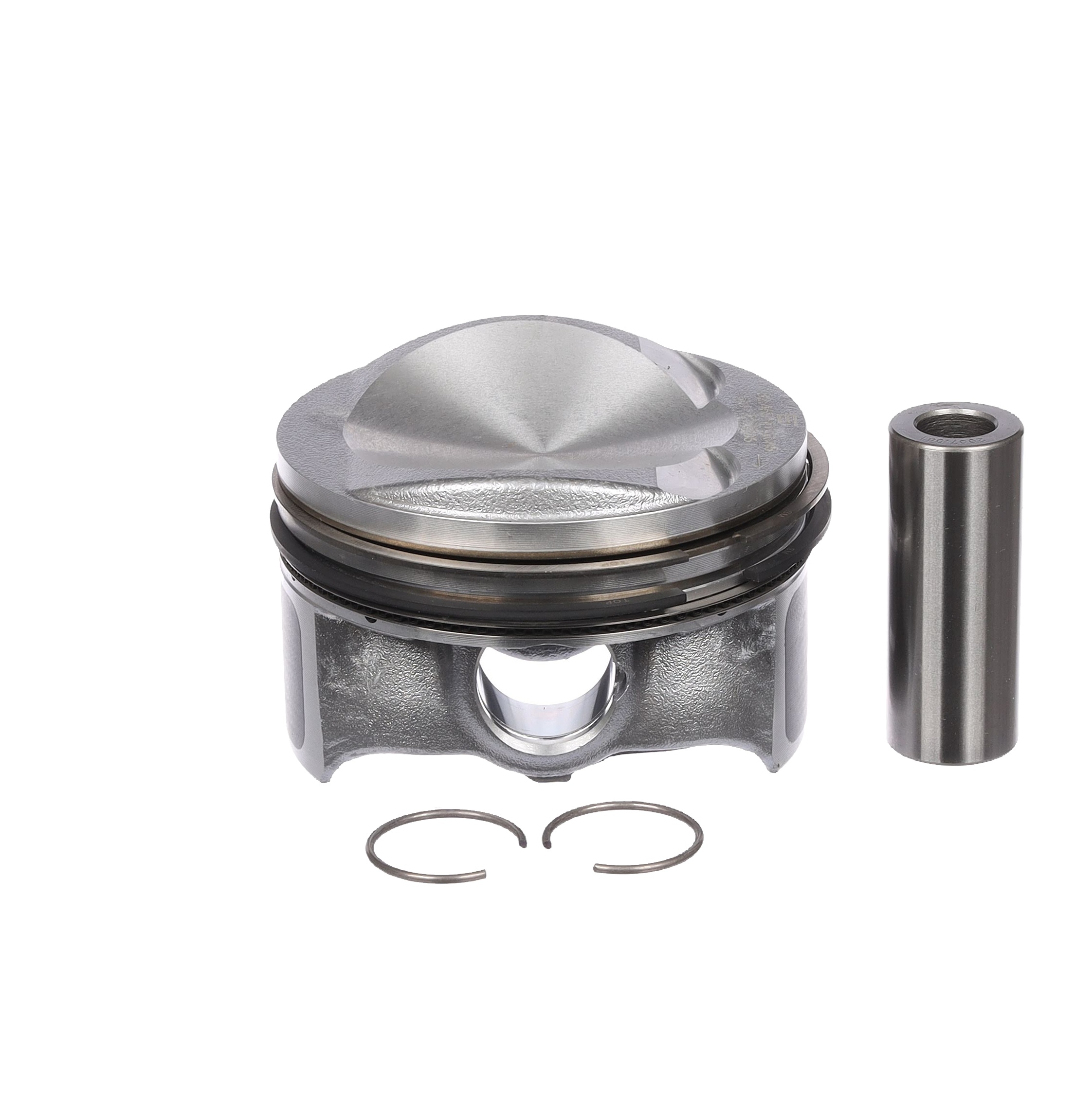

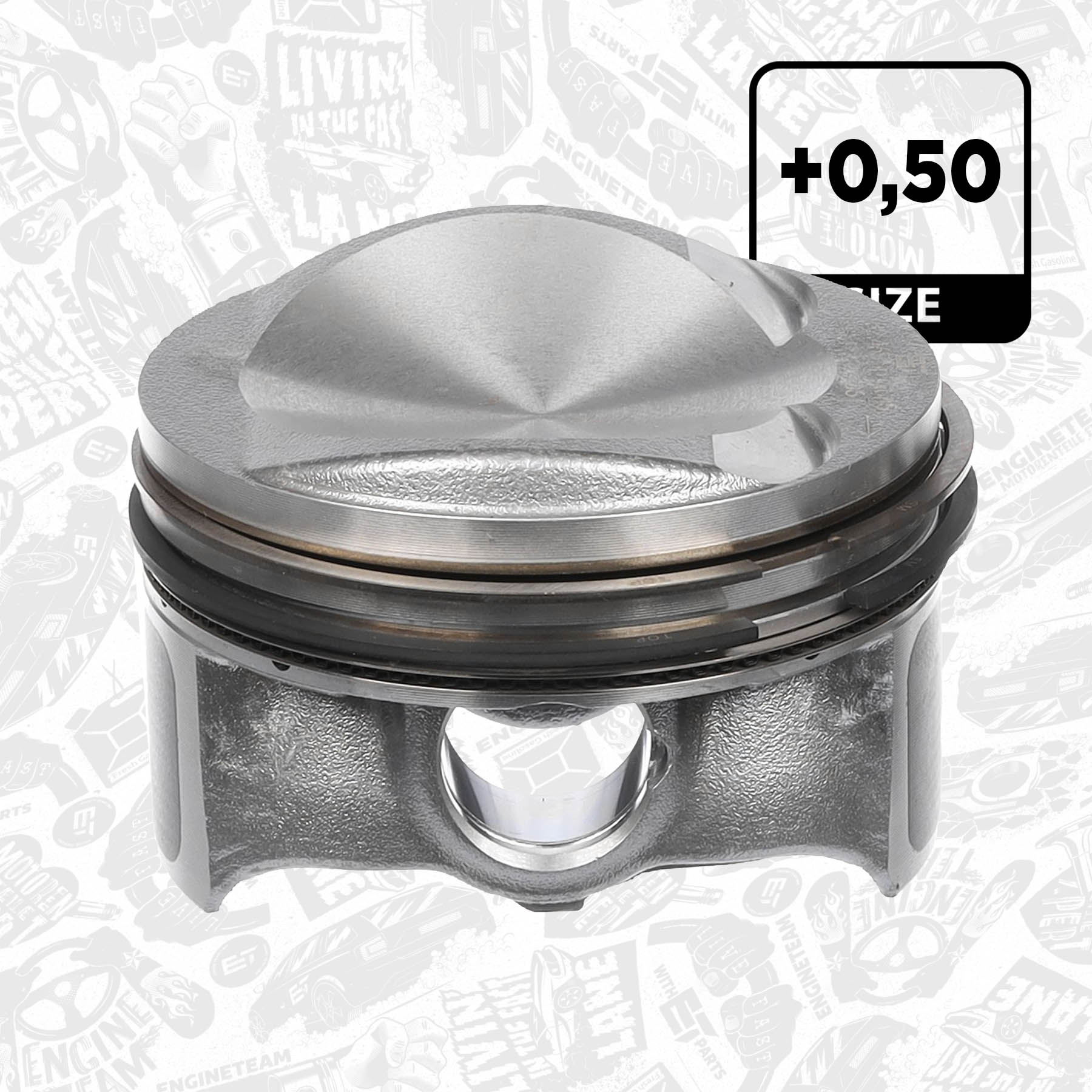

An oversize piston from the Czech manufacturer ET Engineteam - complete with piston rings and 21 mm pin. Compared to standard dimensions, the piston diameter is 0.5 mm larger. With a piston ring carrier, suitable for a trapezoidal rod. Suitable for CGYA, CDAA, CEAA, BYZ and other engine types. Most often in VW Passat, Audi A5, Seat Toledo and Škoda Octavia with 1.8 TFSI / TSI volumes. It is a piston of identical parameters with OE.
Also available in repair size - PM006025 oversize piston.
Important information: Over the years, manufacturing processes and some components have changed. Manufacturers gradually installed newer versions of pistons with various diameters of the combustion chamber at the piston bottom. We recommend that you verify these parameters before ordering. If you know the part number from the OE catalog, the identification is straightforward. To identify the part via engine or car model, it is recommended to send a VIN code when ordering so we can verify compatibility.
The Czech company ET Engineteam is a renowned supplier and aftermarket manufacturer. It is part of the European TecDoc catalog. The quality of ET Engineteam products is comparable to OE products.
Reference Numbers
Is a part of
General information
| Code: | PM006050ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | VW Passat, Audi A5, Skoda Superb, Seat Leon 1,8 TSI BYT BZB CDAA 2006+ |
| Weight : | 2,10 kg |
Criteria
| Cylinder Bore [mm]: | 83,01 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston protrusion [mm]: | 4,75 mm |
| Bolt length [mm]: | 53 mm |
| Bolt Ø [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| Oversize [mm]: | 0,5 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | 4x PM006050 |
| Stock: | 5 pcs |
Alternatives
General information
| Code: | PM006050ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | VW Passat, Audi A5, Skoda Superb, Seat Leon 1,8 TSI BYT BZB CDAA 2006+ |
| Weight : | 2,10 kg |
Criteria
| Cylinder Bore [mm]: | 83,01 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston protrusion [mm]: | 4,75 mm |
| Bolt length [mm]: | 53 mm |
| Bolt Ø [mm]: | 21 mm |
| Recess Depth 1 [mm]: | 6 mm |
| Recess Diameter [mm]: | 67 mm |
| Oversize [mm]: | 0,5 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | 4x PM006050 |
| Stock: | 5 pcs |
General information
| Code: | PM006050KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Car: | 40251620S Audi A5, Seat Altea, Skoda Octavia, VW 1,8 TSI CEA CEAA CGYA 2007+ |
| Weight : | 2,10 kg |
Criteria
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 29,8 mm |
| Piston protrusion [mm]: | 5,7 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Recess Diameter [mm]: | 67 mm |
| Bolt Ø [mm]: | 21 mm |
| Bolt length [mm]: | 53 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Component Number: | 4x 40251620 |
| Cylinder Bore [mm]: | 83,01 mm |
| Scope of Supply: | includes components Kolbenschmidt + Elring |
