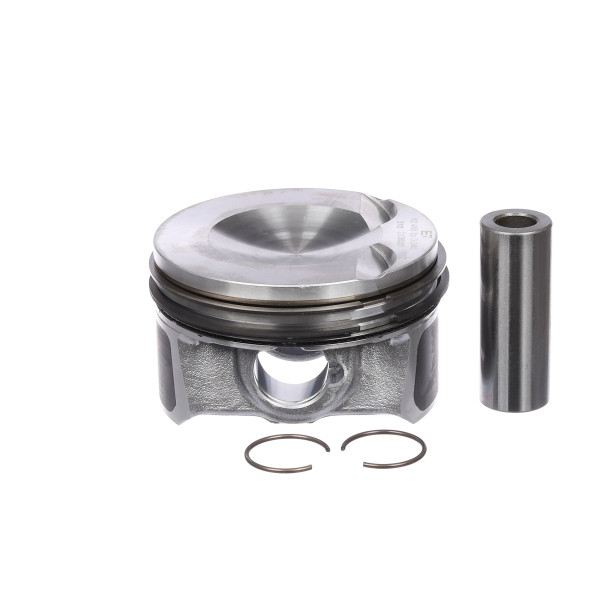

Piston with rings and pin - PM006350 ET ENGINETEAM - 40247620
Car: Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 6,2 mm |
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 29,6 mm |
| Cylinder Bore [mm]: | 83,01 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Diameter [mm]: | 50 mm |
| Bolt Length [mm]: | 56 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Stock: | 13 pcs |
EAN: 8592779019939

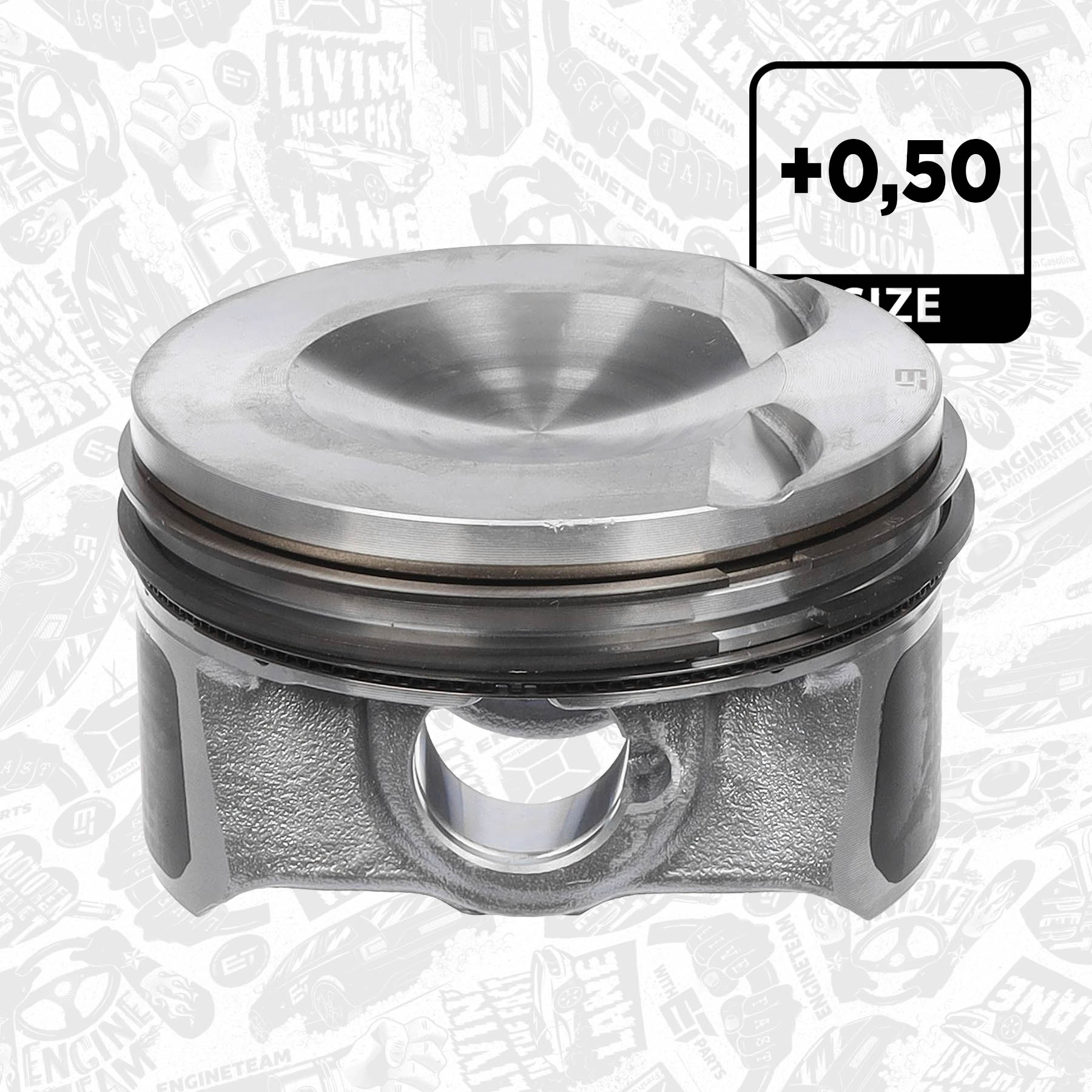

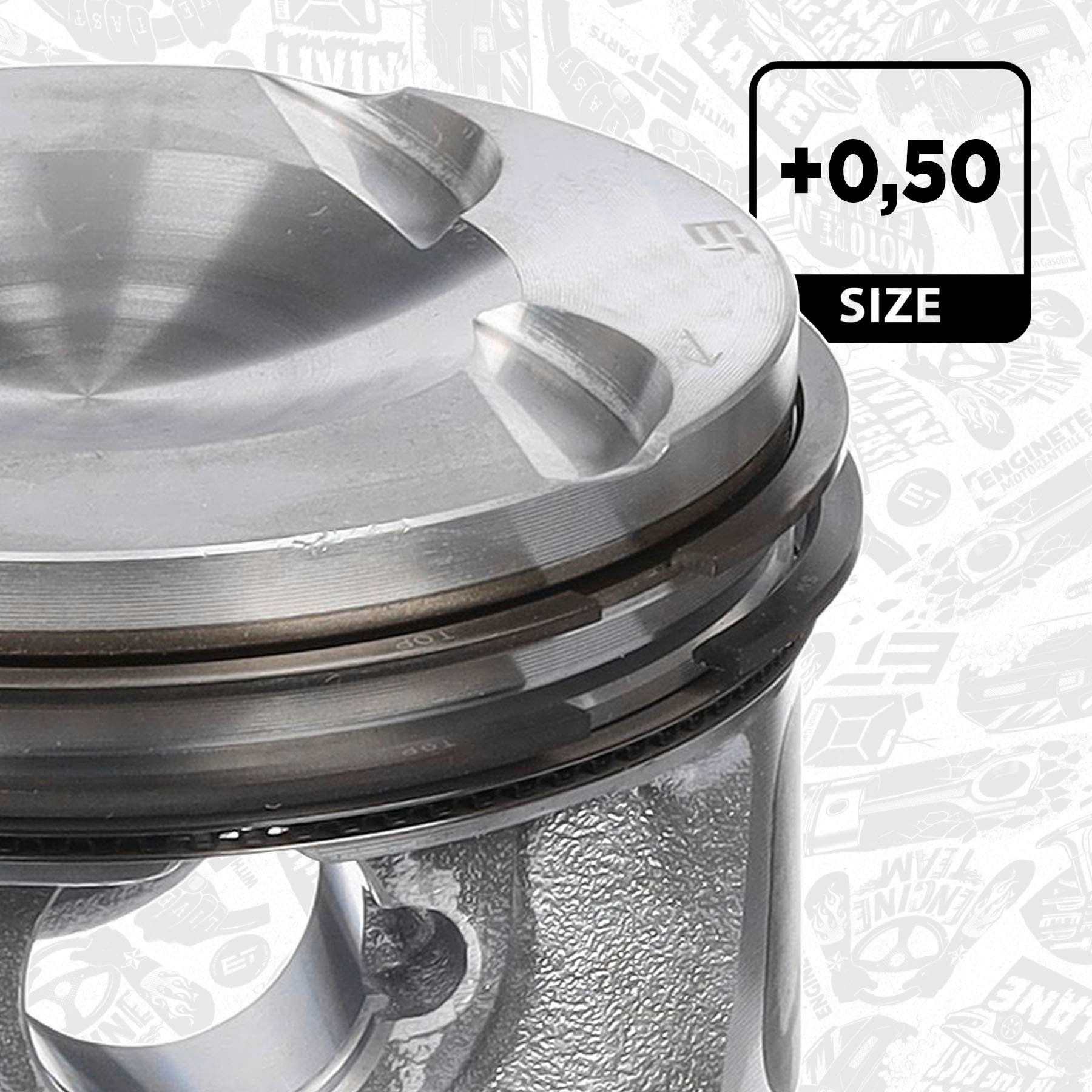

A complete oversize piston ET EngineTeam with piston rings and 21 mm bolt. Compared to the standard version, it comes in larger size (+ 0.50 mm). Suitable for CDZA, CAWB, CADA, CBFA, CCTB, CGMA and other engine types. Most often in VW Golf / Eos / Sharan / Scirocco / CC, Škoda Octavia / Superb, Audi A3 Sportback / TT / Q3, Seat Leon / Altea / Alhambra with 2.0 TFSI / TSI volumes.
It is also available in another repair size - oversize piston PM006325 (+0.25 mm) and standard size - piston PM006300.
Important information: Over the years, manufacturing processes and some components have changed. Manufacturers gradually installed newer versions of pistons with various diameters of the combustion chamber at the piston bottom. We recommend that you verify these parameters before ordering. If you know the part number from the OE catalog, the identification is straightforward. To identify the part via engine or car model, it is recommended to send a VIN code when ordering so we can verify compatibility.
ET EngineTeam is a Czech manufacturer of spare parts for the aftermarket. It is one of the most important suppliers on the Czech market and successfully expands abroad. It is part of the European TecDoc catalog.
Safety information
Reference Numbers
Is a part of
General information
| Code: | PM006350ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Tag: | boxET – service kit |
| Car: | ŠKODA-VW |
Criteria
| Oversize [mm]: | 0,5 mm |
| Component Number: | 4x PM006350 |
| Bolt Head Diameter [mm]: | 21 mm |
| Cylinder Bore [mm]: | 83,01 mm |
| Recess Depth 1 [mm]: | 6,2 mm |
| Bolt Length [mm]: | 56 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,6 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Recess Diameter [mm]: | 50 mm |
| Scope of Supply: | includes components ET Engineteam + Elring + Kolbenschmidt |
| Stock: | 3 pcs |
Alternatives
General information
| Code: | PM006350ET |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Tag: | boxET – service kit |
| Car: | ŠKODA-VW |
Criteria
| Oversize [mm]: | 0,5 mm |
| Component Number: | 4x PM006350 |
| Bolt Head Diameter [mm]: | 21 mm |
| Cylinder Bore [mm]: | 83,01 mm |
| Recess Depth 1 [mm]: | 6,2 mm |
| Bolt Length [mm]: | 56 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,6 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Recess Diameter [mm]: | 50 mm |
| Scope of Supply: | includes components ET Engineteam + Elring + Kolbenschmidt |
| Stock: | 3 pcs |
General information
| Code: | PM006350KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Tag: | boxET – service kit |
| Car: | 40247620S |
Criteria
| Oversize [mm]: | 0,5 mm |
| Component Number: | 4x 40247620 |
| Bolt Head Diameter [mm]: | 21 mm |
| Cylinder Bore [mm]: | 83,01 mm |
| Recess Depth 1 [mm]: | 6,2 mm |
| Bolt Length [mm]: | 56 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,6 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Recess Diameter [mm]: | 50 mm |
| General Information: | Includes components from Kolbenschmidt + Elring |
