Code: OM0031 |

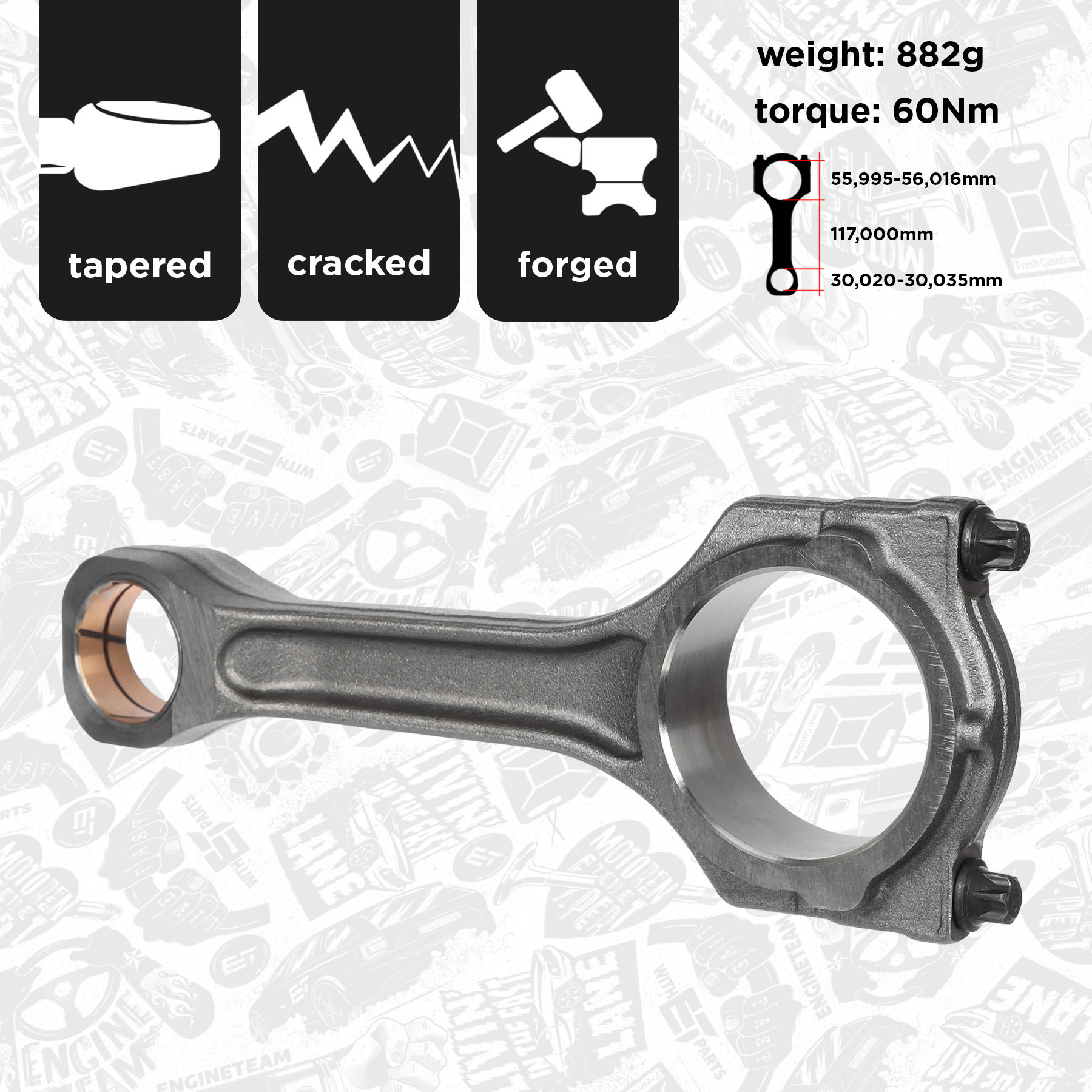

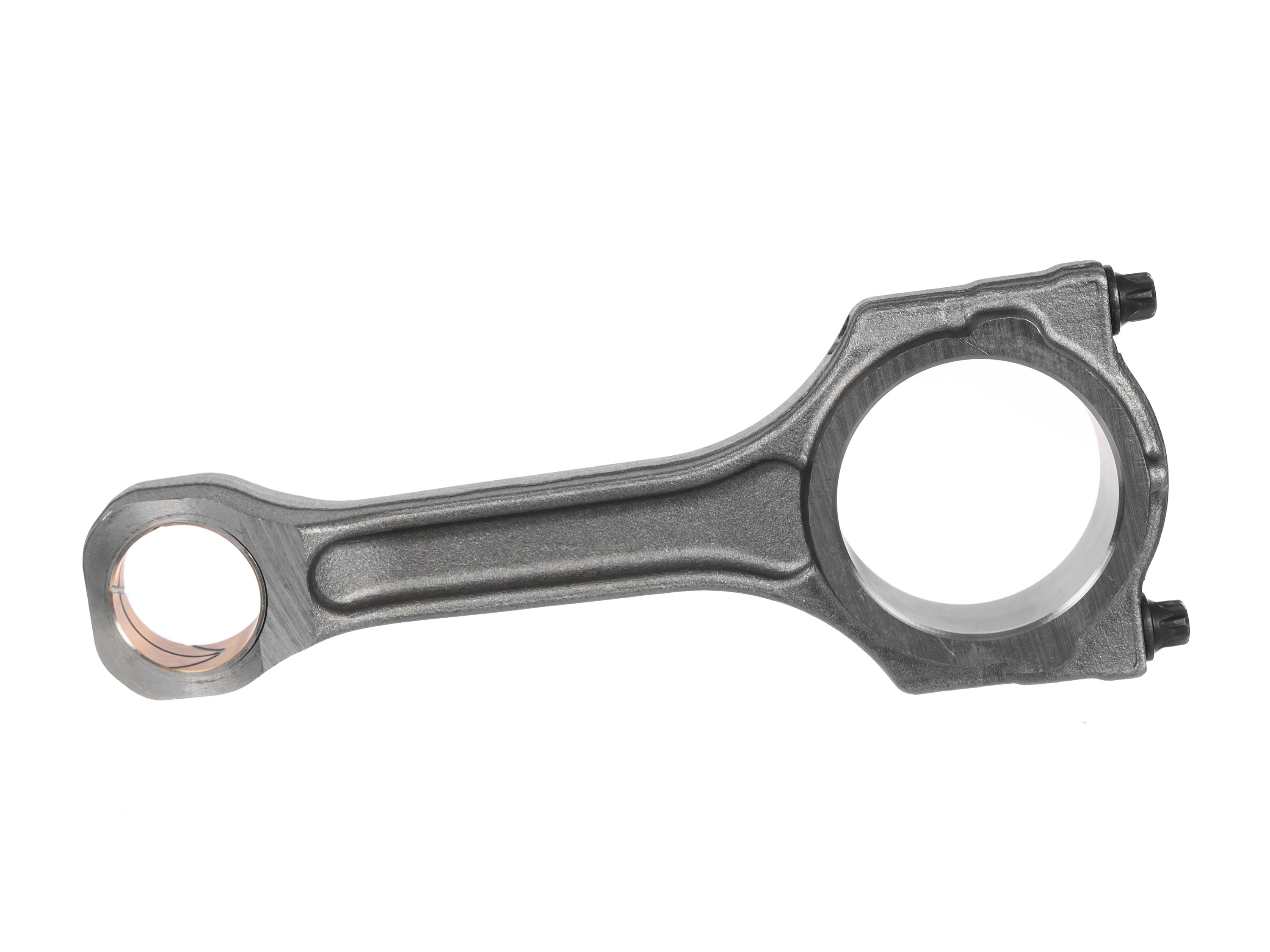

Title: Connecting Rod
Connecting Rod - OM0031 ET ENGINETEAM - 1377618, 9659672280, 1377616
Car: Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+
| Tightening Torque [Nm]: | 60 Nm |
| Diameter of large connecting rod big end [mm]: | 56 mm |
| Dia. of small connecting rod big end (with bushing) [mm]: | 30 mm |
| Hole Spacing [mm]: | 117 mm |
| Processing: | Forged |
| Processing: | cracked |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
| Stock: | > 25 pcs |
Where to buy?
EAN: 8592779020010

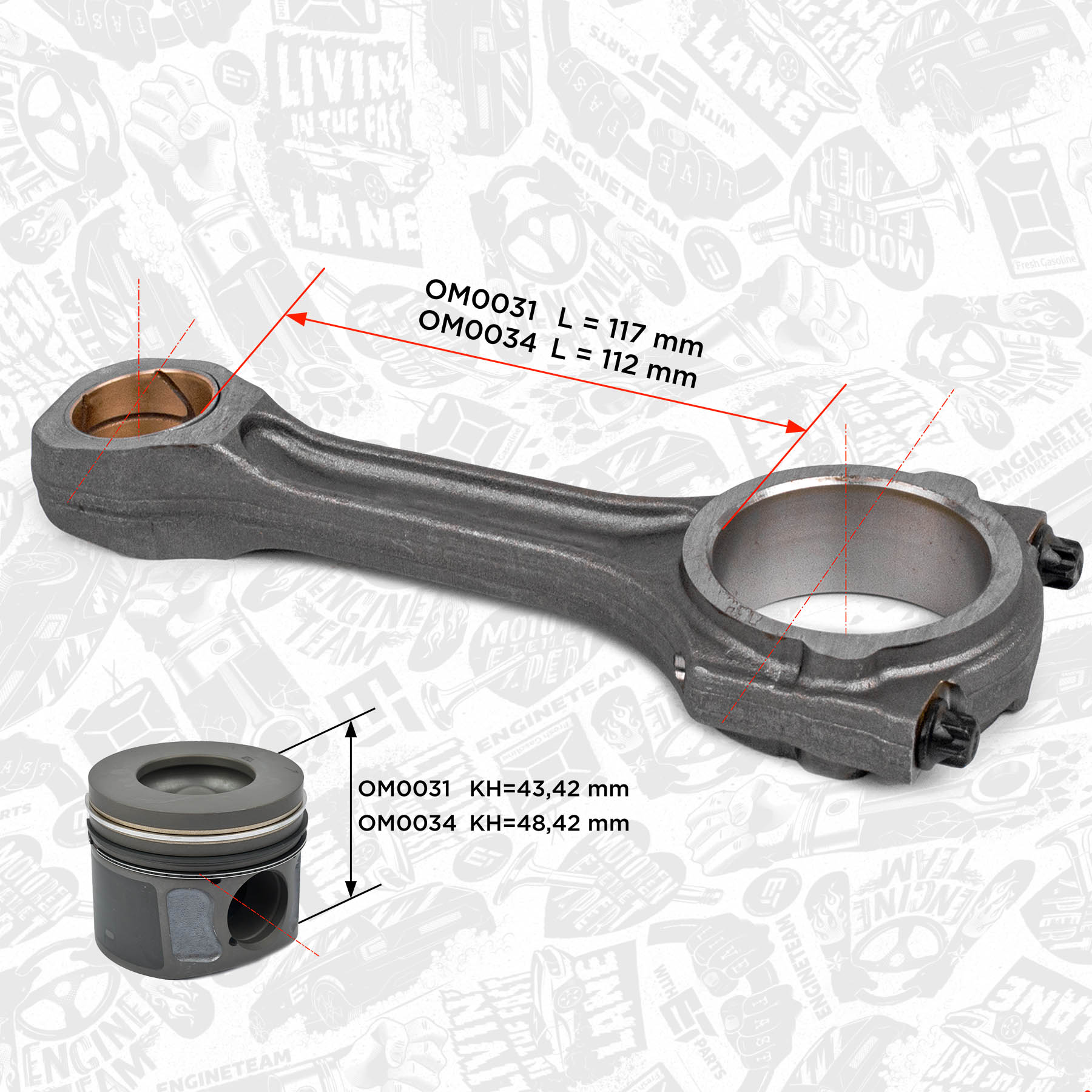

Connecting rod ET Engineteam for piston with compression height 43,42 mm. Distance between the closest edges of smaller vent for rod pin and bigger one for shaft is 117 mm. Connecting rod has a shape for easing the pressure on rod and rod pin. It is used in Fiat Ducato, Citroen Jumper, Peugeot Boxer, Ford Transit with engines 2,2 D / HDi / TDCi of types PGFA, PGFB, P8FA, P8FB, QVFA, QWFA, 4HU, 4HV / P22DTE made since the year 2000. OE number: 9659672280.
TIP : In our stock, you can find even better option as a kit OM0040 including 4 pieces of this rod.
Categories
Safety information
Reference Numbers
- FORD # 1377618
- FIAT # 9659672280
- FORD # 1377616
- FIAT # 9661857980
- FORD # 1377620
- FIAT # 9661858180
- FORD # 1S7Q-6200-CAA
- FIAT # 9667060880
- FORD # 1S7Q-6200-CBA
- FIAT # 9667060980
- FORD # 1S7Q-6200-CCA
- FIAT # 9667061080
- FIAT # 060397
- FORD # 1S7Q6200CAA
- FIAT # 0603 97
- FORD # 1S7Q6200CBA
- FIAT # 060398
- FORD # 1S7Q6200CCA
- FIAT # 0603 98
- FIAT # 060399
- FIAT # 0603 99
- MEC-DIESEL # 40045
- IPSA # CO001700
- ET ENGINETEAM # OM0040
- ET ENGINETEAM # OM0031
Alternatives
General information
| Code: | OM0040 |
| Brand: | ET ENGINETEAM |
| Title: | Conrods set 4 pcs |
| Tag: | boxET – service kit |
| Car: | Citroen Fiat Ford Peugeot 2,2DHDi TDCi 4HU 4HV PUMA 2004+ |
Criteria
| Tightening Torque [Nm]: | 60 Nm |
| Hole Spacing [mm]: | 117 mm |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
| Standard Set: | yes |
| Weight [g]: | 873 g |
| Processing: | Forged |
| Processing: | cracked |
| Pin Diameter [mm]: | 30 mm |
Show all
Show less
| Stock: | > 25 pcs |
