Code: PM004800KS |
Title: Piston kit

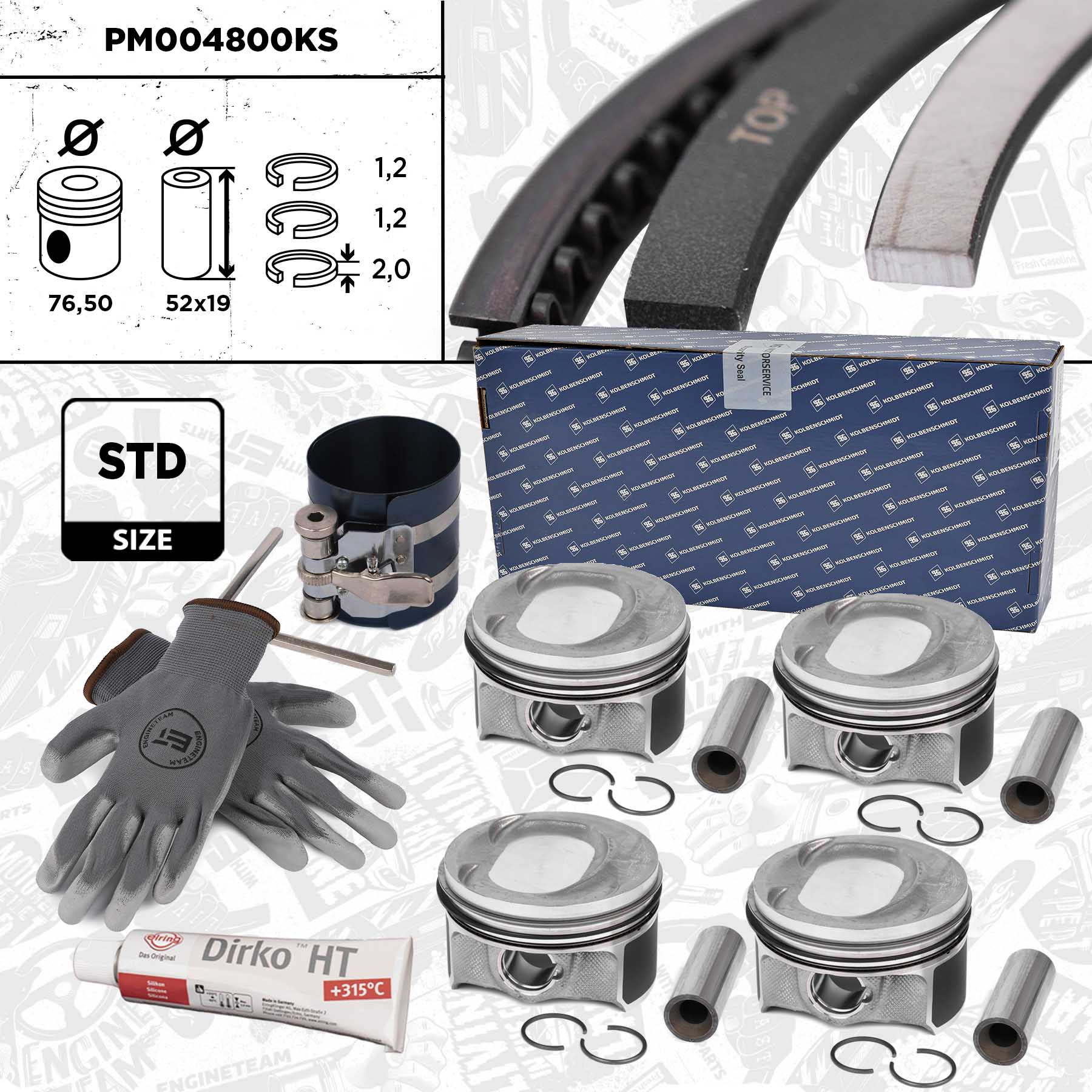

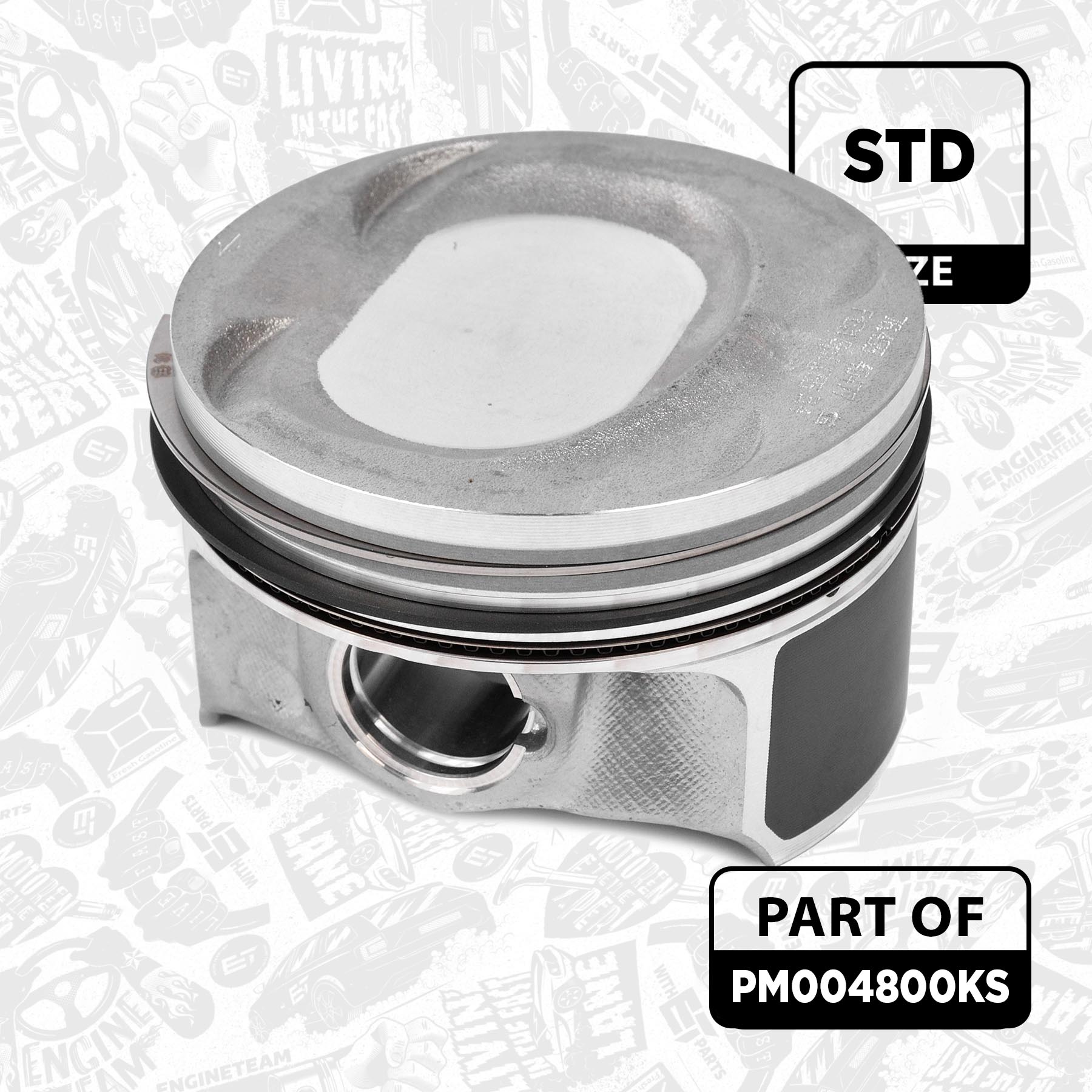

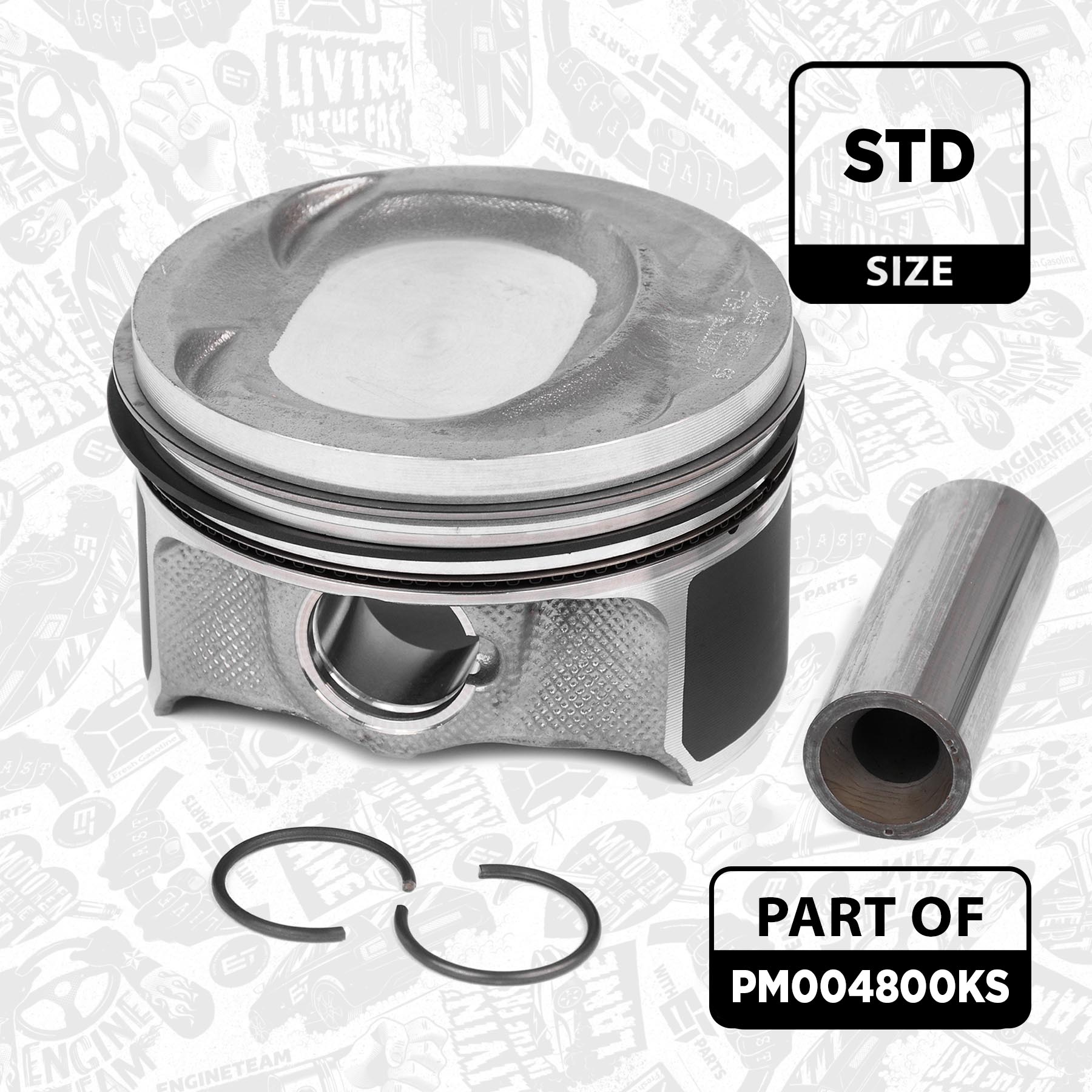

Piston kit - PM004800KS ET ENGINETEAM - 03C107065AP, 03C107065AP001, 03C107065AP003
Car: 40477600S Skoda Octacia, VW Golf Passat Audi Seat 1,4 TSI CAXA CAXC 2007+
| Tag: | boxET – service kit |
| Component Number: | 40477600 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 76,51 mm |
| Recess Depth 1 [mm]: | 4,6 mm |
| Standard Size [STD]: | yes |
| Piston Protrusion [mm]: | 2 mm |
| Bolt Length [mm]: | 52 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,2 mm |
| Valve Pocket Depth 1 [mm]: | 4 mm |
| Valve Pocket Depth 2 [mm]: | 2 mm |
| General Information: |
Includes components from Kolbenschmidt + Elring Includes components from Kolbenschmidt + Elring [Show less] |
Where to buy?
EAN: 8592779021055
Piston Set ET ENGINETEAM PM004800KS for vehicles Audi, Seat, Škoda and Volkswagen with engines 1.4 TFSI and 1.4 TSI, years 2007–2018. Bolt Ø 19 mm, Cyl.Bore 76.51 mm, Recess Depth (Grove) 4.6 mm, Piston Protrusion 2 mm, Bolt Length 52 mm, with piston ring, Compression Height 29.2 mm, Valve Pocket Depth 4 mm and 2 mm. Intended for example for Audi A3 1.4 TFSI / Seat Altea 1.4 TSI / Škoda Octavia II 1.4 TSI / Volkswagen Golf VI 1.4 TSI and others. Engine codes CAXA, CAXC, CMSA, CNVA.
OE Component Nos.: 03C107065AP, 03C107065AP001, 03C107065AP003.
Set includes:
Automatically generated description. Please verify compatibility before ordering.
