Code: PM006325ET |
Title: Piston Set
Piston Set - PM006325ET ET ENGINETEAM
Car: ŠKODA-VW
| Tag: | boxET – service kit |
| Oversize [mm]: | 0,25 mm |
| Component Number: | PM006325 |
| Bolt Head Diameter [mm]: | 21 mm |
| Cylinder Bore [mm]: | 82,76 mm |
| Recess Depth 1 [mm]: | 6,2 mm |
| Bolt Length [mm]: | 56 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,6 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Recess Diameter [mm]: | 50 mm |
| Scope of Supply: |
includes components ET Engineteam + Elring + Kolbenschmidt includes components ET Engineteam + Elring + Kolbenschmidt [Show less] |
Where to buy?
EAN: 8592779021710

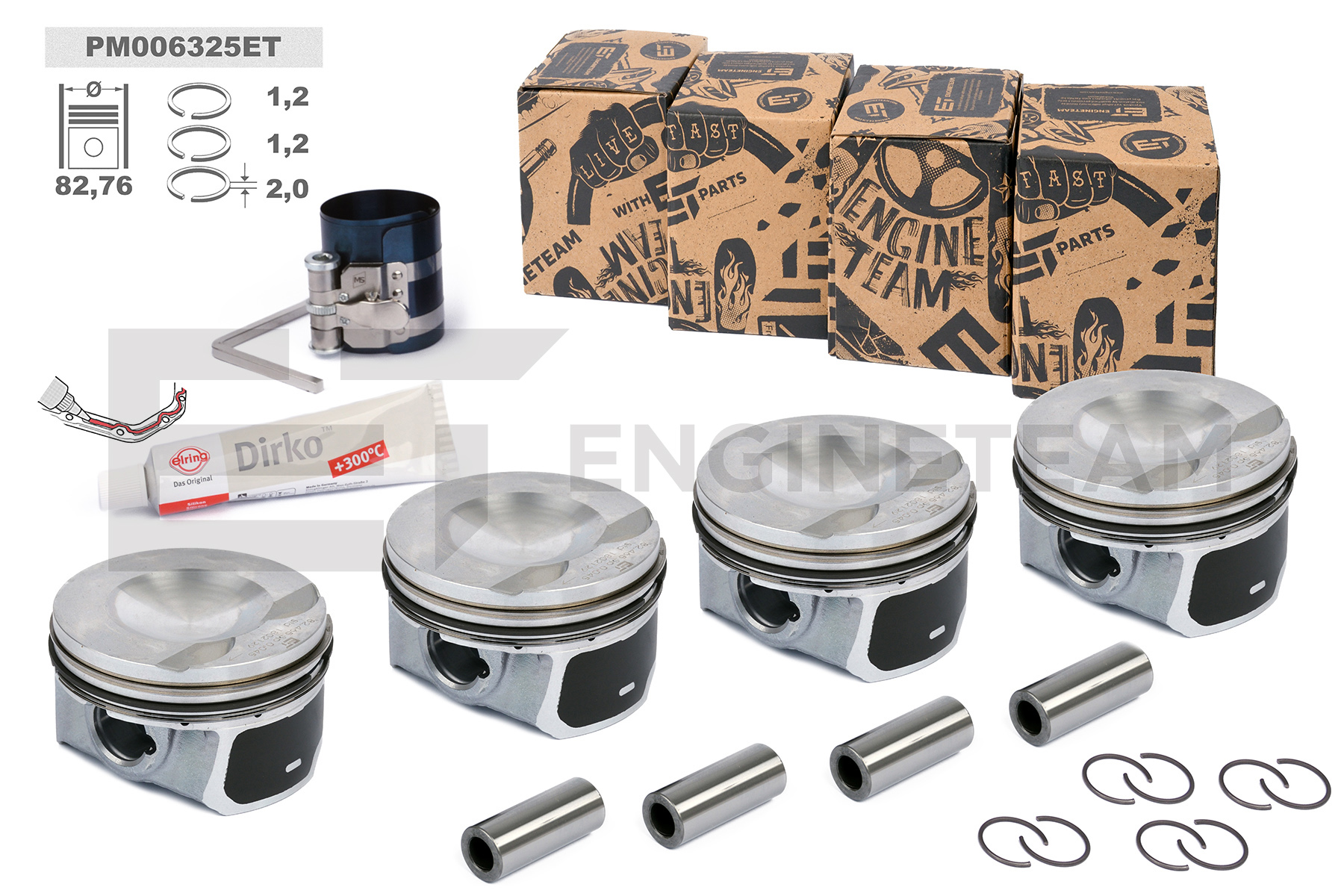

Piston Set ET ENGINETEAM PM006325 for vehicles Audi, Seat, Škoda and Volkswagen with engines 2.0 TFSI and 2.0 TSI, years 2004–2018. Oversize 0,25 mm, Bolt Ø 21 mm, Cyl.Bore 82,76 mm, Recess Depth (groove) 6,2 mm, Valve Pocket Depth 3 mm, Bolt Length 56 mm, Compression Height 29,6 mm, Recess Diameter 50 mm and it is supplied with a piston ring. Intended for example for Audi A3 2.0 TFSI / Seat Alhambra 2.0 TSI / Škoda Octavia II 2.0 TFSI / VW Golf V 2.0 GTI and others. Engine codes CADA, CAWB, CBFA, CCTA.
OE numbers:
Set contains:
Automatically generated description. Please verify compatibility before ordering.
Categories
Part type
Safety information
Reference Numbers
Parts list
General information
| Code: | PM006325 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 6,2 mm |
| Oversize [mm]: | 0,25 mm |
| Compression Height [mm]: | 29,6 mm |
| Cylinder Bore [mm]: | 82,76 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Diameter [mm]: | 50 mm |
| Bolt Length [mm]: | 56 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
Show all
Show less
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
General information
| Code: | ME0009 |
| Brand: | ET ENGINETEAM |
| Title: | Work gloves, brown stripe |
Criteria
| Material: | Polyester |
| Colour: | brown |
| Stock: | > 25 pcs |
Alternatives
General information
| Code: | PM006325KS |
| Brand: | ET ENGINETEAM |
| Title: | Piston kit |
| Tag: | boxET – service kit |
| Car: | 40247610S |
Criteria
| Oversize [mm]: | 0,25 mm |
| Component Number: | 4x 40247610 |
| Bolt Head Diameter [mm]: | 21 mm |
| Cylinder Bore [mm]: | 82,76 mm |
| Recess Depth 1 [mm]: | 6,2 mm |
| Bolt Length [mm]: | 56 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,6 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
| Recess Diameter [mm]: | 50 mm |
| General Information: | Includes components from Kolbenschmidt + Elring |
Show all
Show less
General information
| Code: | PM006325 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda Superb Octavia, VW Golf Tiguan 2,0TFSi CCZA CCZB 2006+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 6,2 mm |
| Oversize [mm]: | 0,25 mm |
| Compression Height [mm]: | 29,6 mm |
| Cylinder Bore [mm]: | 82,76 mm |
| Bolt Head Diameter [mm]: | 21 mm |
| Recess Diameter [mm]: | 50 mm |
| Bolt Length [mm]: | 56 mm |
| Valve Pocket Depth 1 [mm]: | 3 mm |
Show all
Show less
