Code: PM009000ET |
Title: Piston Set + conrods
Piston Set + conrods - PM009000ET ET ENGINETEAM - 06H107065DL, 06J198401H, 06H107065BS
Car: ŠKODA-VW
| Tag: | boxET – service kit |
| Bolt Head Diameter [mm]: | 23 mm |
| Cylinder Bore [mm]: | 82,51 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Length [mm]: | 51 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,8 mm |
| For OE number: | 06H107065DL |
| For OE number: | 06J198401H |
| Scope of Supply: |
includes components ET Engineteam + Elring includes components ET Engineteam + Elring [Show less] |
| Stock: | 14 pcs |
Where to buy?
EAN: 8592779025879

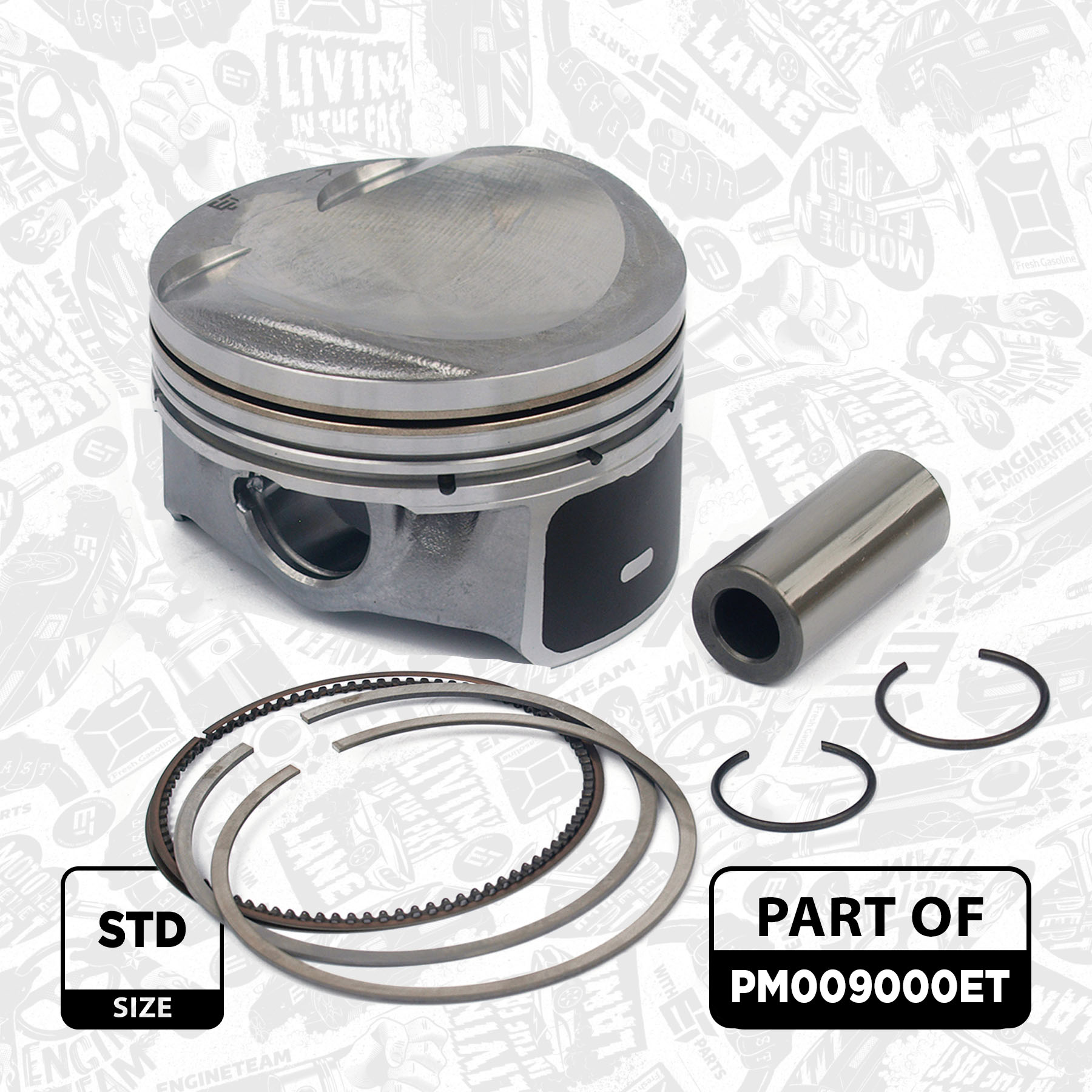

Complete piston repair kit ET Engineteam which contains4x ET piston PM006900 with a pin of 23mm diameter, 4x ET connecting rods OM0037, 1x mounting gel 120000416353, 1x liquid gasket Elring 030.792. This kit is desgined for Audi A3, Audi A4, Audi TT Seat Altea, Seat Toledo, Seat Exeo, Seat Alhambra, VW Passat, VW CC, VW Golf VI, Škoda Octavia II, Škoda Superb, Škoda Yeti cars, manufactured since 2008+. Engine codes CDAA, CDAB, CDHA. CDHB.
OE : 06J198401H, 06H107065DL
Categories
Safety information
Reference Numbers
- VW # 06H107065DL
- VW # 06J198401H
- VW # 06J 198 401H
- VW # 06H 107 065DL
- VW # 06H 107 065 DL
- VW # 06J 198 401 H
- VW # 06H 107 065 BS
- VW # 06H 107 065BS
- VW # 06H107065BS
- VW # 06H 107 065 BF
- VW # 06H 107 065BF
- VW # 06H107065BF
- VW # 06H 107 065 DF
- VW # 06H 107 065DF
- VW # 06H107065DF
- VW # 06H 107 065 CP
- VW # 06H 107 065CP
- VW # 06H107065CP
- ET ENGINETEAM # PM009000ET
Parts list
General information
| Code: | PM006900 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda Superb Octavia Yeti, VW Passat Sharan, Seat Audi CDAA CDAB 2008+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 4,75 mm |
| Compression Height [mm]: | 29,8 mm |
| Cylinder Bore [mm]: | 82,51 mm |
| Bolt Head Diameter [mm]: | 23 mm |
| Bolt Length [mm]: | 51 mm |
| For OE number: | 06H107065DL |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
General information
| Code: | ME0009 |
| Brand: | ET ENGINETEAM |
| Title: | Work gloves, brown stripe |
Criteria
| Material: | Polyester |
| Colour: | brown |
| Stock: | > 25 pcs |
General information
| Code: | OM0037 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | Audi Seat Skoda VW A3 Sportback TT Roadster Altea XL Octavia II Superb II Yeti Golf 1,8 TSI CDAA CDHB 2010+ |
Criteria
| Tightening Torque [Nm]: | 50 Nm |
| Diameter of large connecting rod big end [mm]: | 50,6 mm |
| Dia. of small connecting rod big end (with bushing) [mm]: | 23 mm |
| Hole Spacing [mm]: | 111,2 mm |
| Processing: | Forged |
| Processing: | cracked |
| Connecting Rod Design: | Trapezoidal Connecting Rod |
Show all
Show less
| Stock: | > 25 pcs |
