Code: RS0103 |
Title: Timing Chain Kit
Timing Chain Kit - RS0103 ET ENGINETEAM - 03C198229C, 03C109158H, 03C109507BD
Car: Audi Seat Škoda VW A1 A3 Altea Toledo Fabia Rapid Superb Eos Golf Tiguan CAXA 1,4 TFSI 2008+
| Tag: | boxET – service kit |
| Chain Type: | Silent Chain |
| Chain Type: | Closed chain |
| For OE number: | 03C198229C |
| Number of Teeth: | 19 |
| Number of Teeth: | 18 |
| General Information: |
All parts of the timing chain kit must be
installed All parts of the timing chain kit must be
installed [Show less] |
| Stock: | > 25 pcs |
Where to buy?
EAN: 8592779033829
ET Engineteam timing chain kit for VAG 1.4 TSI vehicles. It is a kit of components corresponding to the OE 03C105229C version. All components of the kit must be exchanged during the installation. This kit contains gear 03C 105 209 BD with 19/18 teeth. Suitable for Audi A1 / A3, Seat Toledo / Leon / Altea, Škoda Yeti / Rapid / Octavia, VW Tiguan / Passat / Jetta with engine codes CAXA, CNVA, CAXC, CMSA.

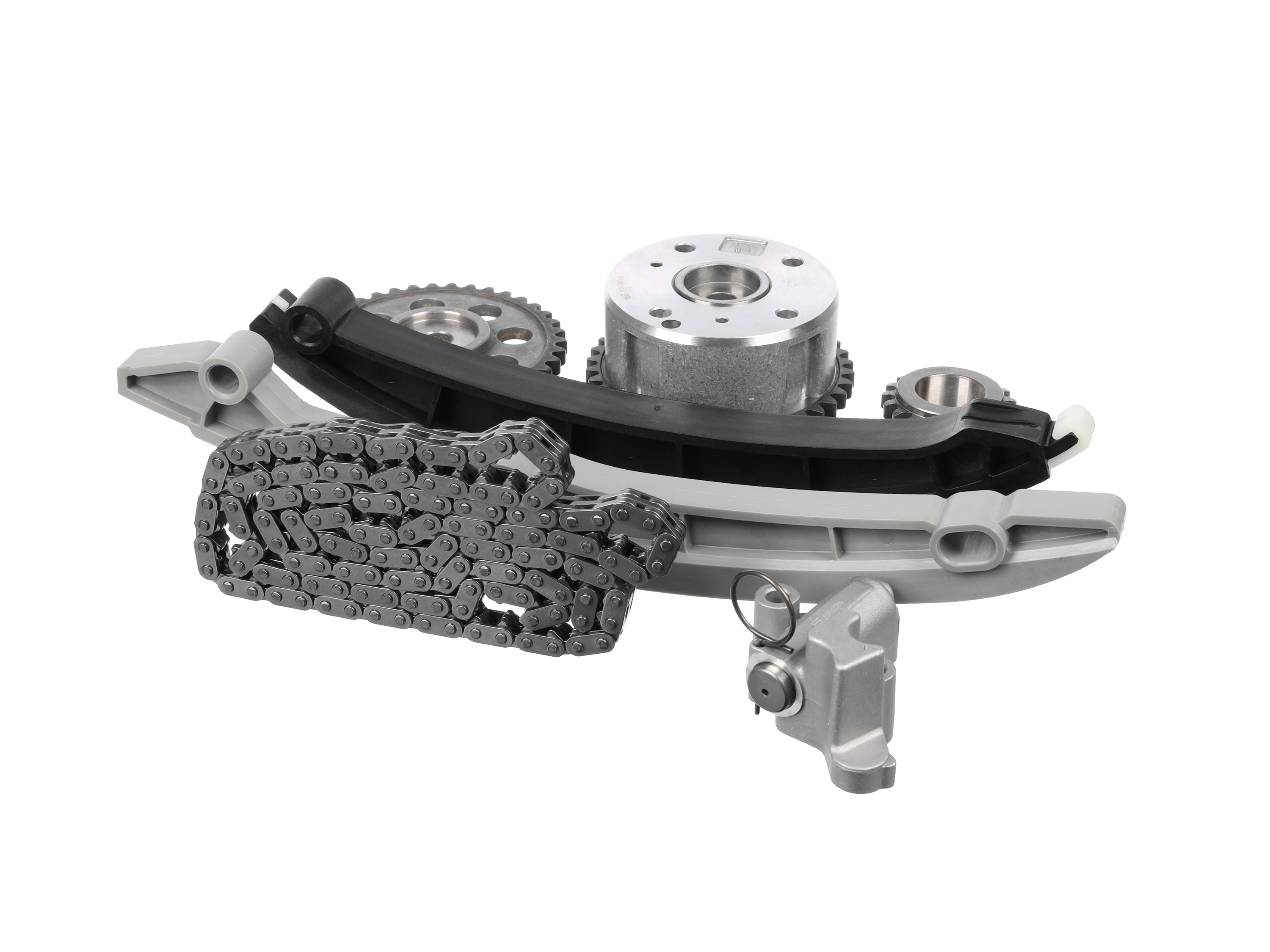

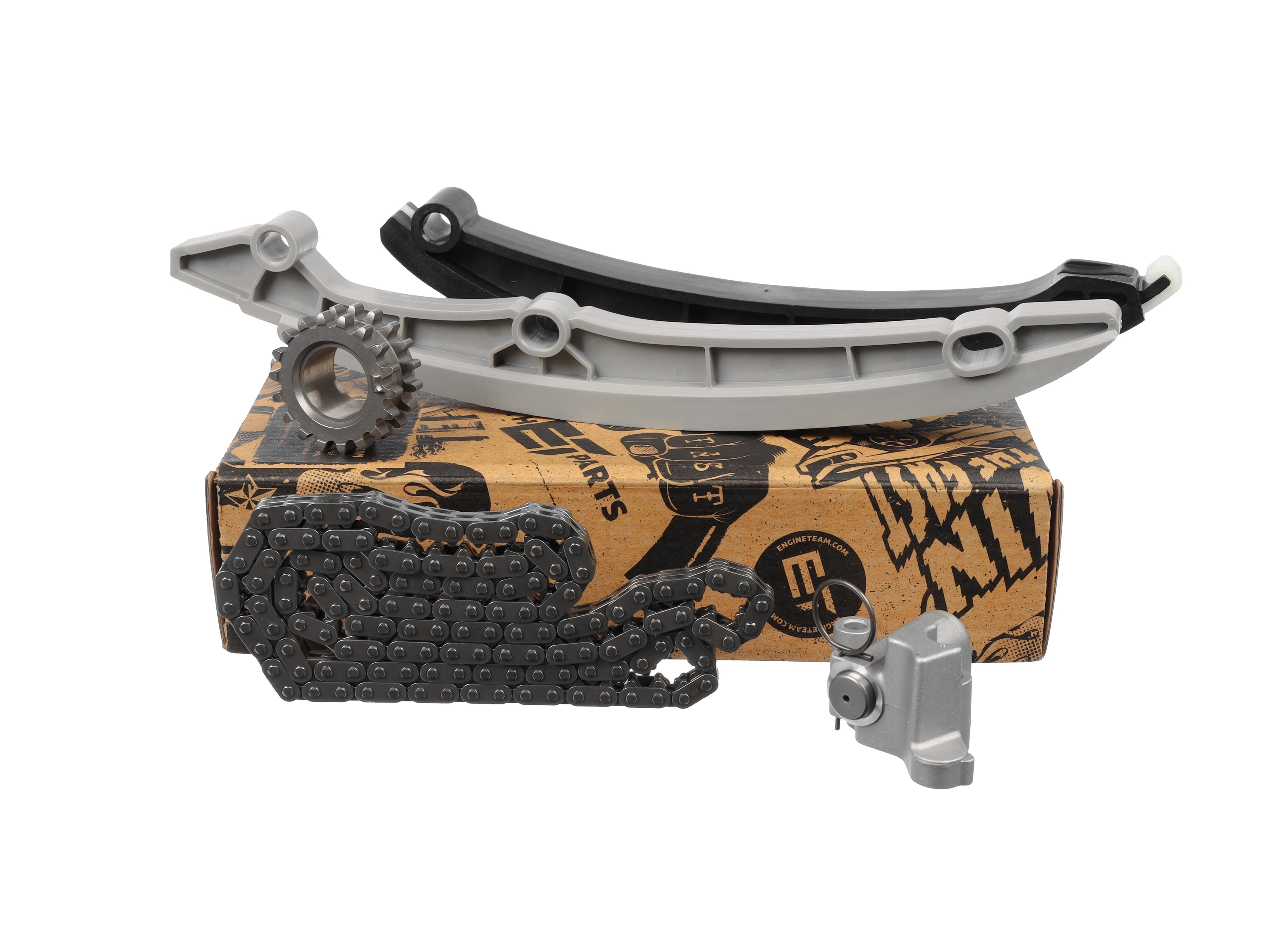

Kit contents / corresponds to OE 03C105229C

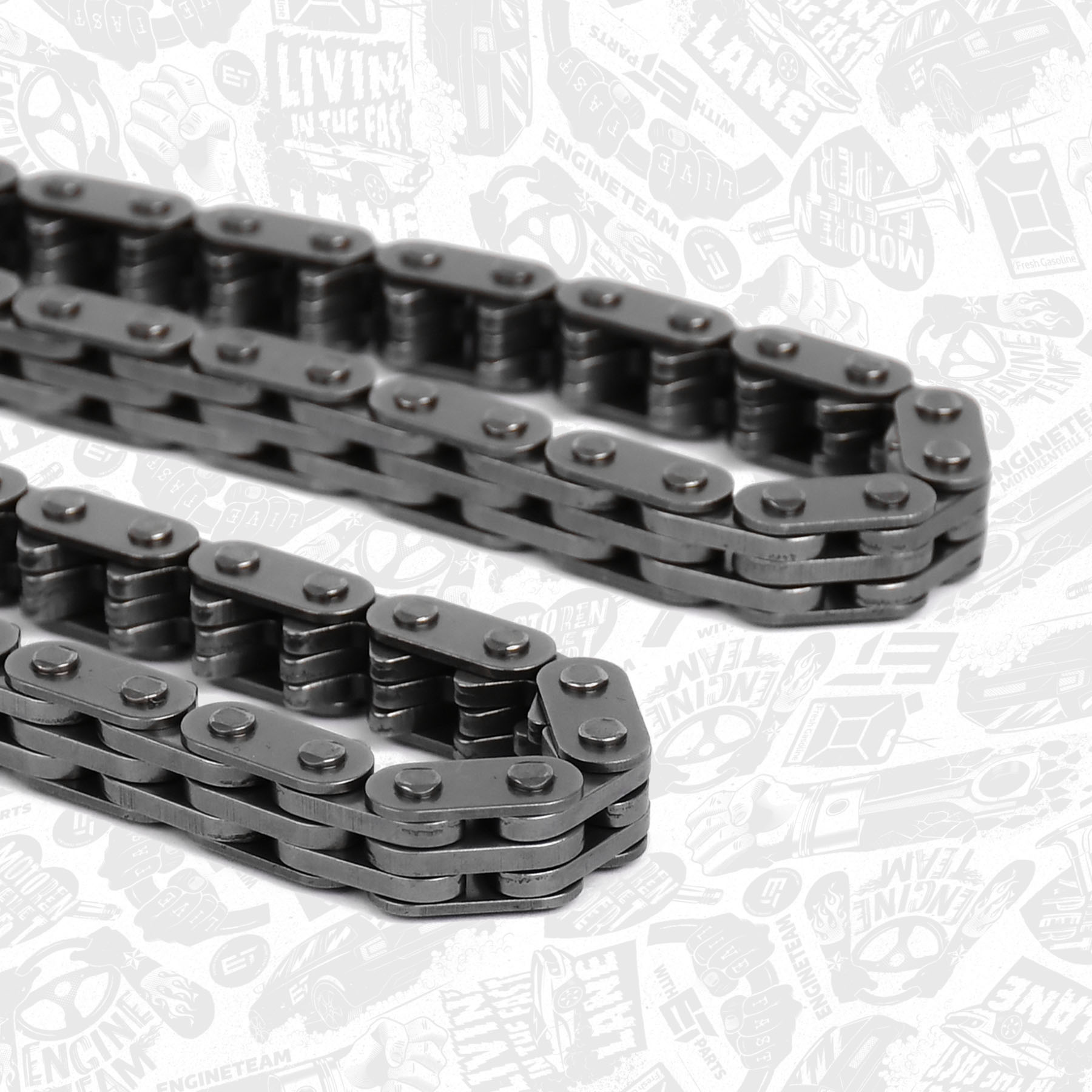

- Timing chain 03C 109 158 H

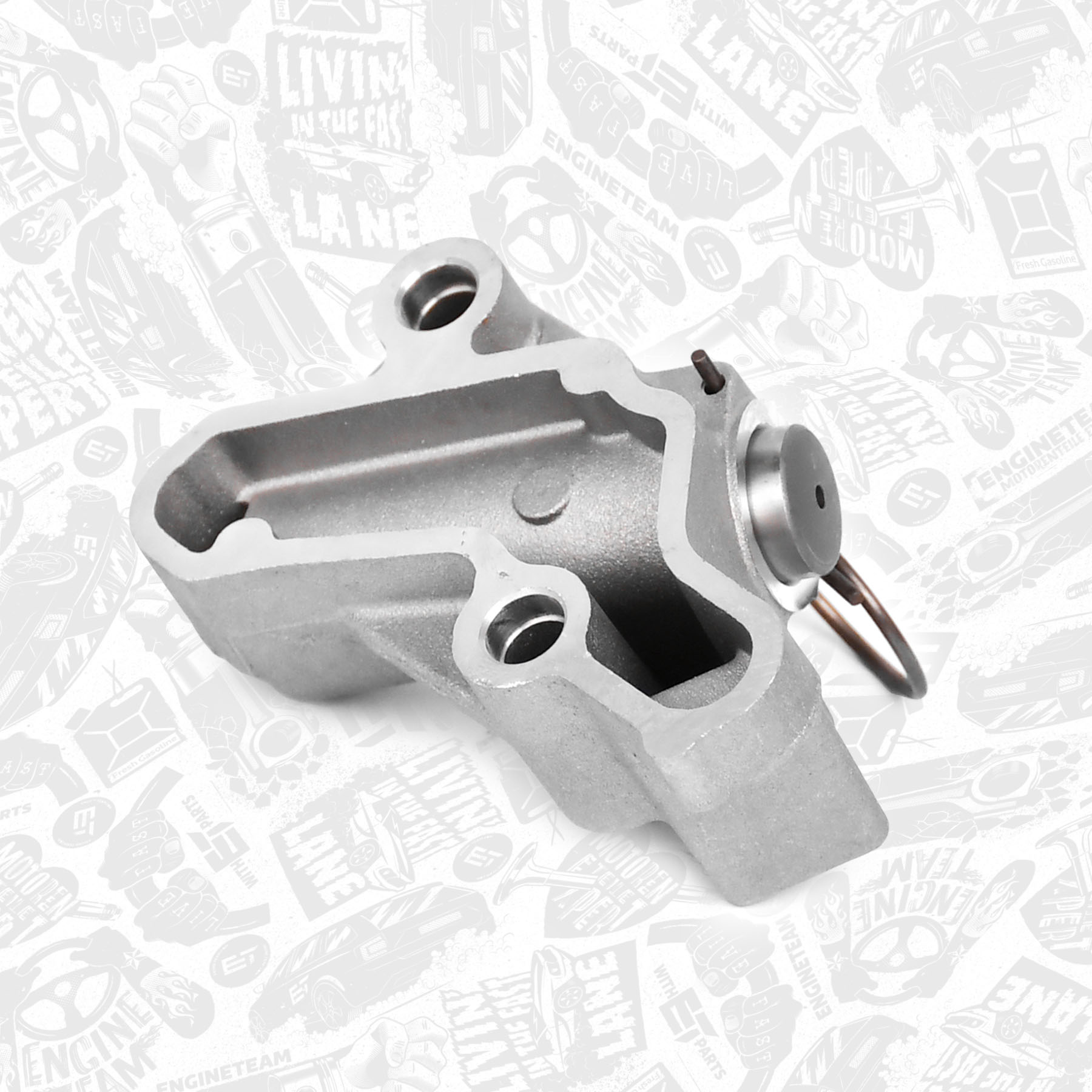

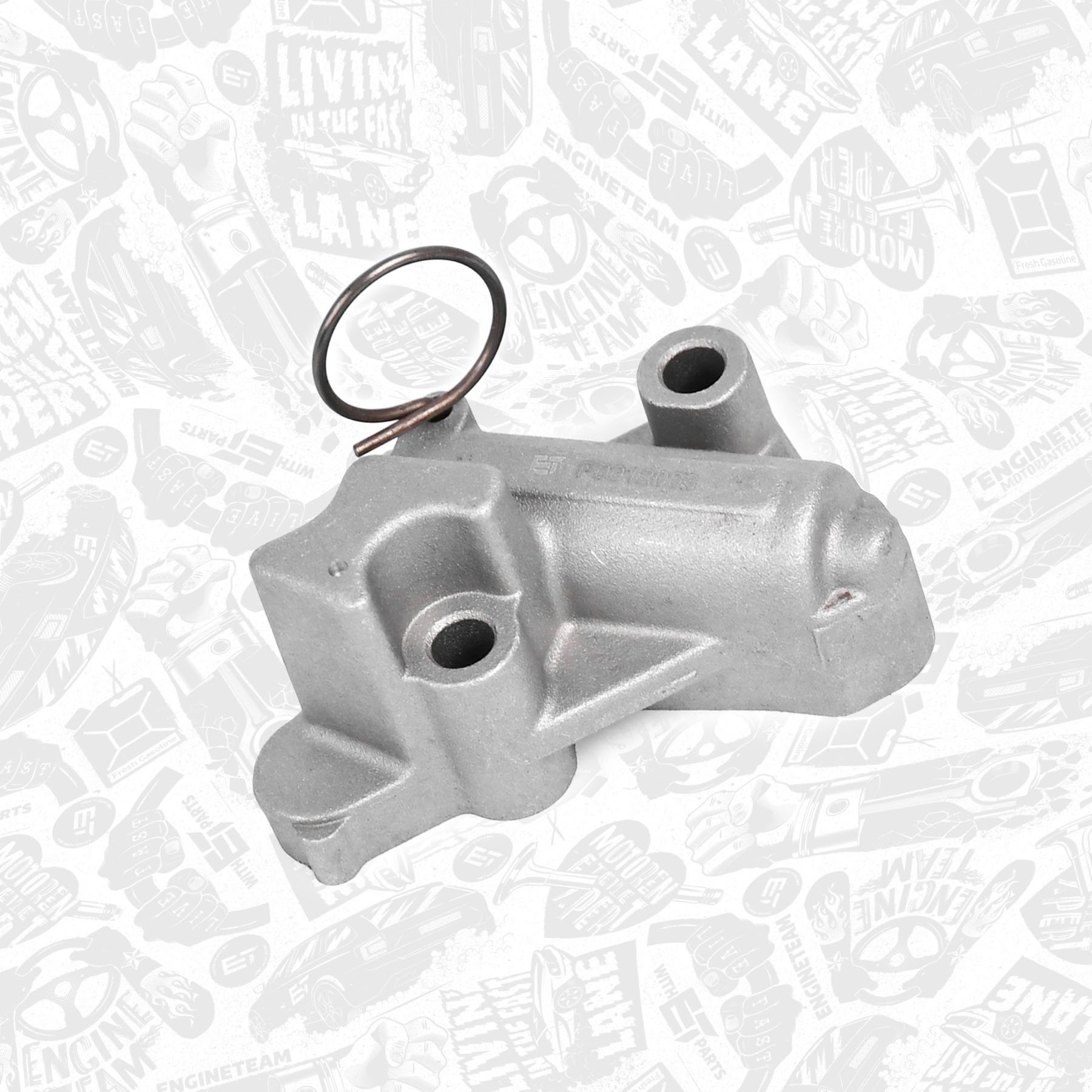

- Tensioner 03C 109 507 BD
- Gear 03C 109 571 K

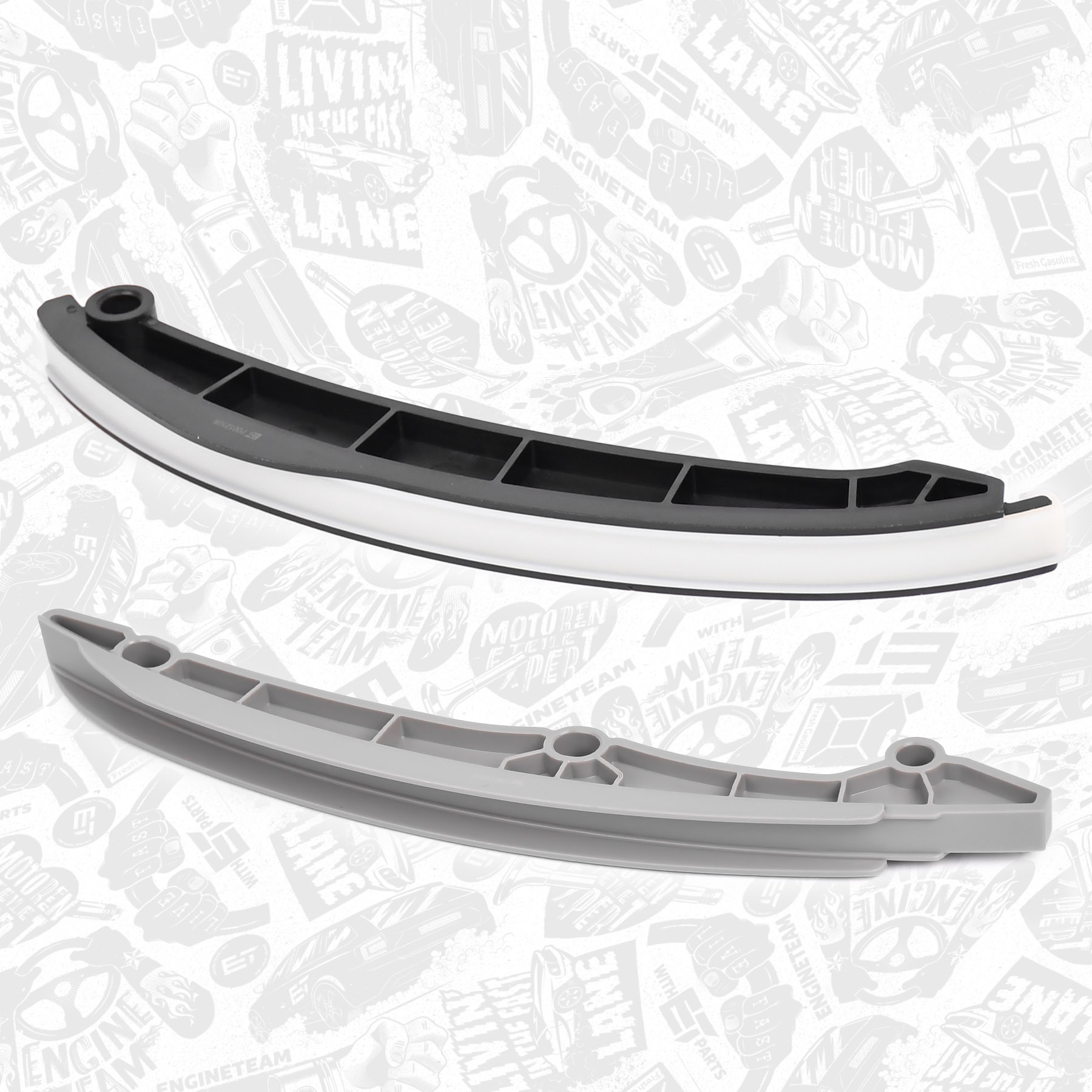

- Guide rail 03C 109 509 AA
- Guide rail 03C 109 469 R

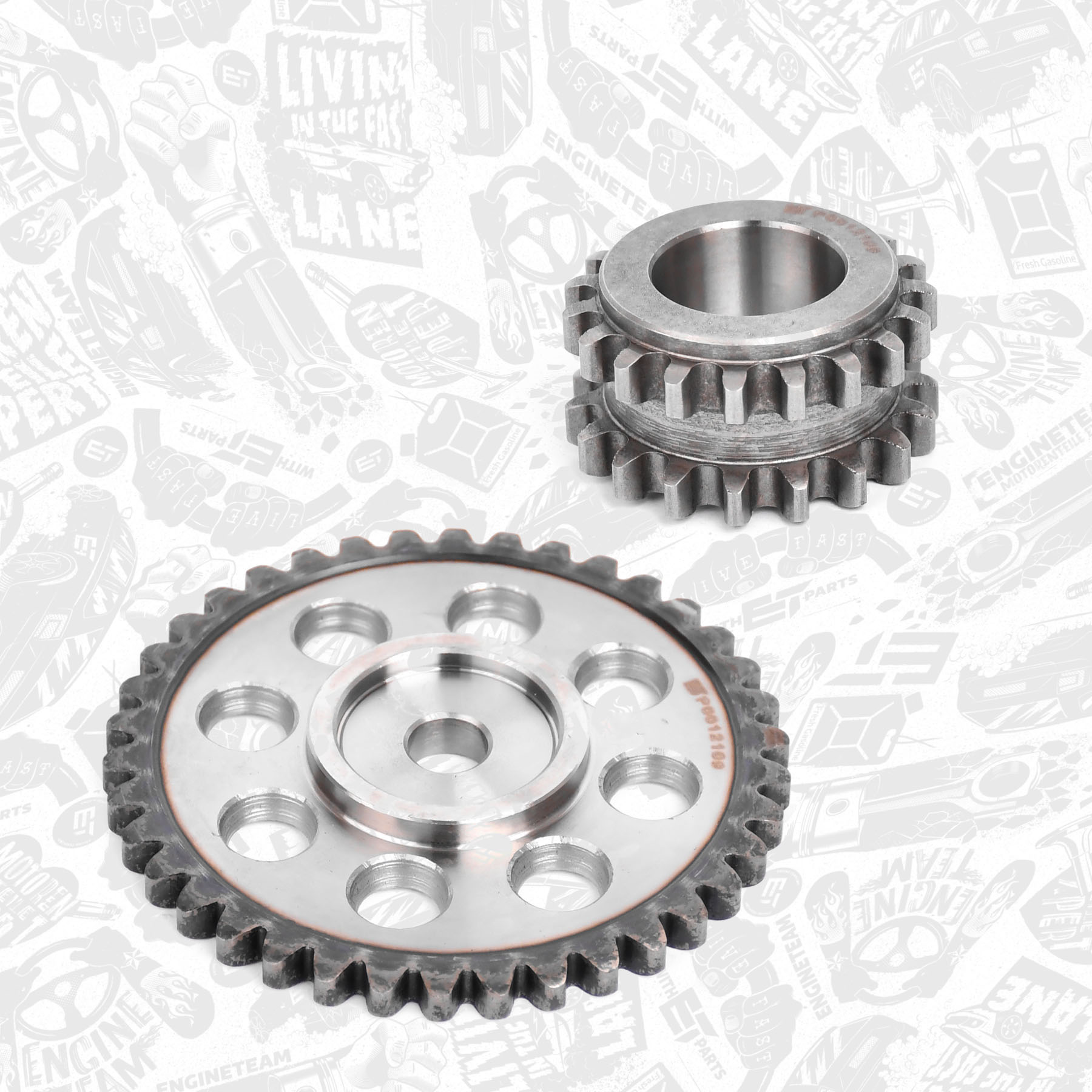

- Gear 19/18 teeth 03C 105 209 BD

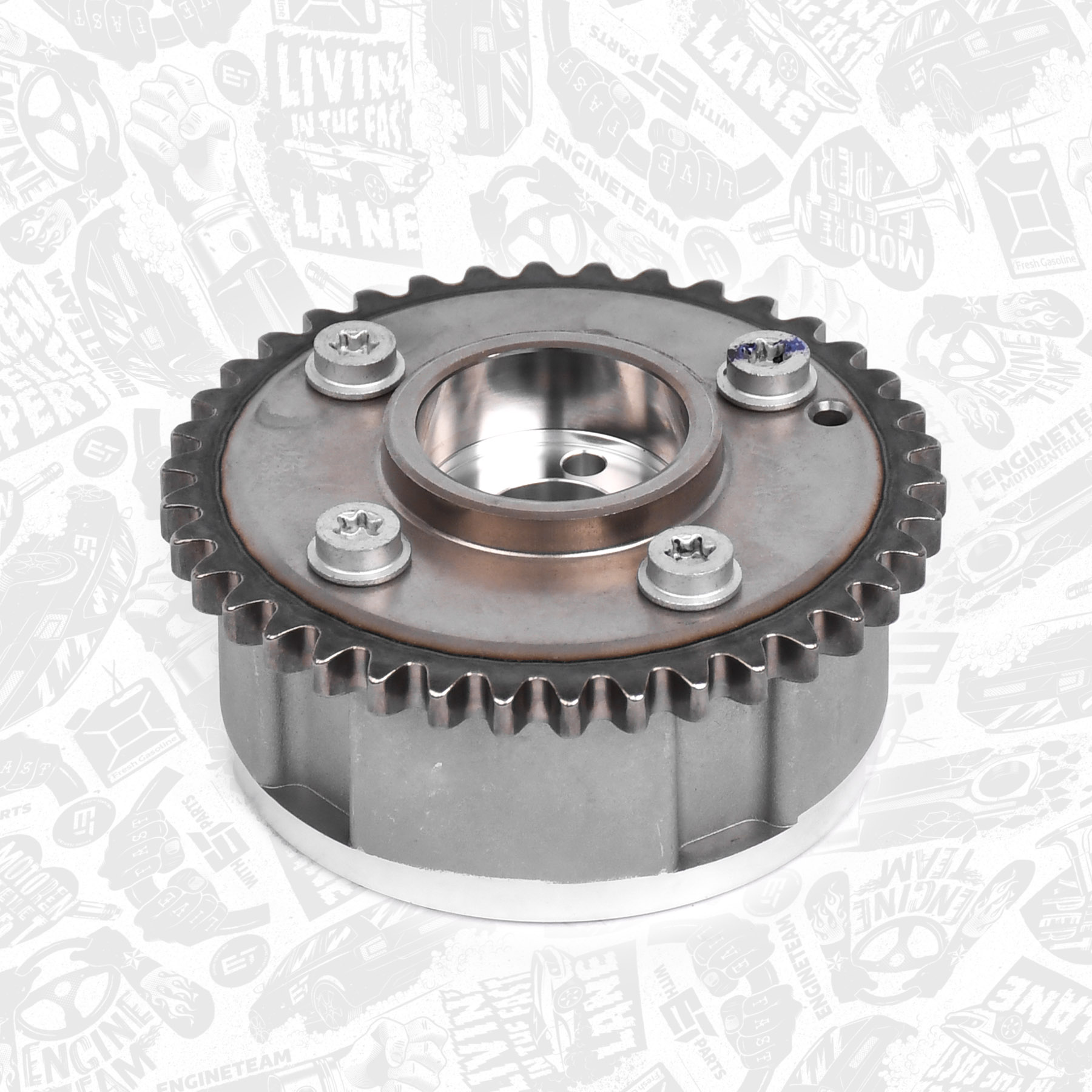

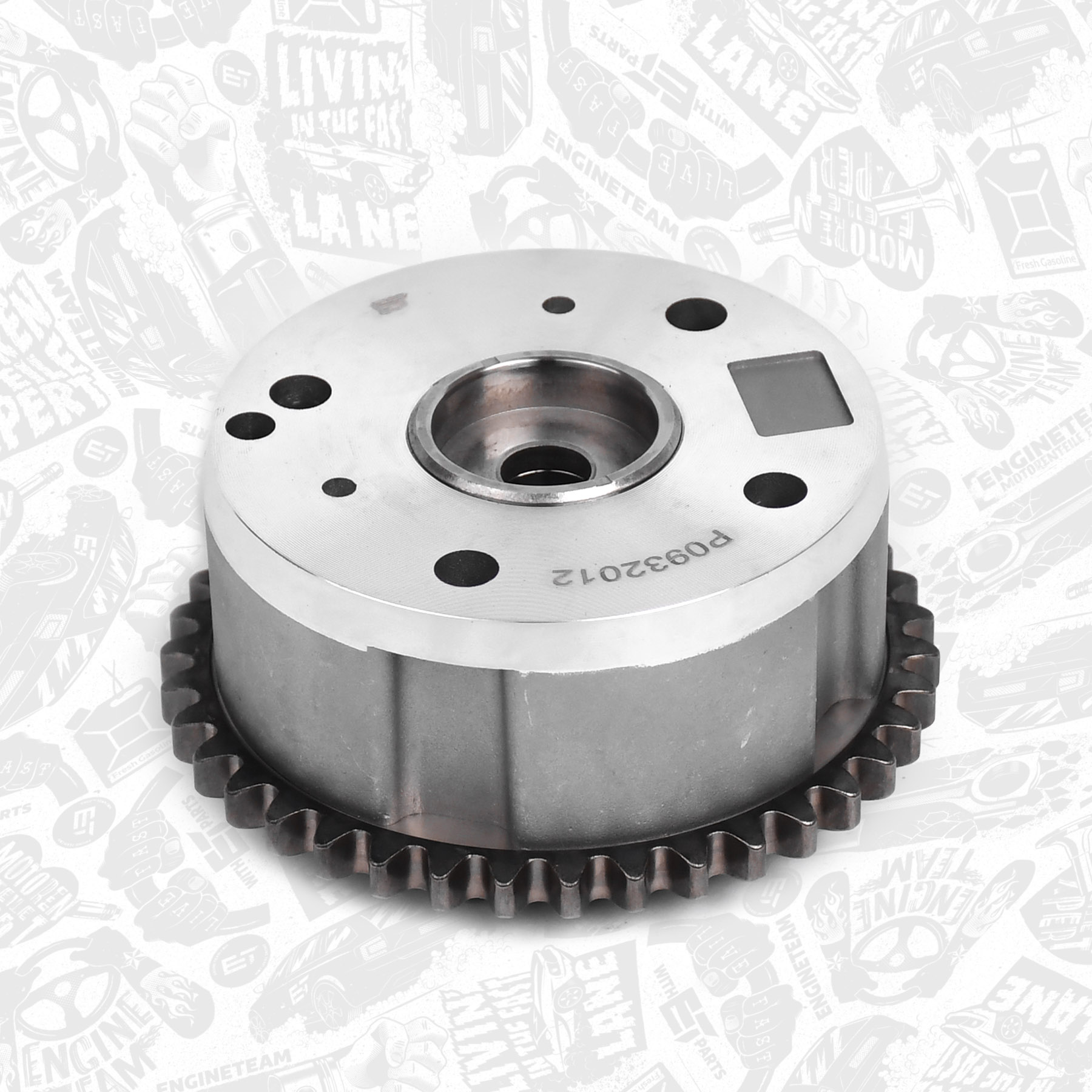

- Camshaft adjuster 03C 109 088 G
Documents
Categories
Safety information
Reference Numbers
- VW # 03C198229C
- VW # 03C 198 229C
- VW # 03C 198 229 C
- VW # 03C109158H
- VW # 03C 109 158H
- VW # 03C 109 158 H
- VW # 03C109507BD
- VW # 03C 109 507BD
- VW # 03C 109 507 BD
- VW # 03C109509AA
- VW # 03C 109 509AA
- VW # 03C 109 509 AA
- VW # 03C109469R
- VW # 03C 109 469R
- VW # 03C 109 469 R
- VW # 03C109571K
- VW # 03C 109 571K
- VW # 03C 109 571 K
- VW # 03C105209BD
- VW # 03C 105 209BD
- VW # 03C 105 209 BD
- VW # 03C109088G
- VW # 03C 109 088G
- VW # 03C 109 088 G
- ET ENGINETEAM # RS0103
Is a part of
General information
| Code: | PM004800ETVR3 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Set + conrods + Timing chain kit |
| Tag: | boxET – service kit |
| Car: | Skoda Superb, VW Passat, Seat Toledo, Audi A3 1,4 TSI CAXA CAXC 2007+ |
Criteria
| Component Number: | 4x PM004800 |
| Component Number: | RS0103 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 76,51 mm |
| Recess Depth 1 [mm]: | 4,6 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 52 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,2 mm |
| General Information: | includes components ET Engineteam + Elring |
| General Information: | All parts of the timing chain kit must be installed |
Show all
Show less
| Stock: | 5 pcs |
General information
| Code: | PM004800ETVR4 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Set |
| Tag: | boxET – service kit |
| Car: | Audi Seat Skoda VW Passat Golf Jetta Altea Altea XL EOS Octavia Yeti Superb Leon ALtea XL TOledo A1 A3 CAXA 1,4 TSi/TFSI 2007+ |
Criteria
| Component Number: | 4x PM004800 |
| Component Number: | RS0103 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 76,51 mm |
| Recess Depth 1 [mm]: | 4,6 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 52 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info: | with mounting tool |
| Compression Height [mm]: | 29,2 mm |
| General Information: | includes components ET Engineteam + Elring |
Show all
Show less
| Stock: | 5 pcs |
General information

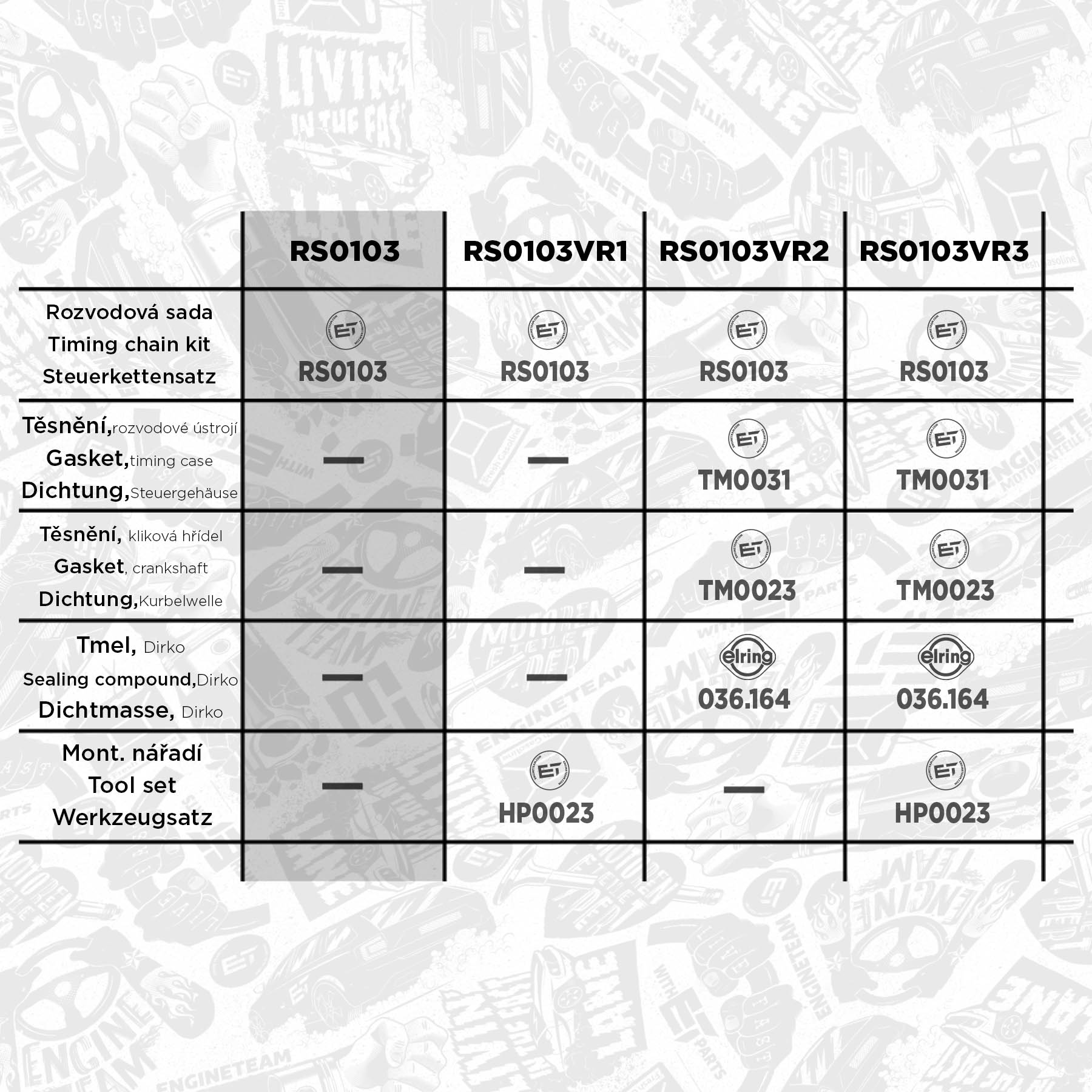

| Code: | RS0103VR2 |
| Brand: | ET ENGINETEAM |
| Title: | Timing Chain Kit |
| Tag: | boxET – service kit |
| Car: | Audi Seat Škoda VW A1 A3 Altea Toledo Fabia Rapid Superb Eos Golf Tiguan CAXA 1,4 TFSI 2008+ |
Criteria
| Supplementary Article/Supplementary Info: | with crankshaft seal |
| Supplementary Article/Supplementary Info: | with gaskets/seals |
| Chain Type: | Silent Chain |
| Chain Type: | Closed chain |
| Number of Teeth: | 19 |
| Number of Teeth: | 23 |
| General Information: | All parts of the timing chain kit must be installed |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | RS0103VR3 |
| Brand: | ET ENGINETEAM |
| Title: | Timing Chain Kit |
| Tag: | boxET – service kit |
| Car: | Audi Seat Škoda VW A1 A3 Altea Toledo Fabia Rapid Superb Eos Golf Tiguan CAXA 1,4 TFSI 2008+ |
Criteria
| Supplementary Article/Supplementary Info: | with mounting tool |
| Supplementary Article/Supplementary Info: | with crankshaft seal |
| Supplementary Article/Supplementary Info: | with gaskets/seals |
| Chain Type: | Silent Chain |
| Chain Type: | Closed chain |
| Number of Teeth: | 19 |
| Number of Teeth: | 23 |
| General Information: | All parts of the timing chain kit must be installed |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | RS0103VR4 |
| Brand: | ET ENGINETEAM |
| Title: | Timing chain kit |
| Car: | Audi Seat Škoda VW A1 A3 Altea Toledo Fabia Rapid Superb Eos Golf Tiguan CAXA 1,4 TFSI 2008+ |
General information
| Code: | RS0103VR5 |
| Brand: | ET ENGINETEAM |
| Title: | Timing chain kit |
| Car: | Audi Seat Škoda VW A1 A3 Altea Toledo Fabia Rapid Superb Eos Golf Tiguan CAXA 1,4 TFSI 2008+ |
General information
| Code: | PM004800KSVR2 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Set |
| Tag: | boxET – service kit |
| Car: | Audi Seat Skoda VW Passat Golf Jetta Altea Altea XL EOS Octavia Yeti Superb Leon ALtea XL TOledo A1 A3 CAXA 1,4 TSi/TFSI 2007+ |
Criteria
| Component Number: | 4x 40477600 |
| Component Number: | RS0103 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 76,51 mm |
| Recess Depth 1 [mm]: | 4,6 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 52 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info: | with mounting tool |
| Compression Height [mm]: | 29,2 mm |
| General Information: | Includes components from Kolbenschmidt + Elring |
Show all
Show less
