Timing Chain Kit - RS0042VR1 ET ENGINETEAM - 03F198158B, 03F198158, 03F198158A
Car: Audi A1, Skoda Fabia Rapid Yeti Roomster, VW Cady Golf CBZA CBZB 2011+
| Supplementary Article/Supplementary Info: | with cylinder head gasket |
| Supplementary Article/Info 2: | with bolts |
| Scope of Supply: |
includes components OE + ET Engineteam + Kolbenschmidt +
Elring includes components OE + ET Engineteam + Kolbenschmidt +
Elring [Show less] |
| Stock: | 5 pcs |
EAN: 8592779034253
ET Engineteam advanced timing chain kit including genuine OE components. Contains sealing compound, housing cleaner, complete Kolbenschmidt pistons, TRW valves, cylinder head bolts, cylinder head gasket and piston mounting tool. Suitable for Audi A1, VW Golf VI, Seat Ibiza V, Škoda Fabia with CBZA and CBZB engines.
The 1.2 TSI 63 kW engines in particular often suffered from failures of the timing system. There was a risk of chain skip during cold starts with insufficient chain tension. That resulted in unsynchronised movement of valves and pistons which lead to engine damage. The timing chain kit RS0042 from ET Engineteam resolves this problem.
Problems usually occur after 40-60 thousands kms. If you want to be on the safe side, we recommend changing the timing components after 40 thousands kms.
RS0042VR1 kit includes:

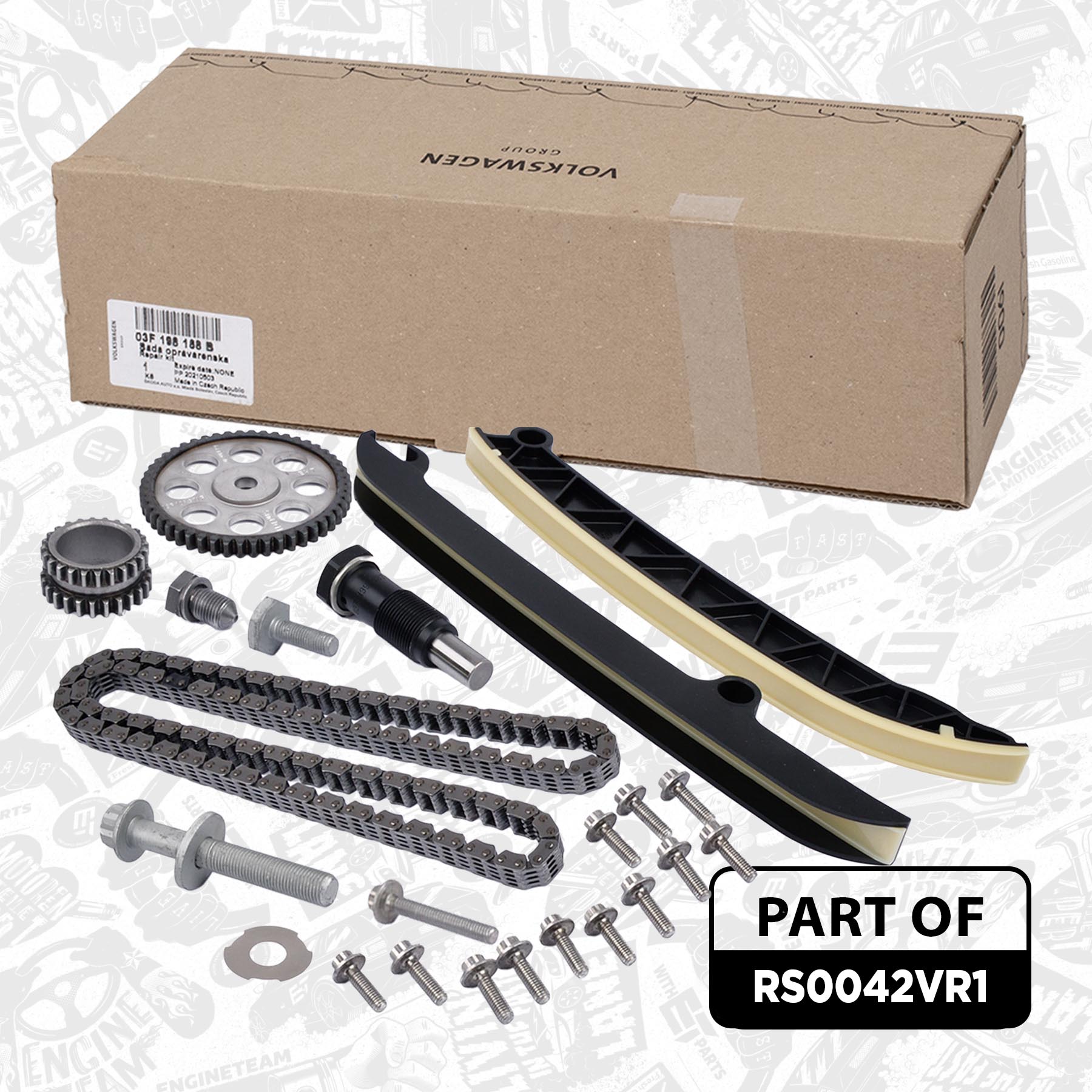

- Timing chain kit OE 03F198158B
- 4x complete piston Kolbenschmidt 41257600

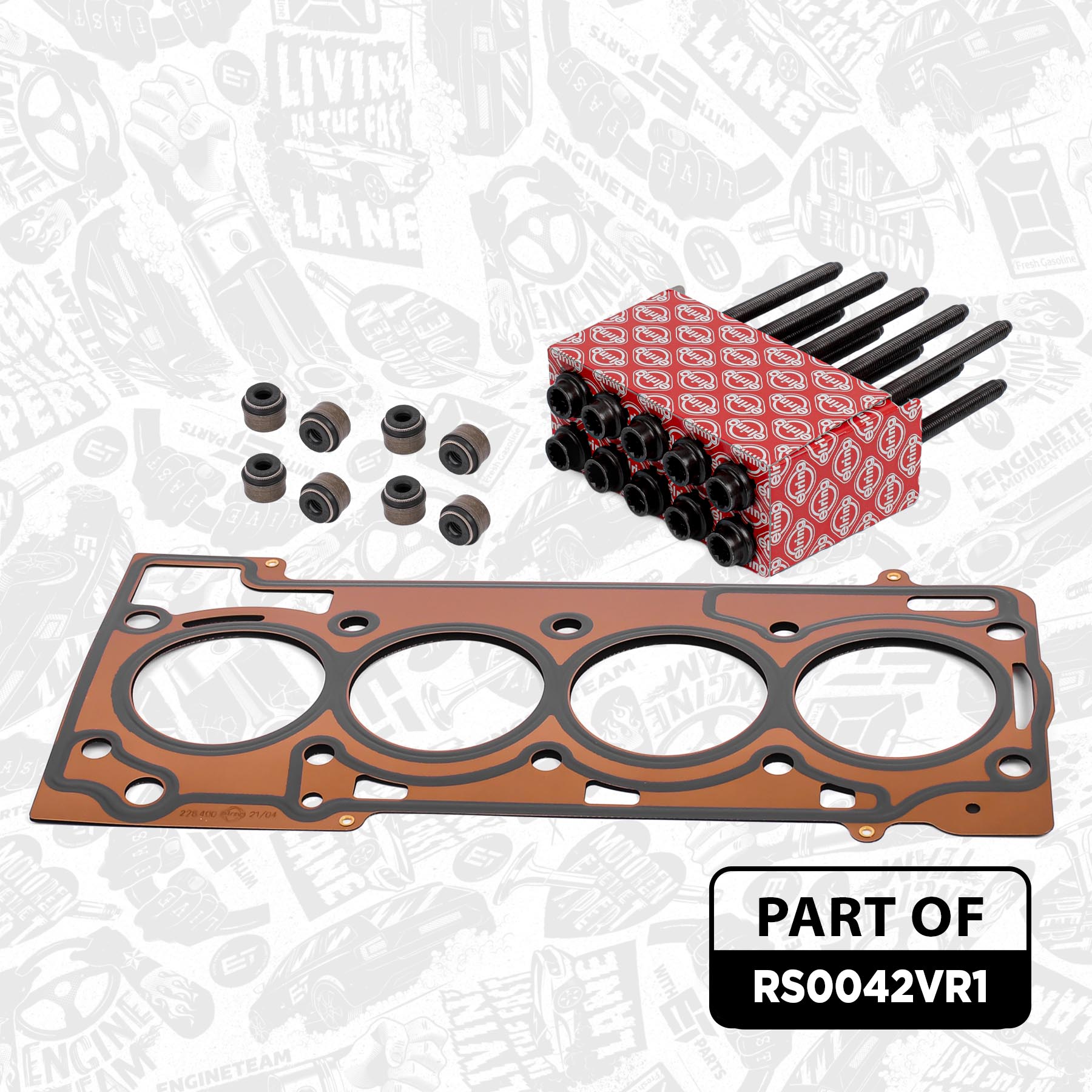

- Cylinder head gasket Elring 228.400
- Cylinder head bolts Elring 228.470 (10 pcs)
- 4x exhaust valve TRW 331161
- 4x inlet valve TRW 331153
- 8x valve stem seal Elring 724.590

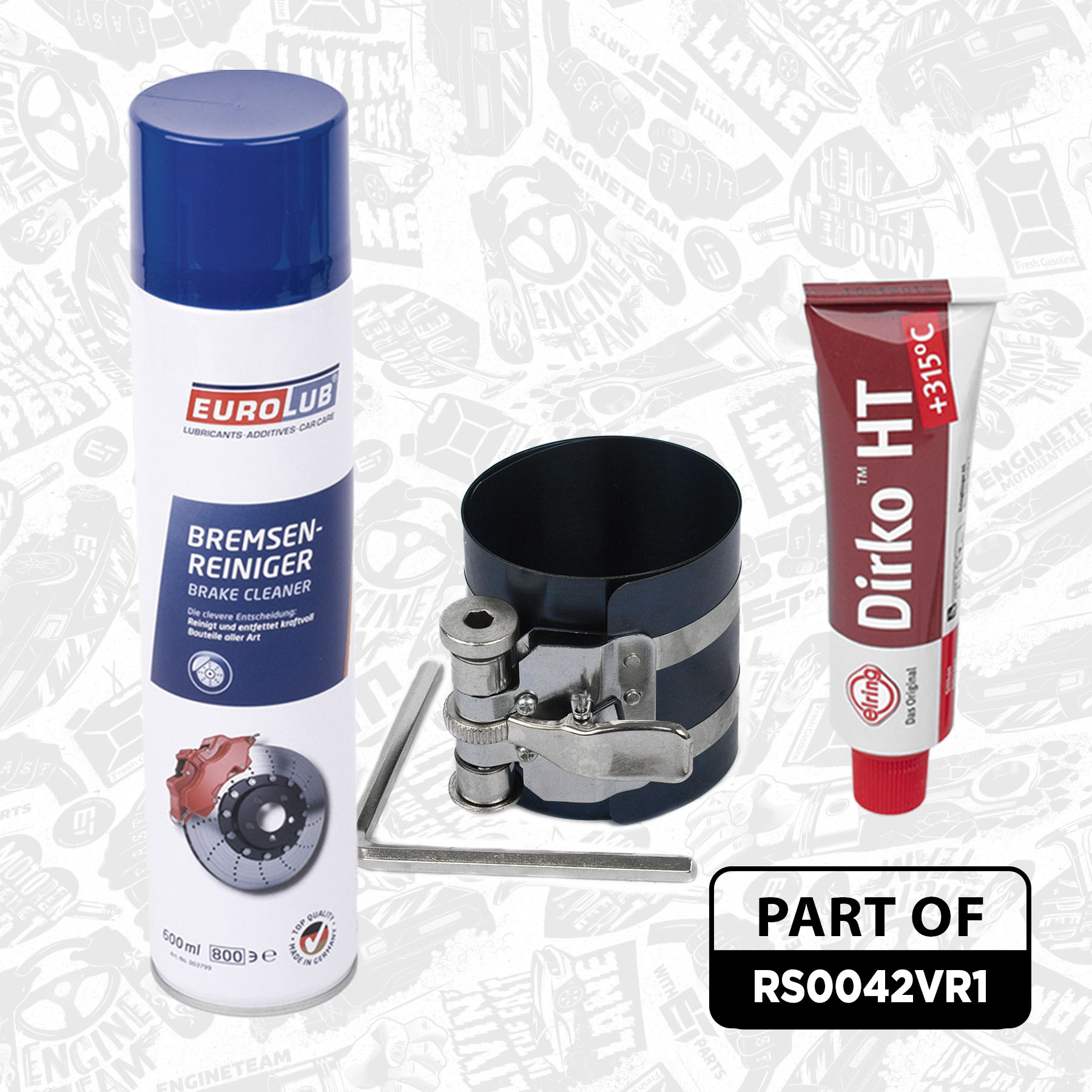

- Mounting device PKW ET Engineteam HP0009
- Sealing substance Elring 705.708
- Cleaner HUNOLD EU003799
Documents
Categories
Reference Numbers
- VW # 03F198158B
- VW # 03F198158
- VW # 03F198158A
- VW # 03F198229A
- VW # 03F 198 158 B
- VW # 03F 198 158
- VW # 03F 198 158 A
- VW # 03F 198 229 A
- VW # 03F109158G
- VW # 03F 109 158 G
- VW # 03F105209G
- VW # 03F 105 209 G
- VW # 03F109469E
- VW # 03F 109 469 E
- VW # 03F109509F
- VW # 03F 109 509 F
- VW # 03F109571F
- VW # 03F 109 571 F
- VW # 03F109507F
- VW # 03F 109 507 F
- VW # 03F109158J
- VW # 03F 109 158 J
- VW # N90987302
- VW # N10734501
- VW # N10734401
- VW # N90813202
- VW # WHT004724
- VW # 03F 107 065 F
- VW # 03F107065F
- VW # 03F 107 065F
- VW # 03F 107 065 G
- VW # 03F107065G
- VW # 03F107065A
- VW # 03F 107 065 A
- VW # 03F107065D
- VW # 03F 107 065 D
- VW # 03F 103 383 E
- VW # 03F 103 383E
- VW # 03F103383E
- VW # WHT 004 790
- VW # 03F109611B
- VW # 03F109611C
- VW # 03F 109 611 B
- VW # 03F 109 611 C
- VW # 03F109601A
- VW # 03F 109 601 A
- VW # 06B 109 675 B
- VW # 06K 109 675
- VW # 036 109 675 A
- VW # 06J 105 675
- VW # 03F 109 158 K
- VW # 03F 109 158K
- VW # 03F109158K
- VW # 03F109507B
- VW # WHT004068
- VW # 03F109509C
- VW # 03F 109 509C
- VW # 03F 109 509 C
- VW # WHT 004 068
- VW # WHT 004 069
- VW # WHT004069
- VW # 03F 109 469 C
- VW # 03F 109 469C
- VW # 03F109469C
- ET ENGINETEAM # RS0042VR1
Parts list
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
| Weight : | 0,38 kg |
Criteria
| Diameter to [mm]: | 125 mm |
| Stock: | > 25 pcs |
Alternatives
General information
| Code: | RS0106VR1 |
| Brand: | ET ENGINETEAM |
| Title: | Timing Chain Kit |
| Car: | Audi A1, Skoda Fabia Rapid Yeti Roomster, VW Cady Golf CBZA CBZB 2011+ |
| Weight : | 5,37 kg |
Criteria
| Supplementary Article/Supplementary Info: | with cylinder head gasket |
| Supplementary Article/Info 2: | with bolts |
| Number of chains: | 1 |
| Scope of Supply: | includes components ET Engineteam + Elring |
| Stock: | 2 pcs |
