Code: PM004900ETVR1 |
Title: Piston Set + conrods
Piston Set + conrods - PM004900ETVR1 ET ENGINETEAM - 036105701AB, 03C107065AQ, 036105701S
Car: Skoda Fabia, VW Golf, Audi A1, Seat Ibiza 1,4TSI CAVE CTHE CAVG 2010+
| Tag: | boxET – service kit |
| Component Number: | 4xPM004900 |
| Component Number: | 4xOM0051 |
| Component Number: | LP004300 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 76,5 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 54 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29 mm |
| Stock: | > 25 pcs |
Where to buy?
EAN: 8592779039333
ET Engineteam repair kit for VAG engines manufactured since 2007. The kit contains 4x complete piston PM004900, 4x conrod OM0051, conrod bearings LP004300, mounting device HP0009, sealing compound 030.793 and protective gloves 50003783. Suitable, for example, for Audi A1 / A3, Seat Alhambra / Altea / Ibiza / Toledo, Škoda Fabia / Octavia / Rapid, VW Beetle / EOS / Golf / Touran 2007+. Engines BLG, BMY, CAVA, CAVC, CAVE, CNWA, CTHA, CTHE.
OE numbers: 03C107065AQ, 03C107065AS, 03C107065BF, 03C107065CK, 03C198401A, 03C198401D, 036105701AB, 036 105 701 S
Categories
Safety information
Reference Numbers
- SKODA # 036 105 701 AB
- VW # 03C107065AQ
- SKODA # 036 105 701 S
- VW # 03C107065AS
- SKODA # 03C 105 701 D
- VW # 03C107065BF
- SKODA # 036105701AB
- VW # 03C107065CK
- SKODA # 036105701S
- VW # 03C 107 065 AS
- SKODA # 03C105701D
- VW # 03C 107 065 AQ
- SKODA # 036 105 701AB
- VW # 03C 107 065 CK
- SKODA # 036 105 701S
- VW # 03C 107 065 BF
- SKODA # 03C 105 701D
- VW # 03C 107 065AS
- VW # 03C 107 065AQ
- VW # 03C 107 065CK
- VW # 03C 107 065BF
- VW # 03C 107 065 AH
- VW # 03C 107 065AH
- VW # 03C107065AH
- VW # 03C 107 065 BL
- VW # 03C 107 065BL
- VW # 03C107065BL
- VW # 03C 107 065 CE
- VW # 03C 107 065CE
- VW # 03C107065CE
- VW # 03C 107 065 CF
- VW # 03C 107 065CF
- VW # 03C107065CF
- VW # 03C 198 401 A
- VW # 03C 198 401A
- VW # 03C198401A
- VW # 03C 198 401 D
- VW # 03C 198 401D
- VW # 03C198401D
- MAHLE # 028PI00117000
- KOLBENSCHMIDT # 40846600
- NÜRAL # 87-433900-00
- MAHLE # 029PS20037000
- KOLBENSCHMIDT # 50009179
- KOLBENSCHMIDT # 77836600
- ET ENGINETEAM # PM004900ETVR1
Parts list
General information

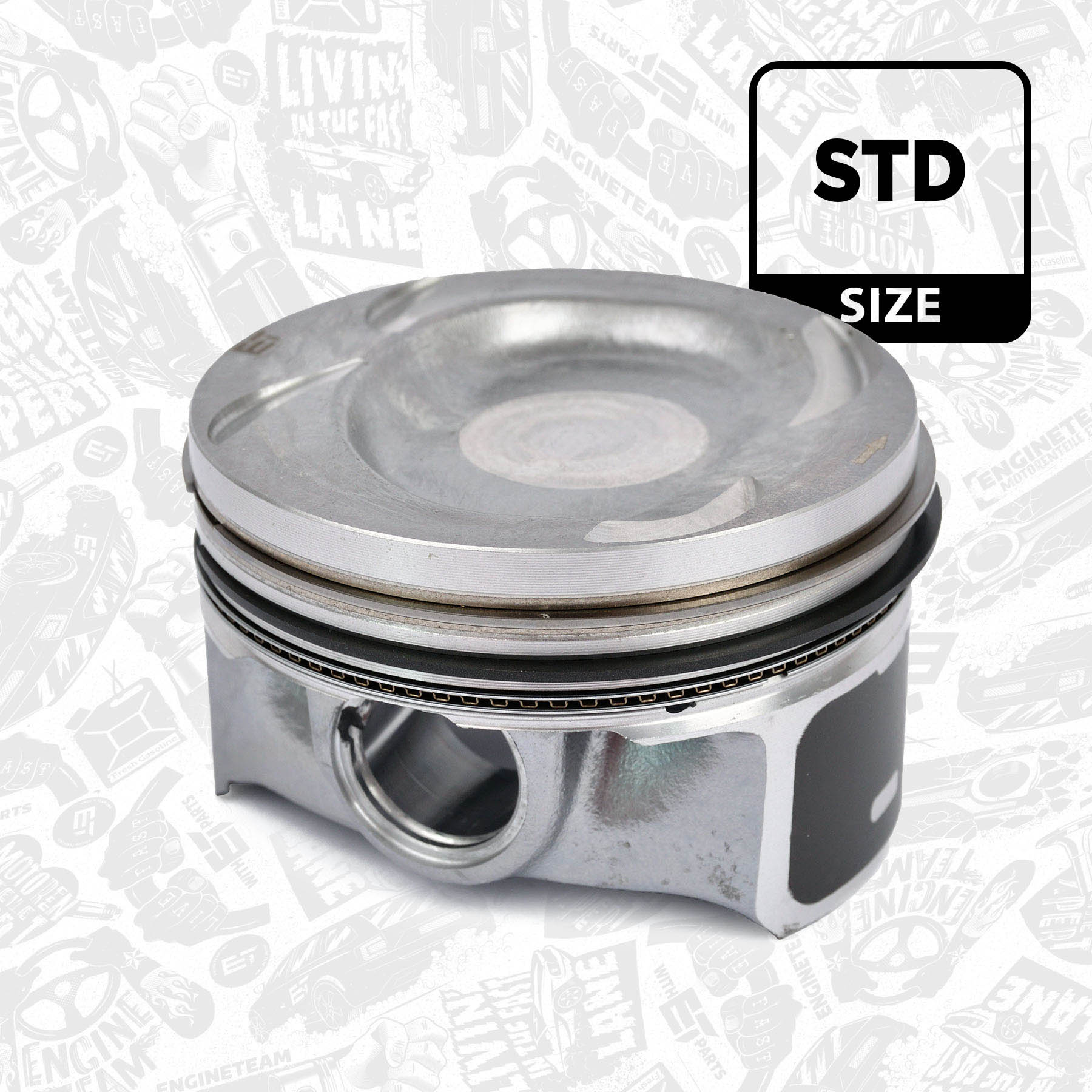

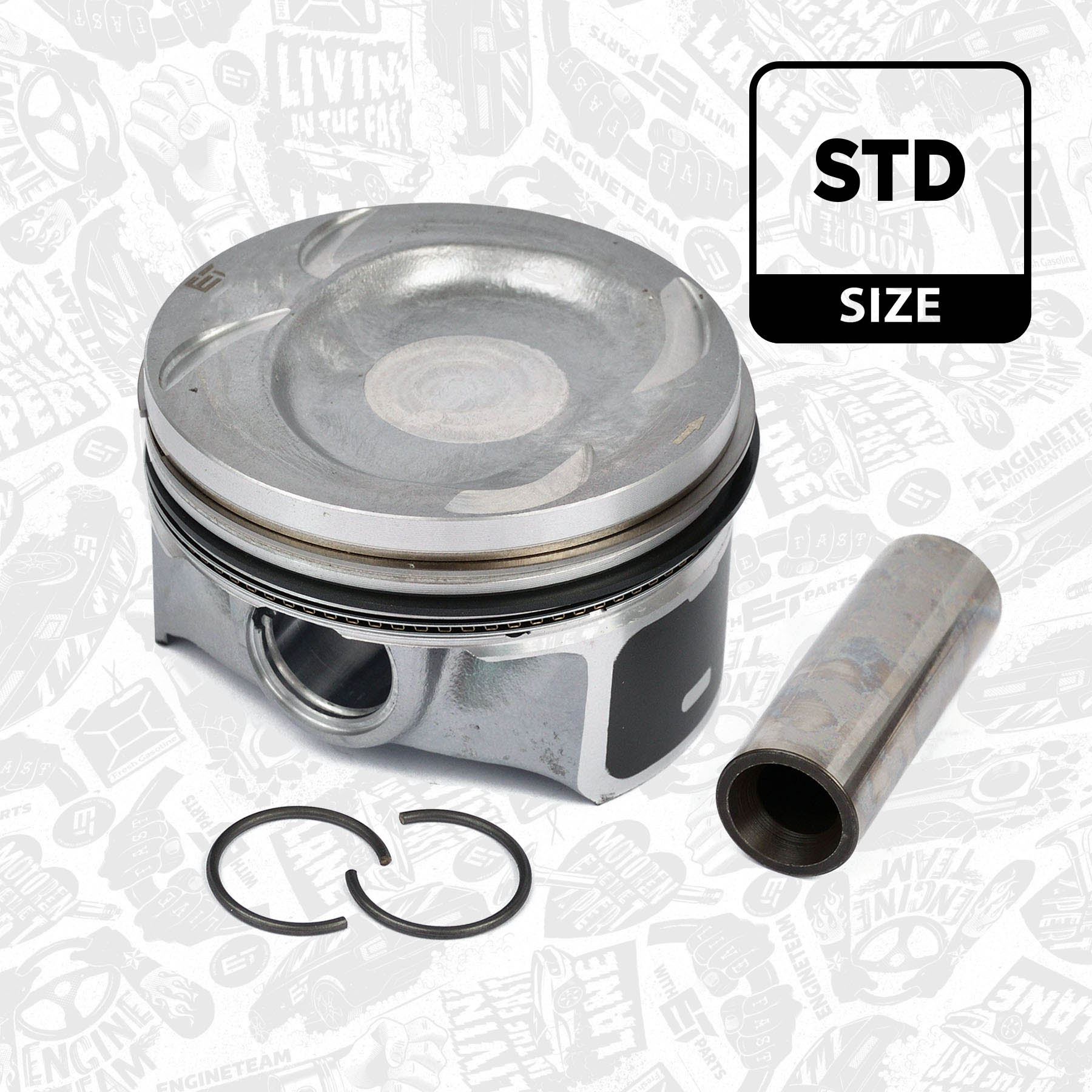

| Code: | PM004900 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29 mm |
| Cylinder Bore [mm]: | 76,5 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Bolt Length [mm]: | 54 mm |
| Standard Size [STD]: | yes |
| Stock: | > 25 pcs |
General information

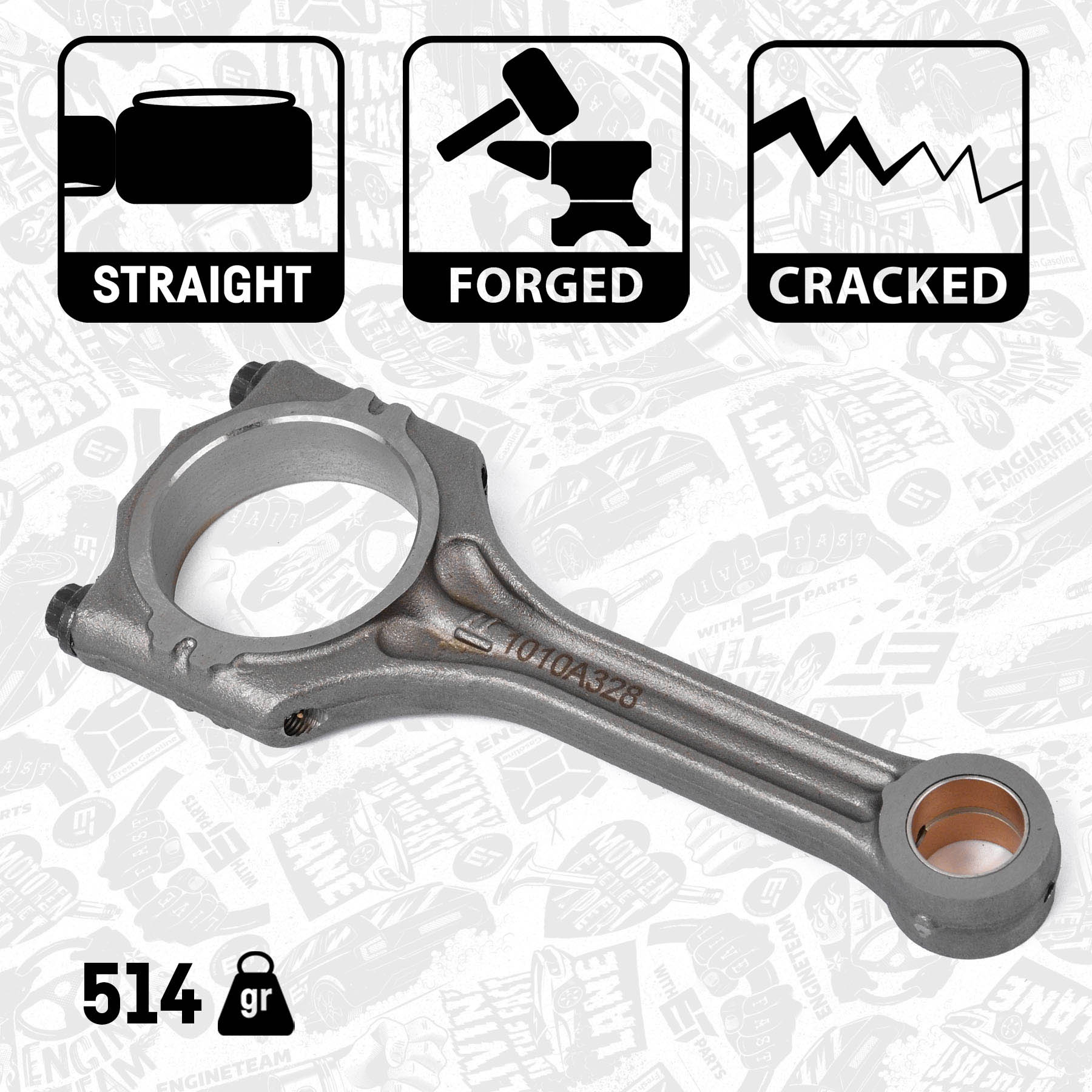

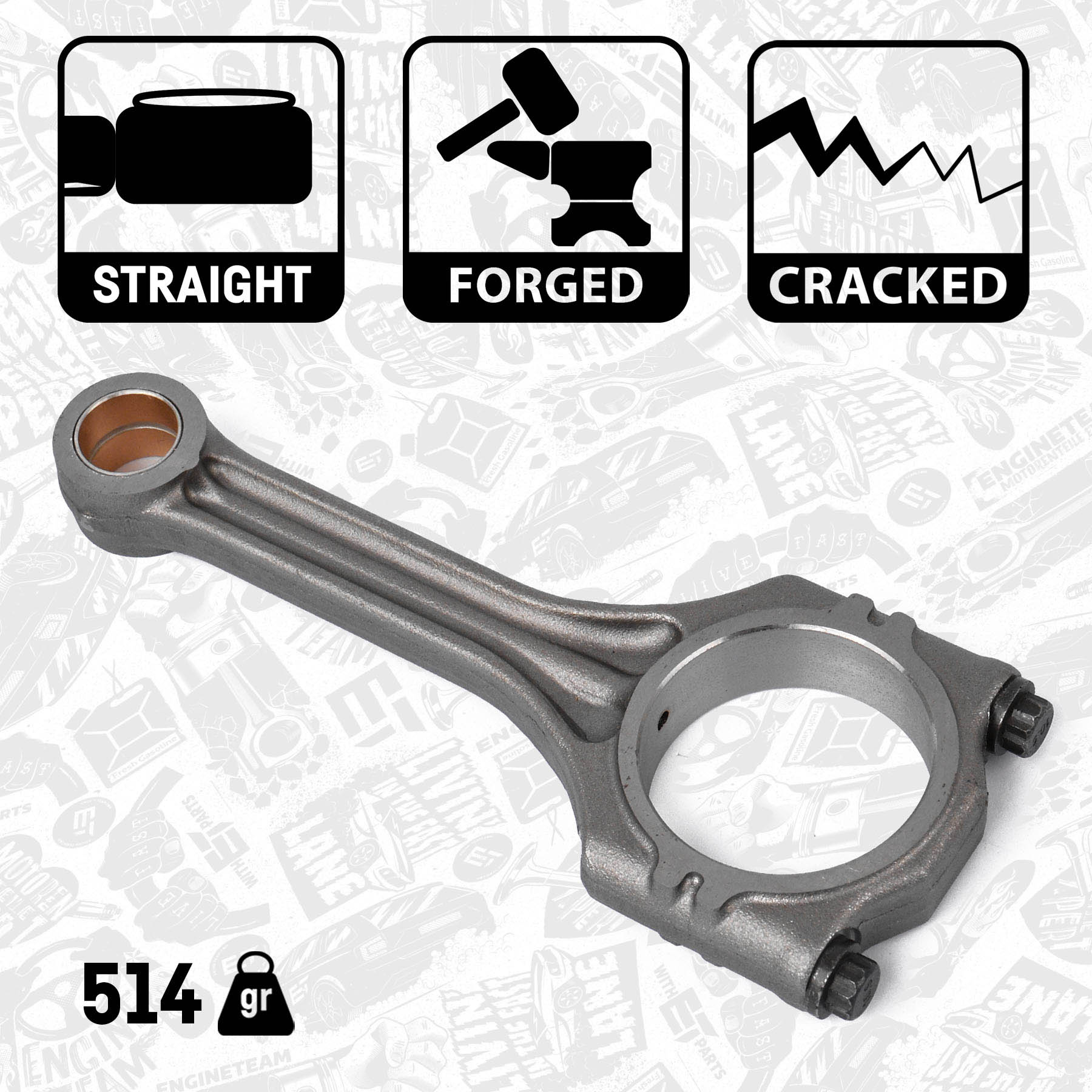

| Code: | OM0051 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | Audi Seat Skoda VW A1 A3 Altea Leon Toledo Fabia Rapid Eos Golf BLG BMY CAXA 1,4 TSI 2007+ |
Criteria
| Tightening Torque [Nm]: | 50 Nm |
| Diameter of large connecting rod big end [mm]: | 50,6 mm |
| Dia. of small connecting rod big end (with bushing) [mm]: | 19 mm |
| Hole Spacing [mm]: | 109,2 mm |
| Processing: | Forged |
| Processing: | cracked |
| Connecting Rod Design: | Parallel Connecting Rod |
Show all
Show less
| Stock: | > 25 pcs |
General information

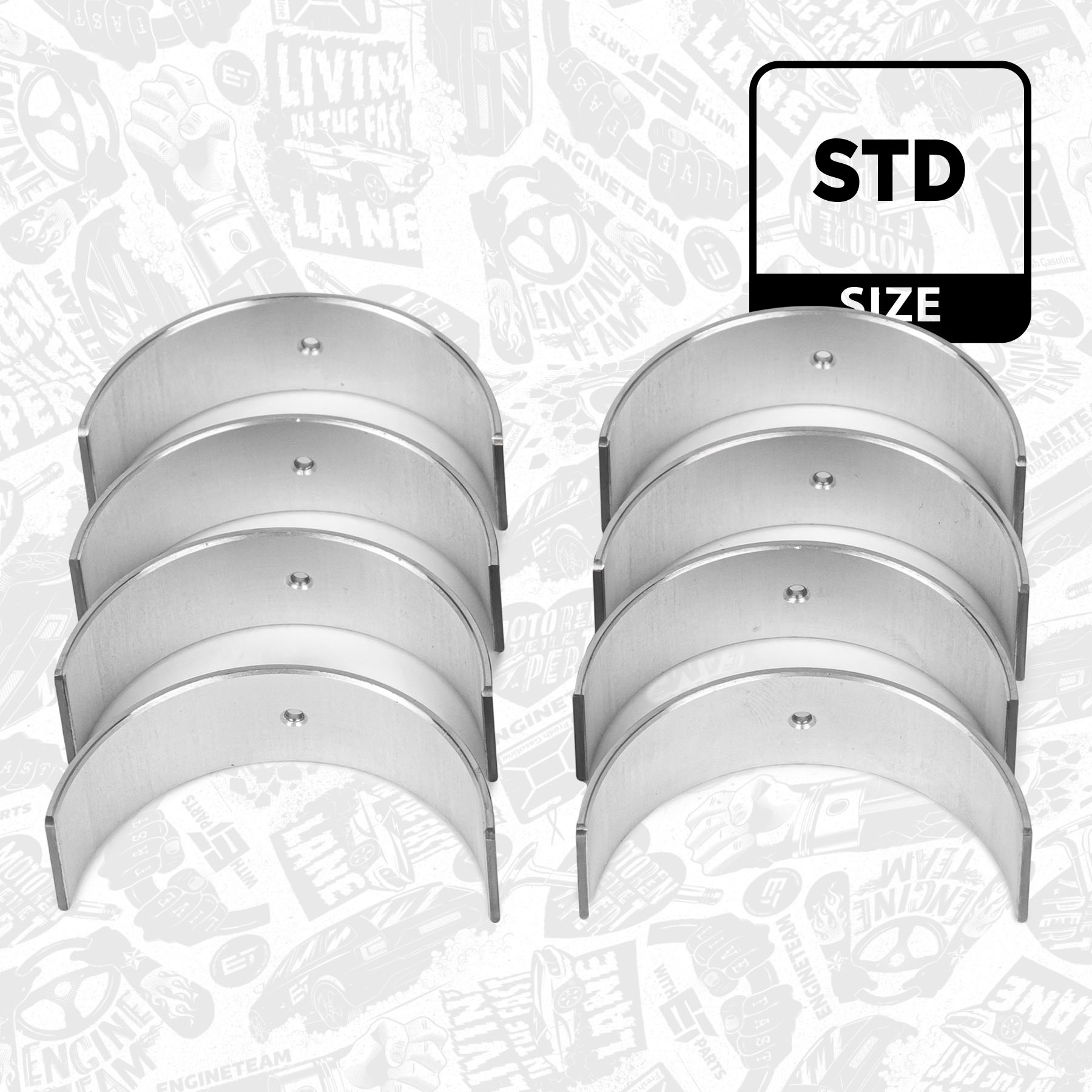

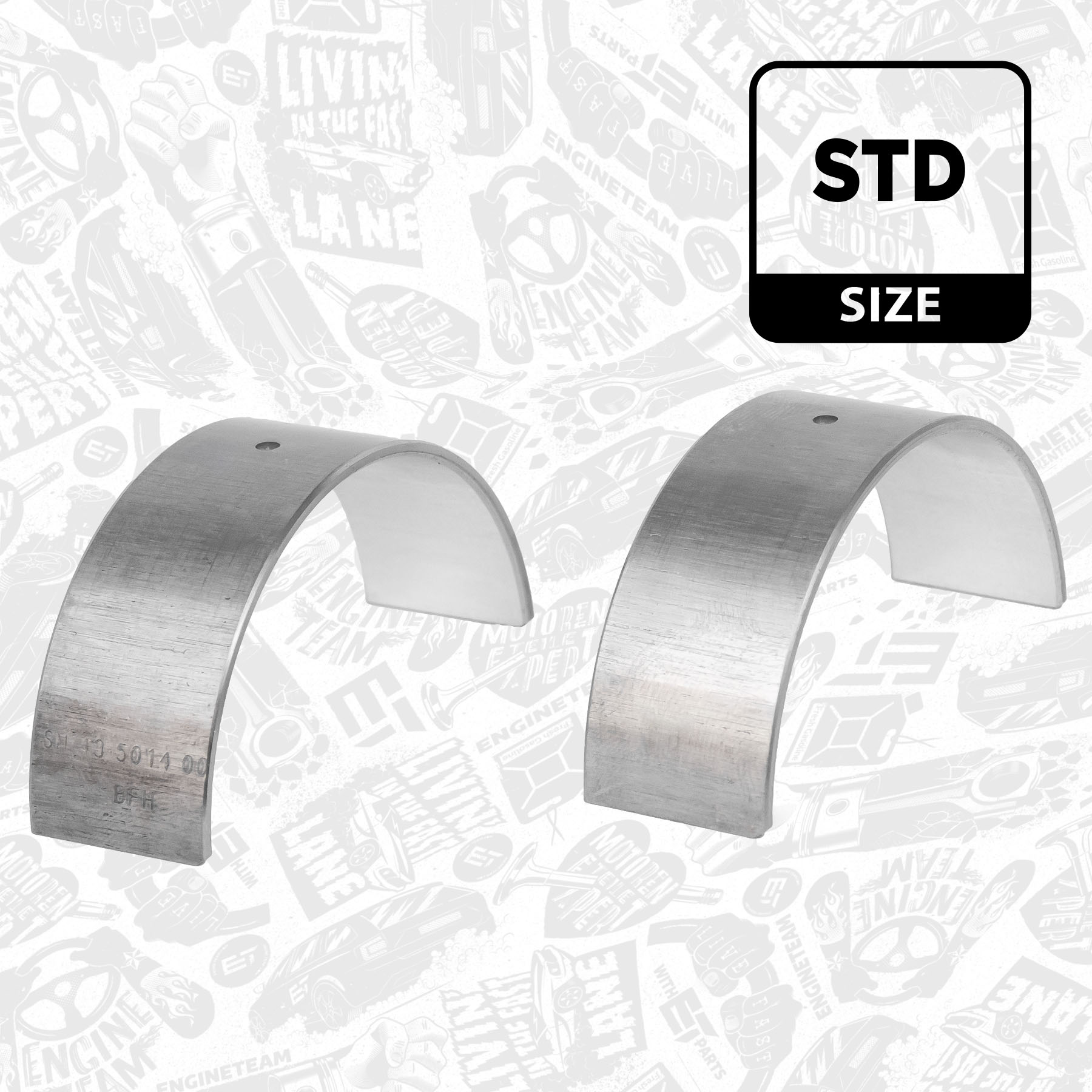

| Code: | LP004300 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod Bearing Shell Set |
| Car: | Audi Seat Skoda VW A1 Alhambra Octavia Caddy Golf 1,6 FSI 1,4 TSI CAXA BCA 2004+ |
Criteria
| Standard Size [STD]: | yes |
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
General information
| Code: | ME0009 |
| Brand: | ET ENGINETEAM |
| Title: | Work gloves, brown stripe |
Criteria
| Material: | Polyester |
| Colour: | brown |
| Stock: | > 25 pcs |
Alternatives
General information
| Code: | PM004900KSVR1 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Set + conrods |
| Tag: | boxET – service kit |
| Car: | VW Beetle Polo, Seat Ibiza, Audi Skoda 1,4 TSI BLG BMY CAVA 2010+ |
Criteria
| Component Number: | 4xPM004900 |
| Component Number: | 4xOM0051 |
| Component Number: | LP004300 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 76,5 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 54 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info: | with bearings |
| Compression Height [mm]: | 29 mm |
| Connecting Rod Design: | Parallel Connecting Rod |
| General Information: | Includes components from Kolbenschmidt + Elring |
