Piston kit - PM004750VR1 ET ENGINETEAM - 41765620, 854065, 87-427707-50
Car: Ford Duratorq 2,2TDCi 2011+
| Tag: | boxET – service kit |
| Quantity: | 4 |
| Oversize [mm]: | 0,5 mm |
| Component Number: | 4xPM004750 |
| Bolt Head Diameter [mm]: | 30 mm |
| Cylinder Bore [mm]: | 86,5 mm |
| Recess Depth 1 [mm]: | 16,2 mm |
| Bolt Length [mm]: | 66,75 mm |
| Compression Height [mm]: | 48,42 mm |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Supplementary Article/Supplementary Info 2: | with cooling duct |
| Recess Diameter [mm]: | 49 mm |
| Stock: | 12 pcs |
EAN: 8592779040629

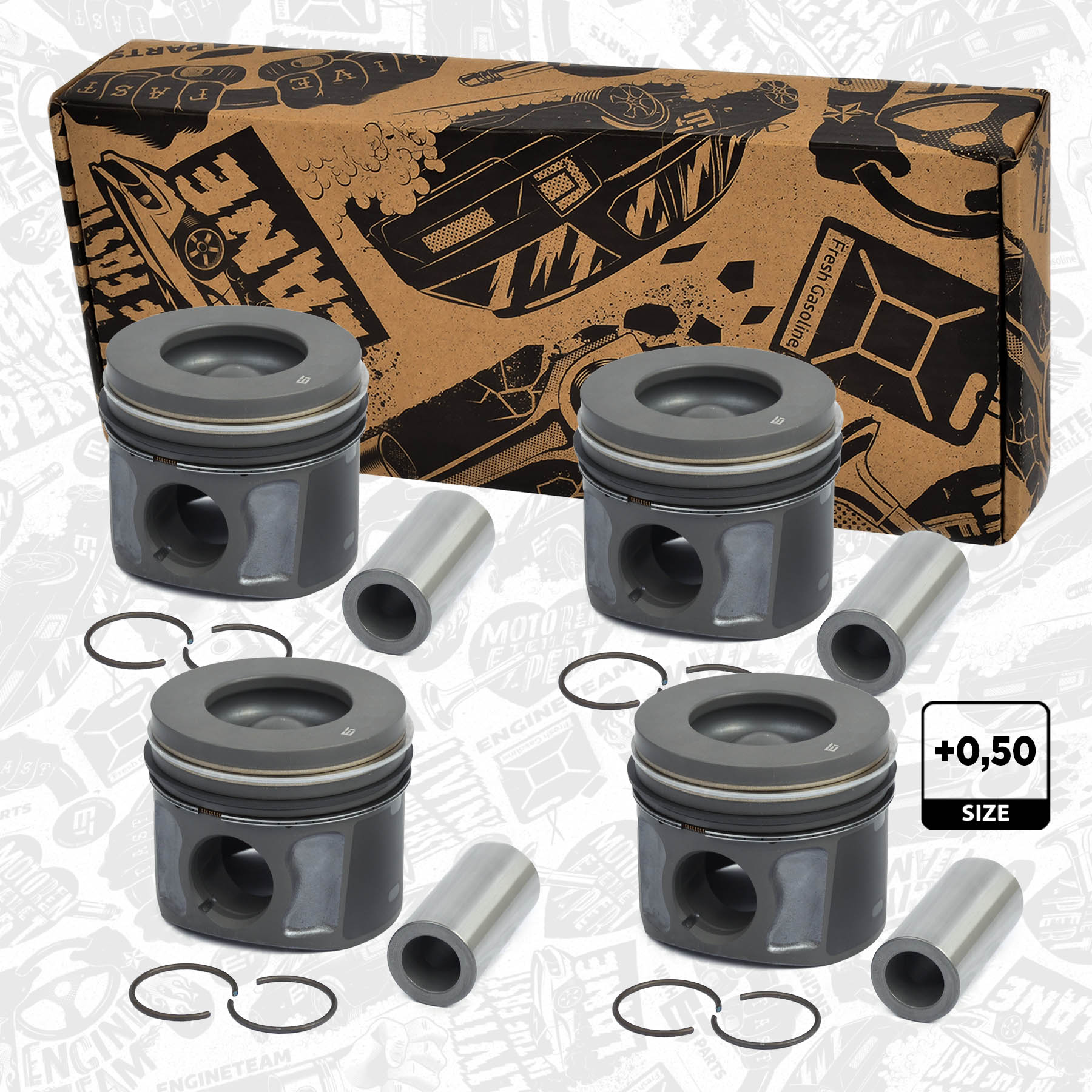

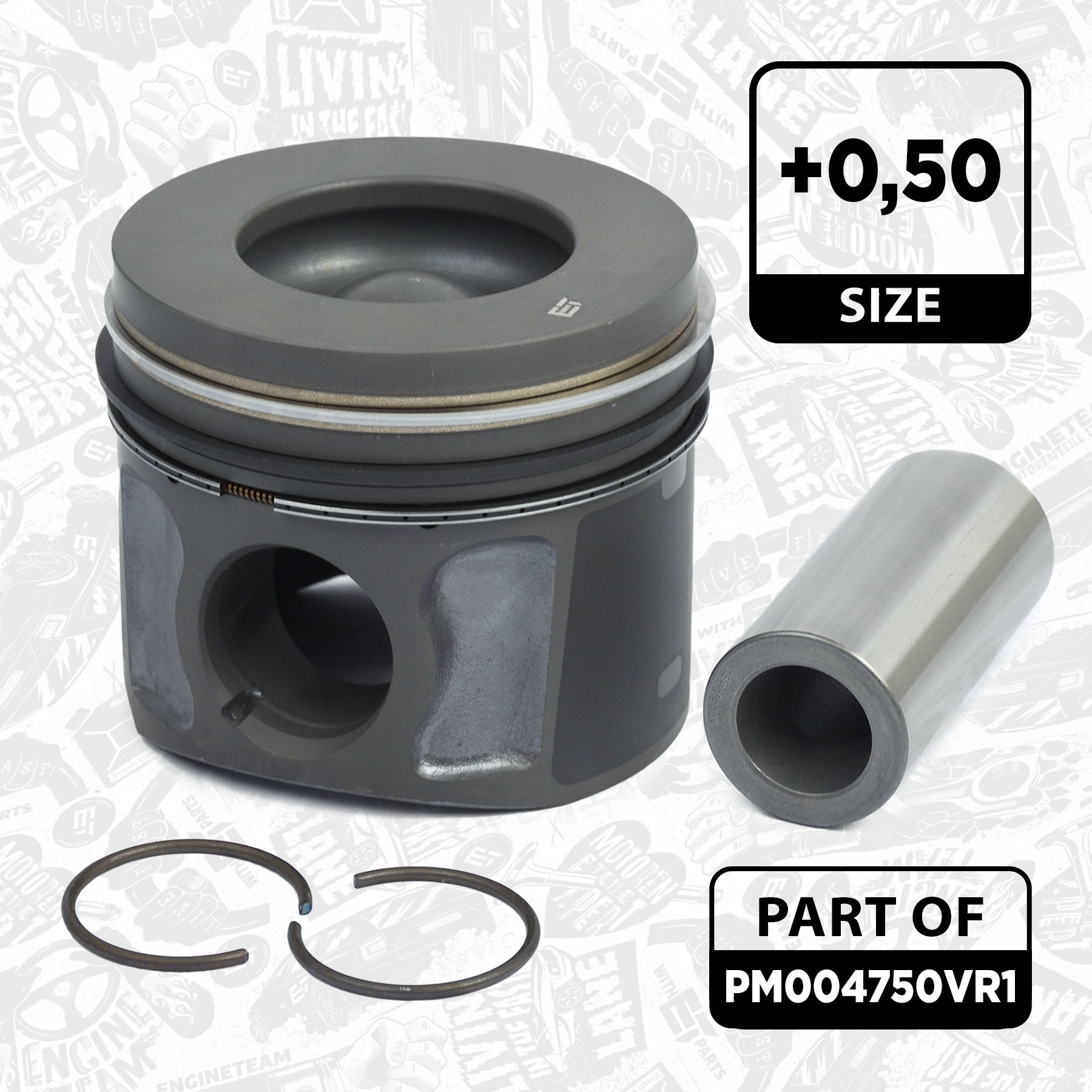

Complete set of ET Engineteam pistons in repair size 86.50 mm. The set contains 4x complete piston PM004750. Piston compression height is 48.42mm, pin 66.75mm x 30mm, chamber diameter 49mm, chamber depth 16.2mm. For trapezoidal connecting rod of engine OM0034. For Peugeot Boxer, Citroen Jumper, Ford Transit cars with 2.2D / Hdi / TDCi engines types 4HG (P22DTE), 4HH (P22DTE), 4HJ (P22DTE), CVRA, CVRB, CVRC, CYFA, CYFB, CYFC, CYRA, CYRB , DRFA, DRFB, DRFC since 2011.
Attention: PUMA 2.2 HDi / TDCi engines may have different pistons with different compression heights (for different sized connecting rods). That is why they are sometimes ordered incorrectly. Accurate piston identification by engine code is required. Or by measuring the original pistons. If you are unsure, please contact us with the VIN code.
