Code: PM006900KSVR1 |

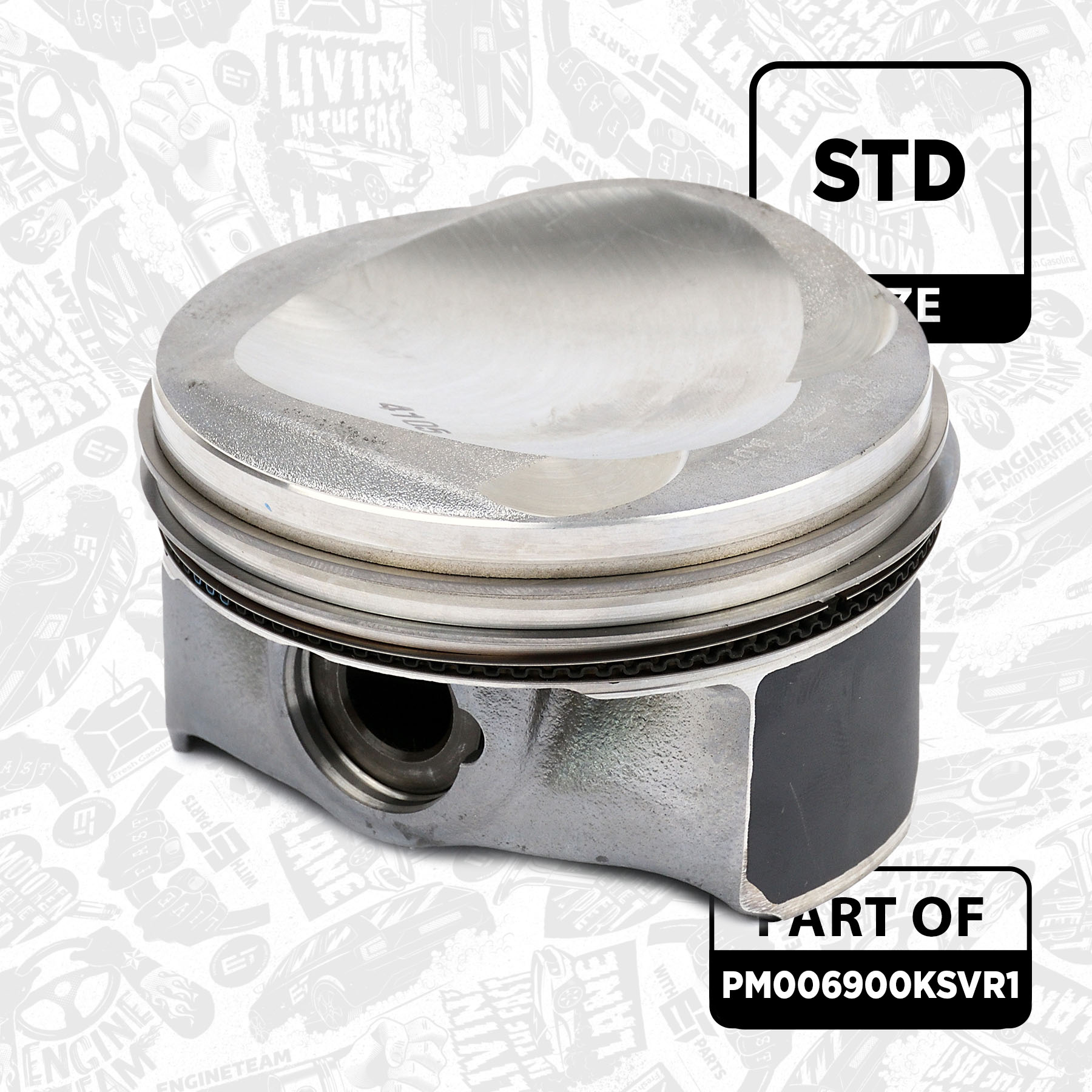

Title: Piston kit
Piston kit - PM006900KSVR1 ET ENGINETEAM - 06H107065DL, 06H107065CP, 41197600
Car: Audi Seat Škoda VW A3 A4 TT Exeo Altea Altea XL Toledo Yeti Superb Octavia Passat Golf CDAA CDHB 1,8 TFSI 2009+
| Tag: | boxET – service kit |
| Quantity: | 4 |
| Component Number: | 4x41197600 |
| Bolt Head Diameter [mm]: | 23 mm |
| Cylinder Bore [mm]: | 82,51 mm |
| Recess Depth 1 [mm]: | 4,75 mm |
| Bolt Length [mm]: | 51 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29,8 mm |
| For OE number: | 06H107065DL |
| General Information: |
includes Kolbenschmidt components includes Kolbenschmidt components [Show less] |
| Stock: | 1 pcs |
Where to buy?
EAN: 8592779040506

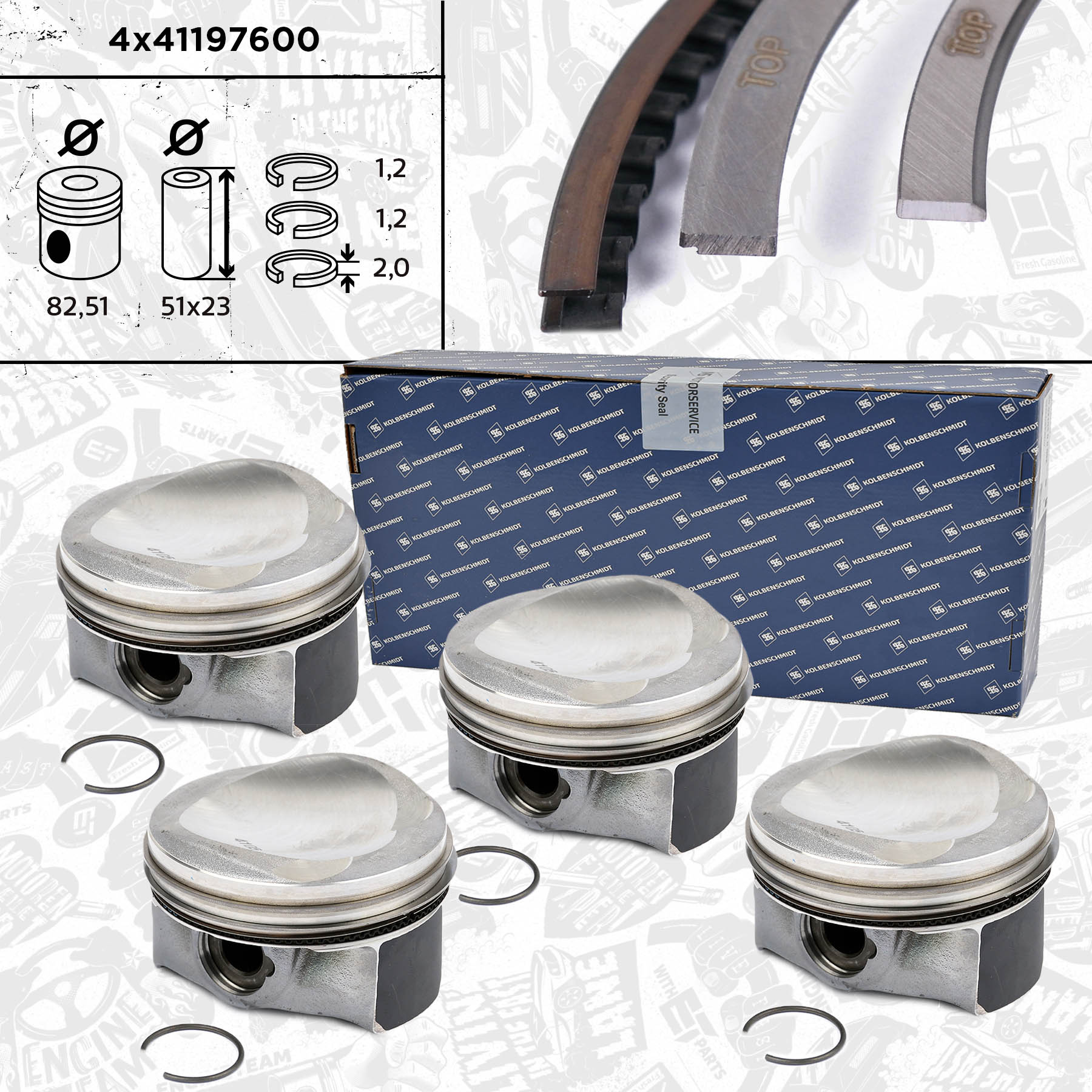

Piston Set ET ENGINETEAM PM006900KSVR1 for vehicles Audi, Seat, Škoda and Volkswagen with 1.8 TFSI and 1.8 TSI engines, years 2006–2017. Supplied set of 4 pcs is with piston ring, with gudgeon pin length of 51 mm, with Cyl.Bore 82,51 mm, Recess Depth (groove) 4,75 mm, for Bolt Ø 23 mm and Compression Height 29,8 mm, includes components Kolbenschmidt. Intended for example for Audi A3 1.8 TFSI / Seat Leon 1.8 TSI / Škoda Octavia 1.8 TSI / Volkswagen Golf 1.8 TSI and others. Engine codes: CDAA, CDHA, CDHB, CDAB.
OE numbers: 06H107065DL, 06H107065CP.
Set includes:
Automatically generated description. Please verify compatibility before ordering.
