Code: PM013900VR1 |
Title: Piston Set
Piston Set - PM013900VR1 ET ENGINETEAM - 1373528, LR004436, 1373529
Car: Ford Land Rover Transit DEFENDER 2,4TDCi 16V JXFC H9FA JXFA H9FB EUR4 2004+
| Tag: | boxET – service kit |
| Quantity: | 4 |
| Bolt Head Diameter [mm]: | 32 mm |
| Cylinder Bore [mm]: | 89,9 mm |
| Recess Depth 1 [mm]: | 16,3 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 71,1 mm |
| Compression Height [mm]: | 53,5 mm |
| Recess Diameter [mm]: | 49 mm |
| Height [mm]: | 80,5 mm |
| Stock: | 13 pcs |
Where to buy?
EAN: 8592779046690

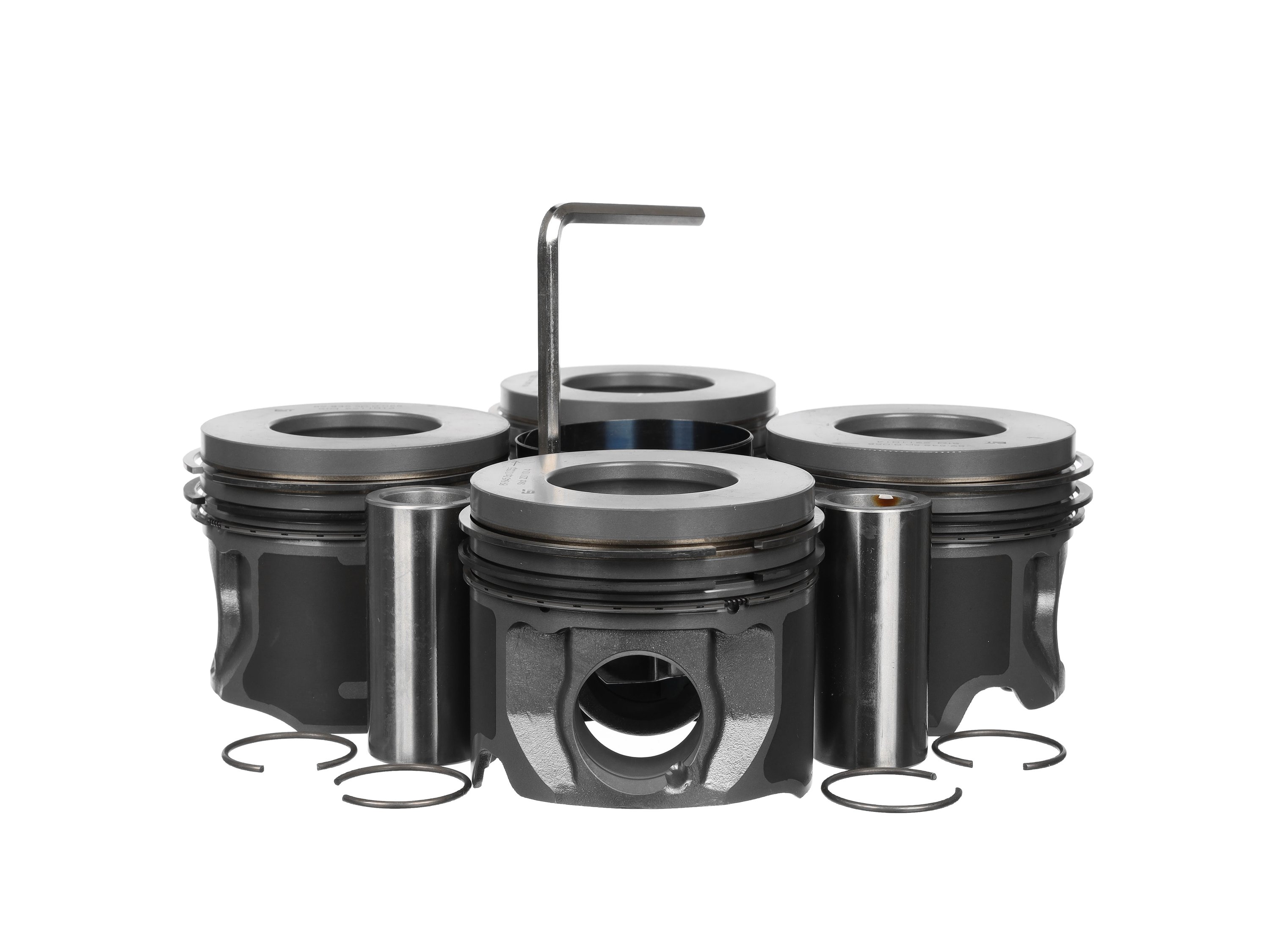

Complete set of pistons ET Engineteam for Ford / Land Rover 2.4 TDCi vehicles from 2004. The pistons are in standard size (STD) and come with piston rings. Suitable for vehicles such as Ford Transit and Land Rover Defender, equipped with engines H9FA, H9FB, JXFA, JXFC, DT244.
The set includes:
- 4x complete piston PM013900
- Tool HP0009, for installing the piston with rings into the cylinder
- Assembly gloves ME0009
OE: 6C1Q-6K100-CBB, 1376491, LR004436, 1373528.
