Code: PM009750KS |
Title: Piston Set
Piston Set - PM009750KS ET ENGINETEAM - 03C103383AE, 03C109287F, 03C103383AH
Car: Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
| Tag: | boxET – service kit |
| Oversize [mm]: | 0,5 mm |
| Component Number: | 40846600 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 77 mm |
| Bolt Length [mm]: | 54 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29 mm |
| General Information: |
Includes components from Kolbenschmidt + Elring Includes components from Kolbenschmidt + Elring [Show less] |
Where to buy?
EAN: 8592779047840
Piston Set ET ENGINETEAM PM009750KS for vehicles Audi, Seat, Škoda and Volkswagen with engines 1.4 TFSI / 1.4 TSI / 1.4 TSI RS / 1.4 GTI, years 2006–2018. Oversize 0.5 mm, Bolt Ø 19 mm, Cyl.Bore 77 mm, Bolt Length 54 mm, Compression Height 29 mm, with piston ring, contains components Kolbenschmidt and Elring. Suitable for example for Audi A1 1.4 TFSI / Seat Alhambra 1.4 TSI / Seat Ibiza 1.4 TSI / Škoda Fabia II 1.4 TSI RS / Volkswagen Golf 1.4 TSI and others. Engines CAVG, CTHG, CTJA, CAVA.
OE numbers: 03C103383AE, 03C109287F, 03C103383AH, 03C109287G, 03C109287H, WHT000912.

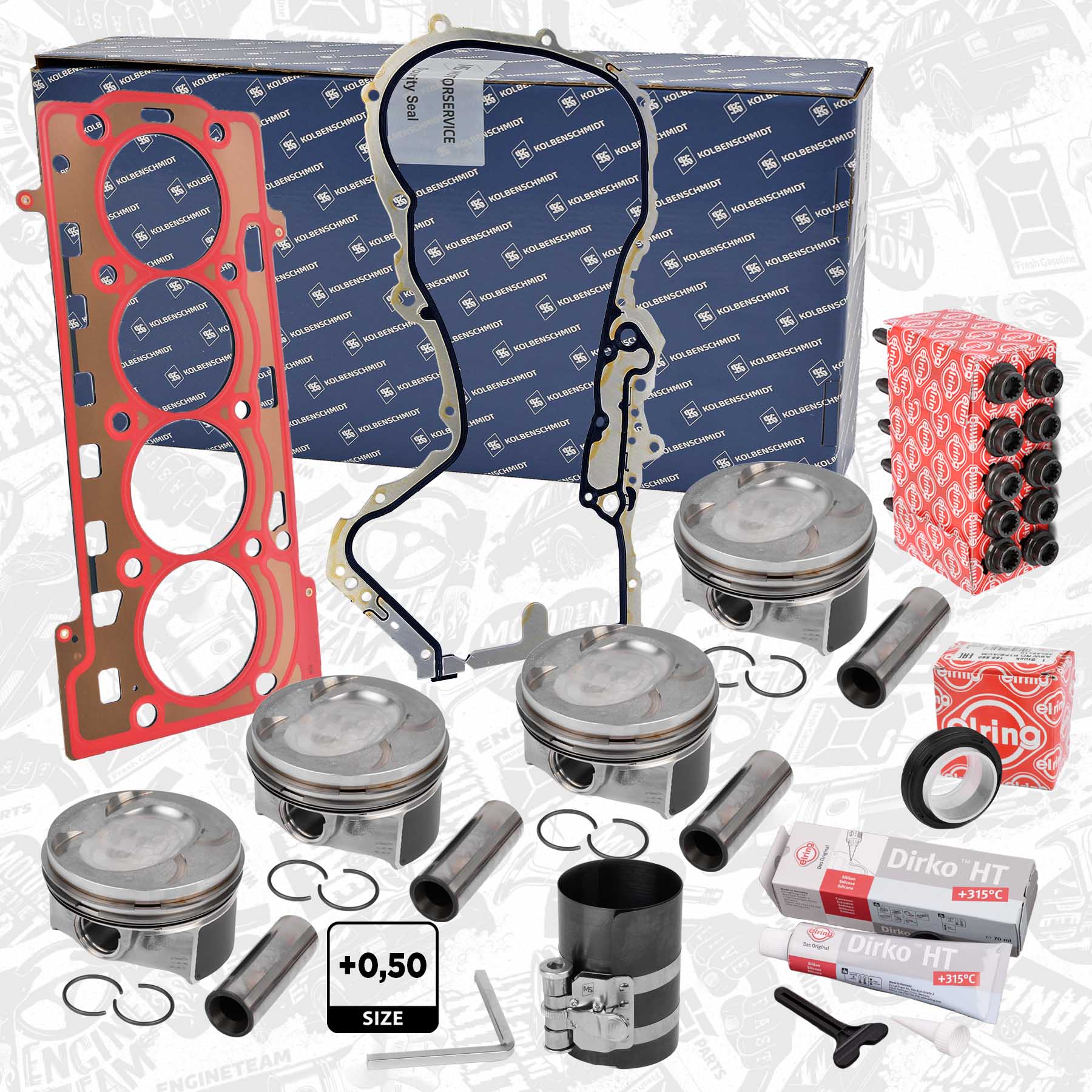

Set includes:

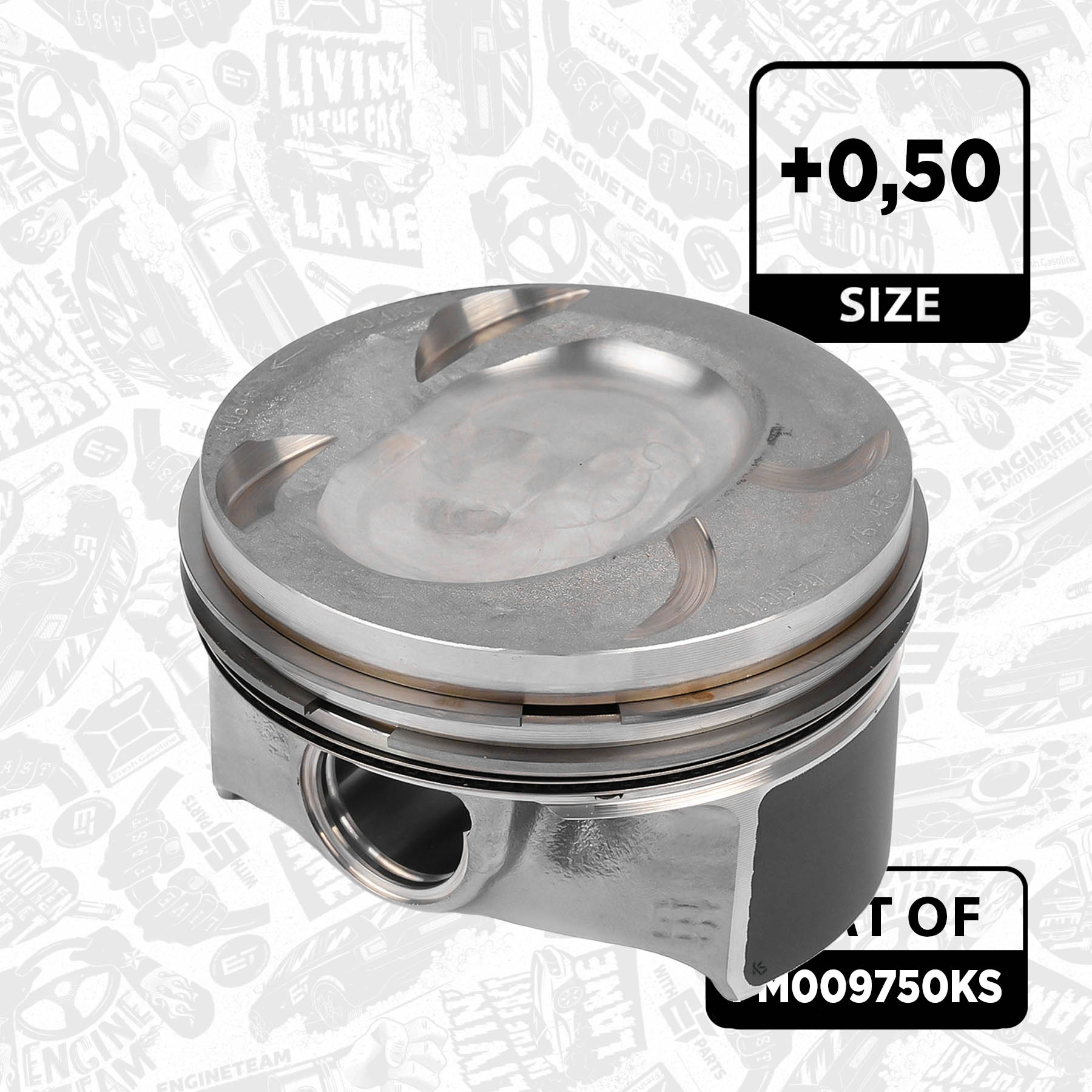

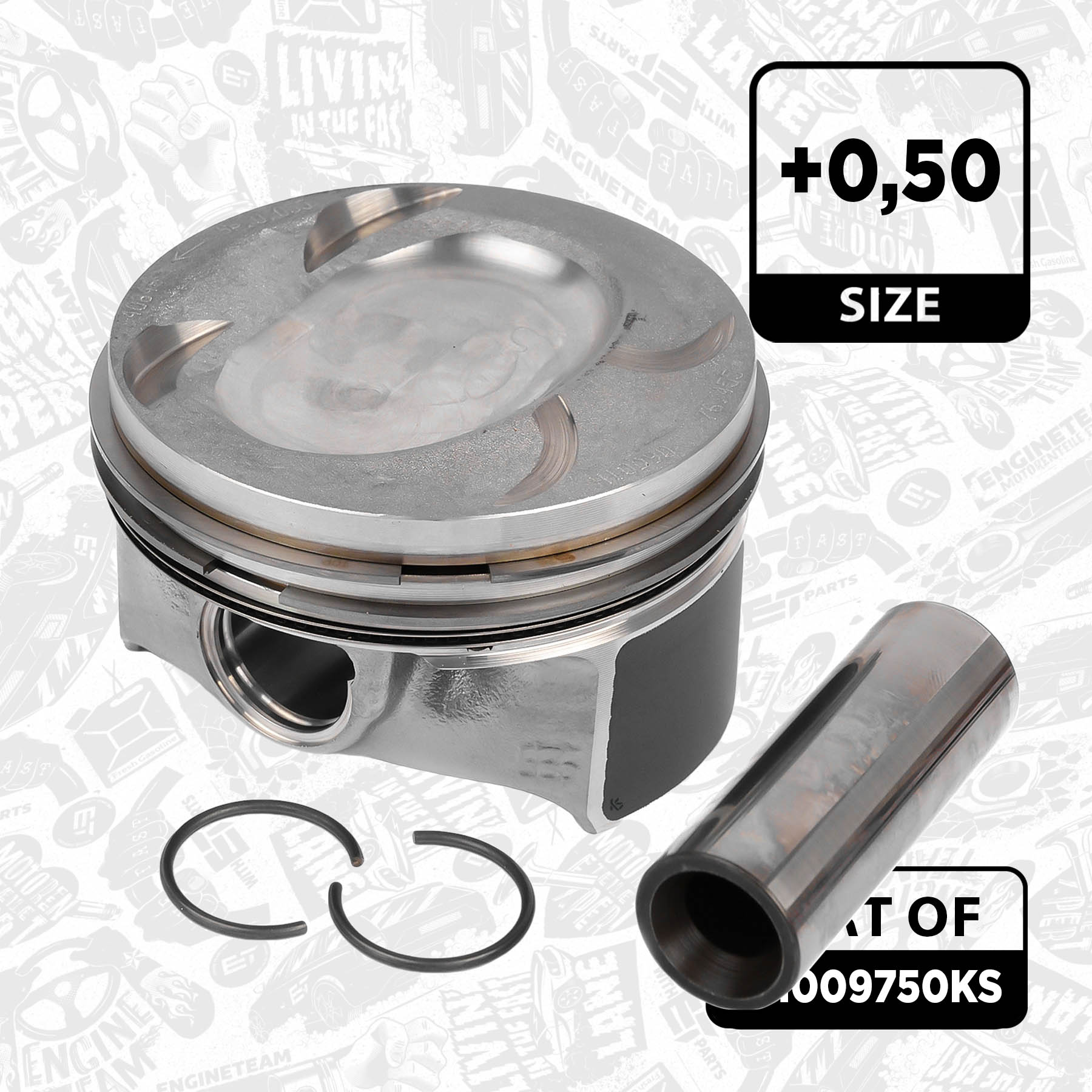

- Piston including rings and pin Kolbenschmidt 40846620

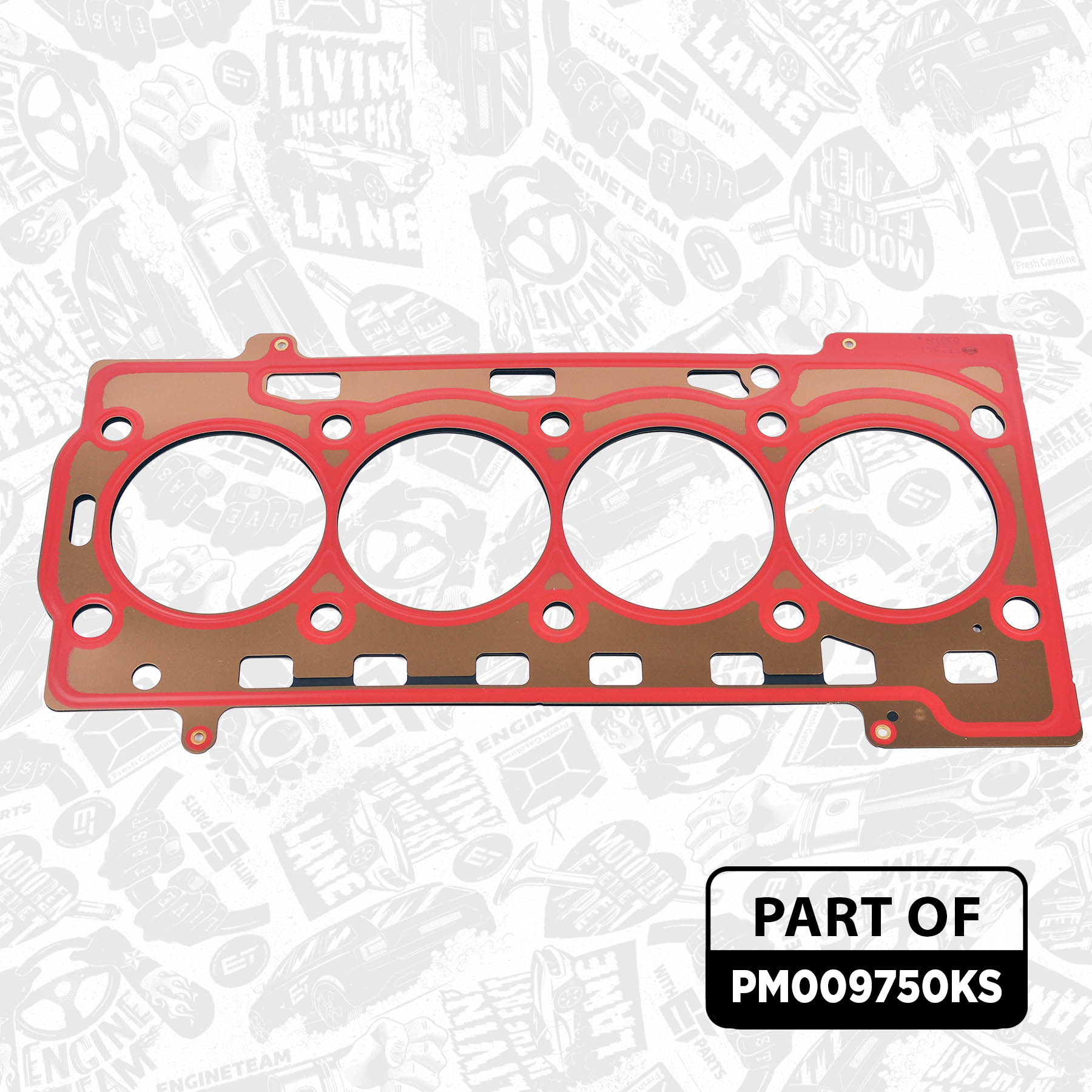

- Cylinder head gasket Elring 732.841

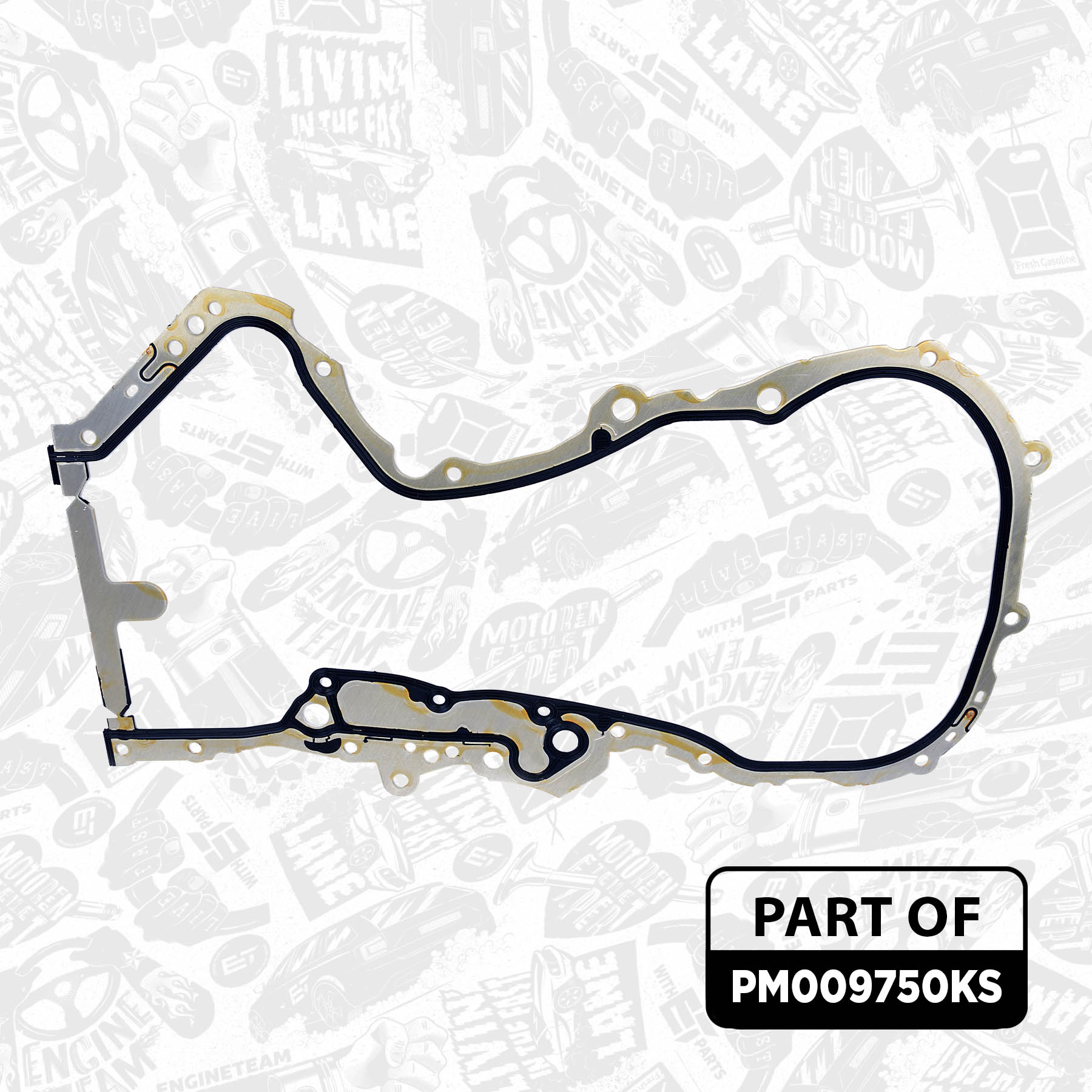

- Timing gear gasket Elring 092.750

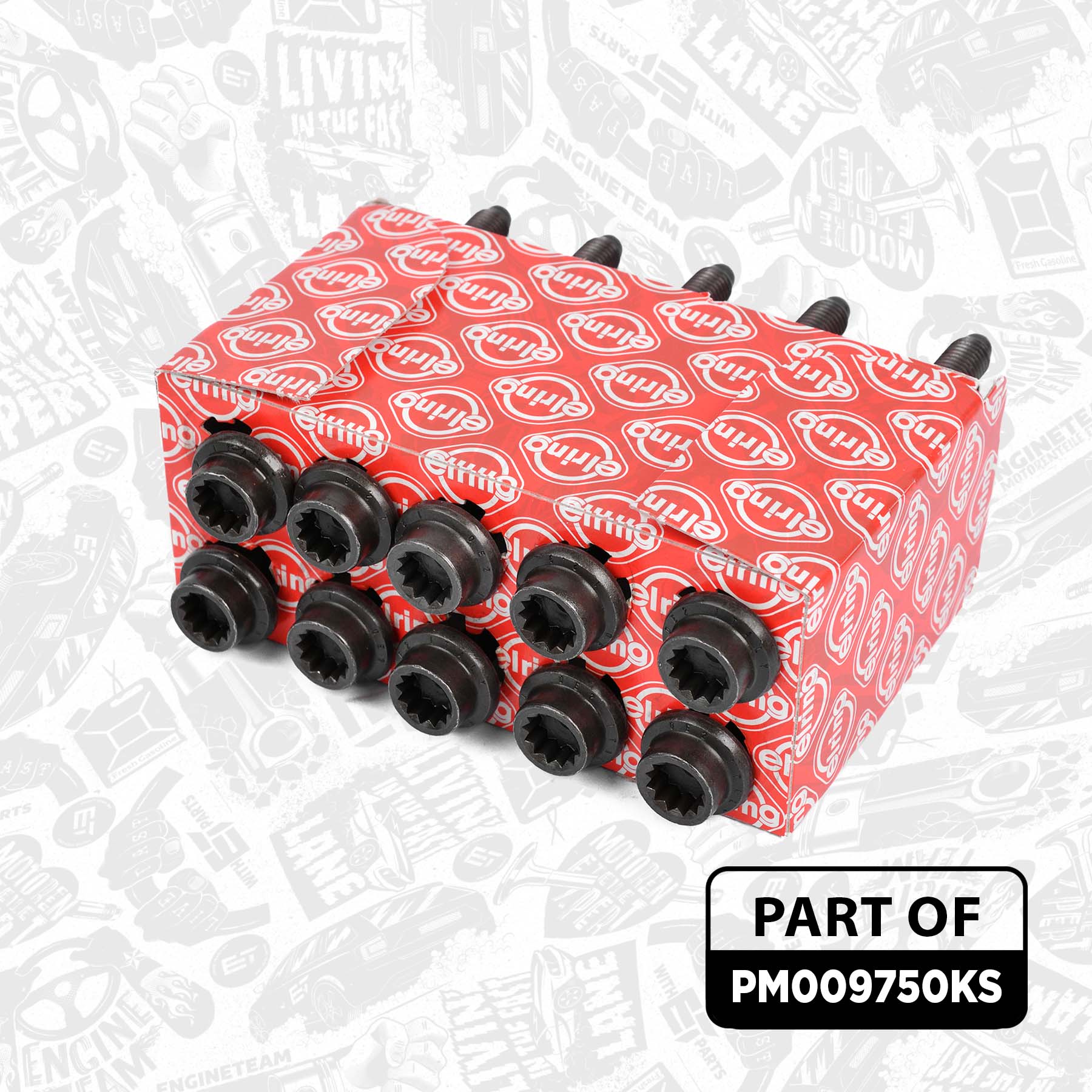

- Cylinder head bolt set Elring 730.300

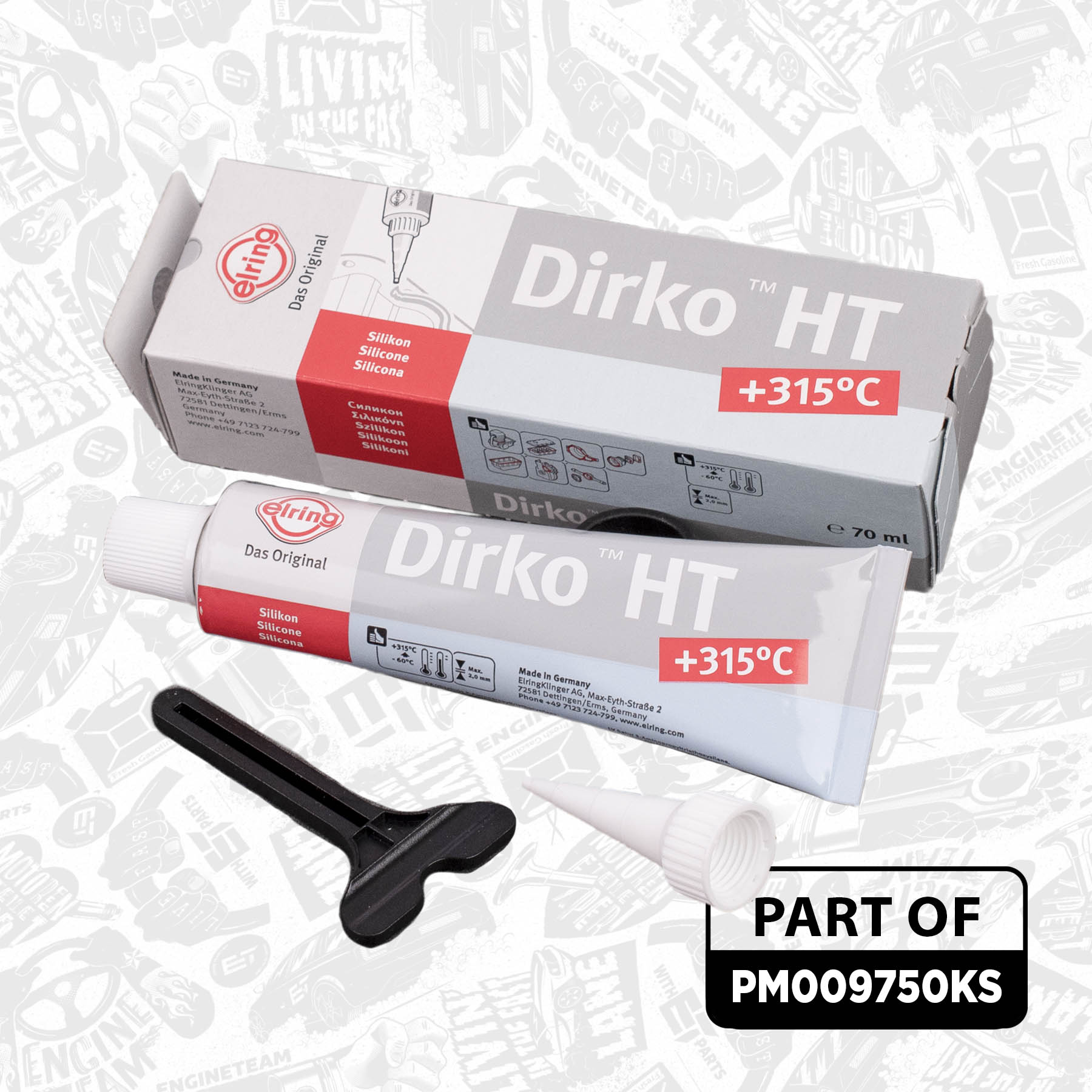

- Sealant - Dirko - grey, 70ml Elring 036.164
- Sealing ring for shaft, crankshaft Elring 155.560

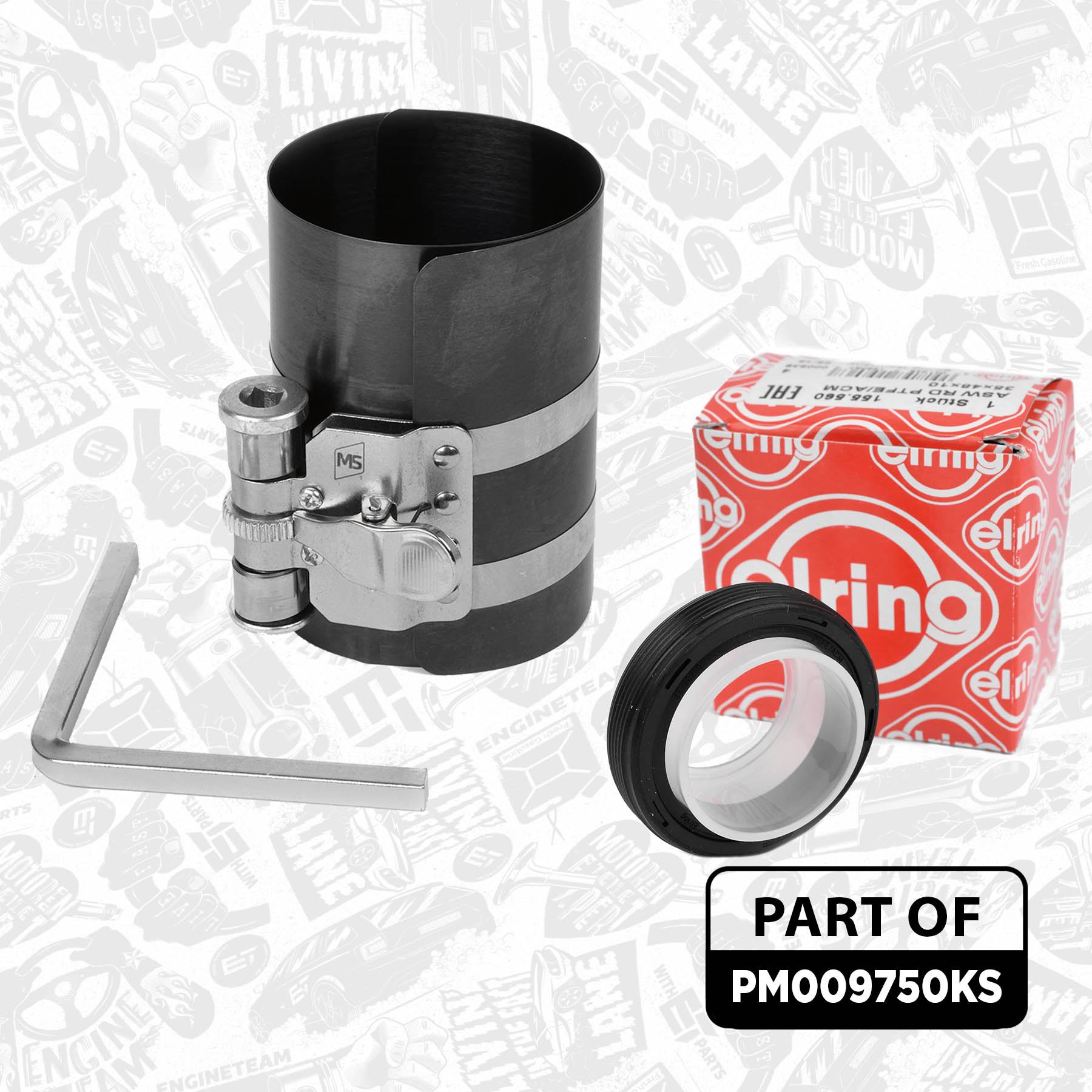

- Tool for fitting the piston with rings into the cylinder Kolbenschmidt 120000416353
Automatically generated description. Please verify compatibility before ordering.
Categories
Part type
Safety information
Reference Numbers
- AUDI # 03C 103 383 AE
- VW # 03C 109 287 F
- AUDI # 03C 103 383AE
- VW # 03C 109 287F
- AUDI # 03C103383AE
- VW # 03C109287F
- AUDI # 03C 103 383 AH
- VW # 03C 109 287 G
- AUDI # 03C103383AH
- VW # 03C 109 287G
- AUDI # 03C 103 383AH
- VW # 03C109287G
- VW # 03C 109 287 H
- VW # 03C 109 287H
- VW # 03C109287H
- VW # WHT 000 912
- ELRING # 092.750
- ELRING # 660.300
- ELRING # 732.841
- ET ENGINETEAM # PM009750KS
Parts list
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
