Code: PM004800KSVR1 |
Title: Piston Set
Piston Set - PM004800KSVR1 ET ENGINETEAM - 036105701AB, 03C107065AP, 036105701S
Car: Audi Seat Skoda VW Passat Golf Jetta Tiguan Roomster Rapid Octavia Yeti Altea XL Leon Toledo A3 A1 CAXA CNVA 1,4 TFSI 2007+
| Tag: | boxET – service kit |
| Component Number: | 40477600 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 76,51 mm |
| Recess Depth 1 [mm]: | 4,6 mm |
| Standard Size [STD]: | yes |
| Bolt Length [mm]: | 52 mm |
| Supplementary Article/Supplementary Info: | with bearings |
| Compression Height [mm]: | 29,2 mm |
| Valve Pocket Depth 1 [mm]: | 4 mm |
| Valve Pocket Depth 2 [mm]: | 2 mm |
| General Information: |
includes Kolbenschmidt components includes Kolbenschmidt components [Show less] |
Where to buy?
EAN: 8592779047888
Piston Set ET ENGINETEAM PM004800KSVR1 for vehicles Audi, Seat, Škoda and Volkswagen with engines 1.4 TFSI / 1.4 TSI, years 2007–2018. Piston pin with a diameter of 19 mm, cylindrical bore 76,51 mm, reboring depth (groove) 4,6 mm, pin length 52 mm, compression height 29,2 mm, valve pocket depth 4 mm and 2 mm, with bearings; the delivery includes components Kolbenschmidt. Intended for example for Audi A3 1.4 TFSI, Seat Altea 1.4 TSI, Škoda Octavia II 1.4 TSI, Volkswagen Golf VI 1.4 TSI and Audi A1 1.4 TFSI. Engine codes CAXA, CAXC, CNVA, CMSB.
OE numbers: 036105701AB, 03C107065AP, 036105701S, 03C105701D, 03C107065AP001, 03C107065AP003, 03C198401A, 03C198401D.

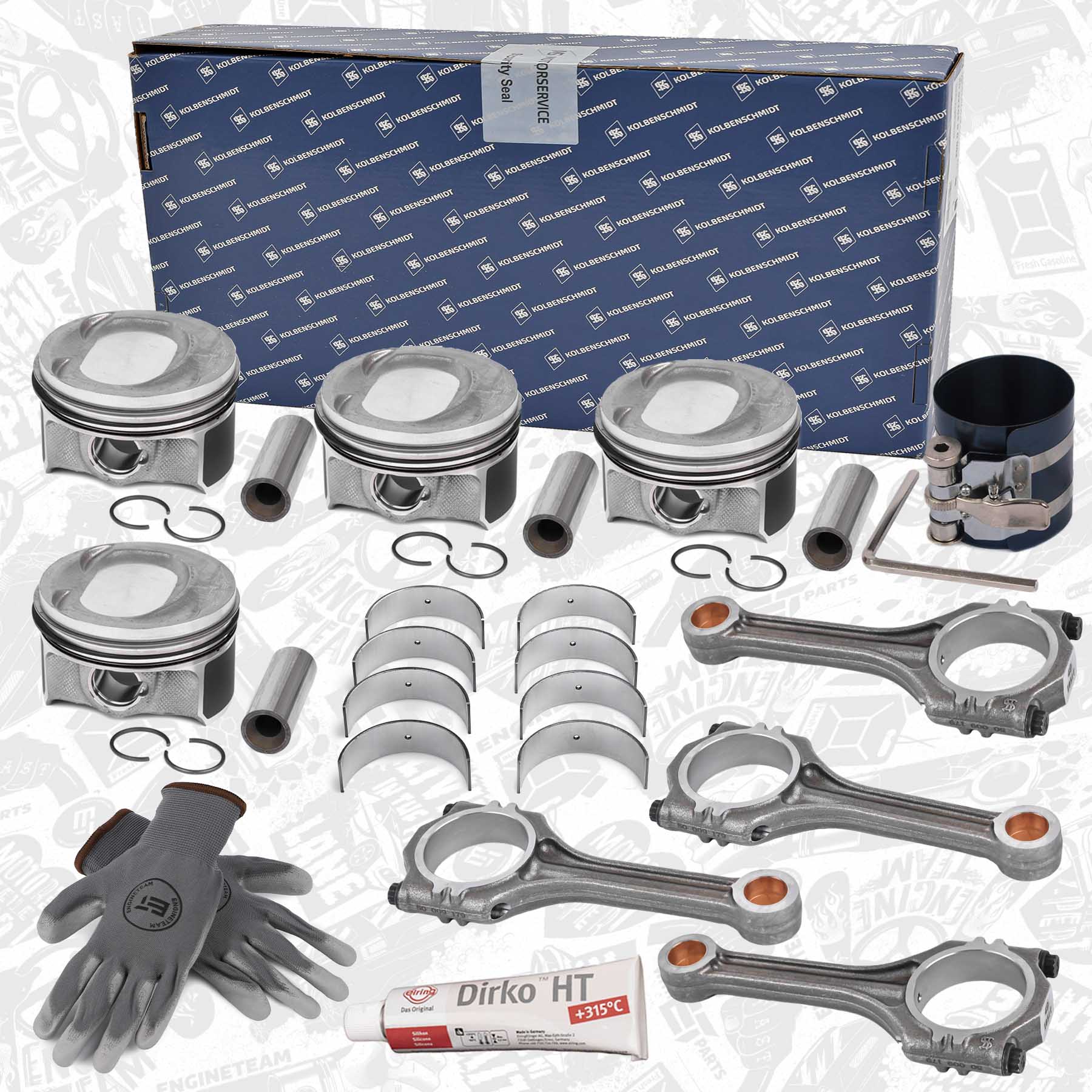

Set includes:

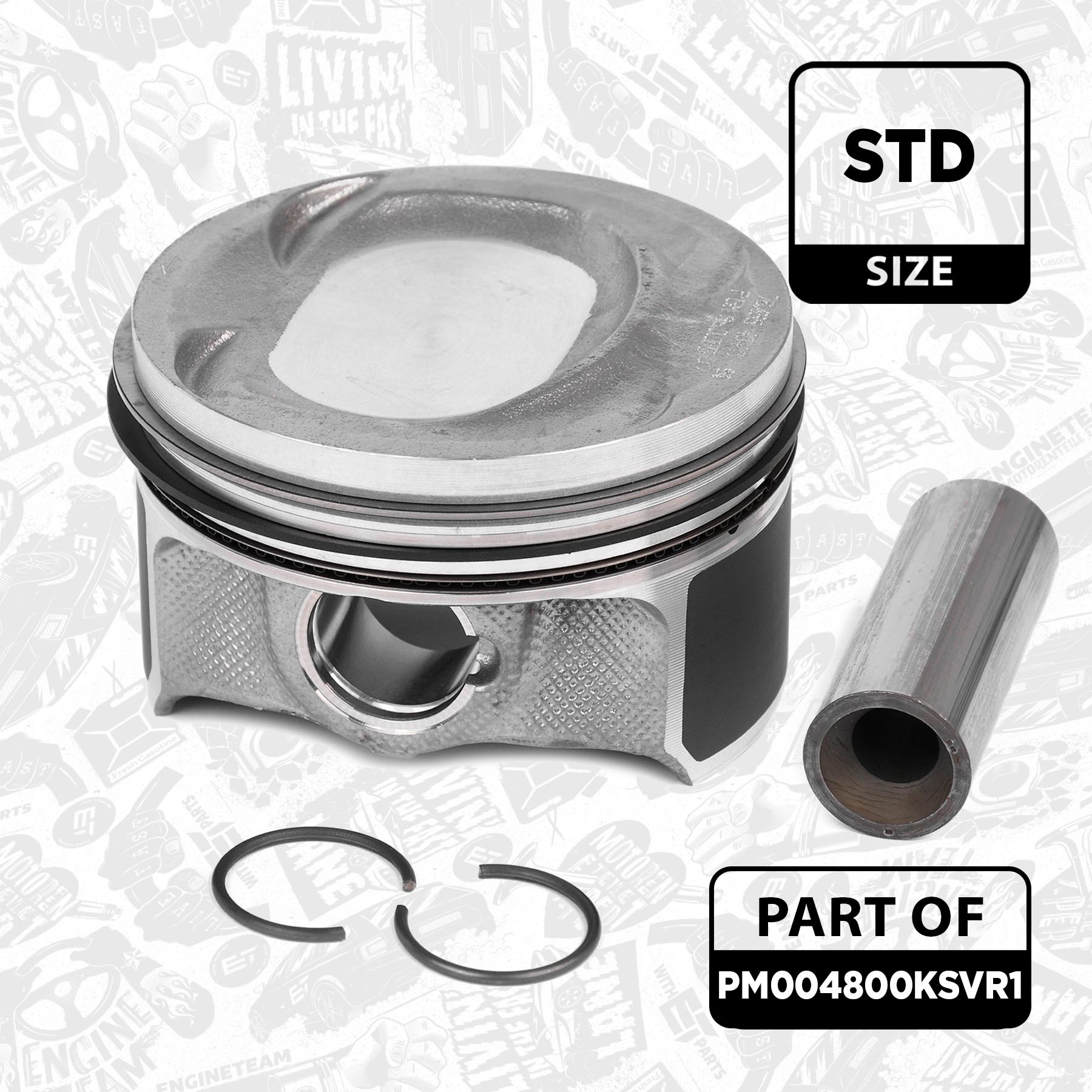

- Piston including rings and pin KOLBENSCHMIDT 40477600

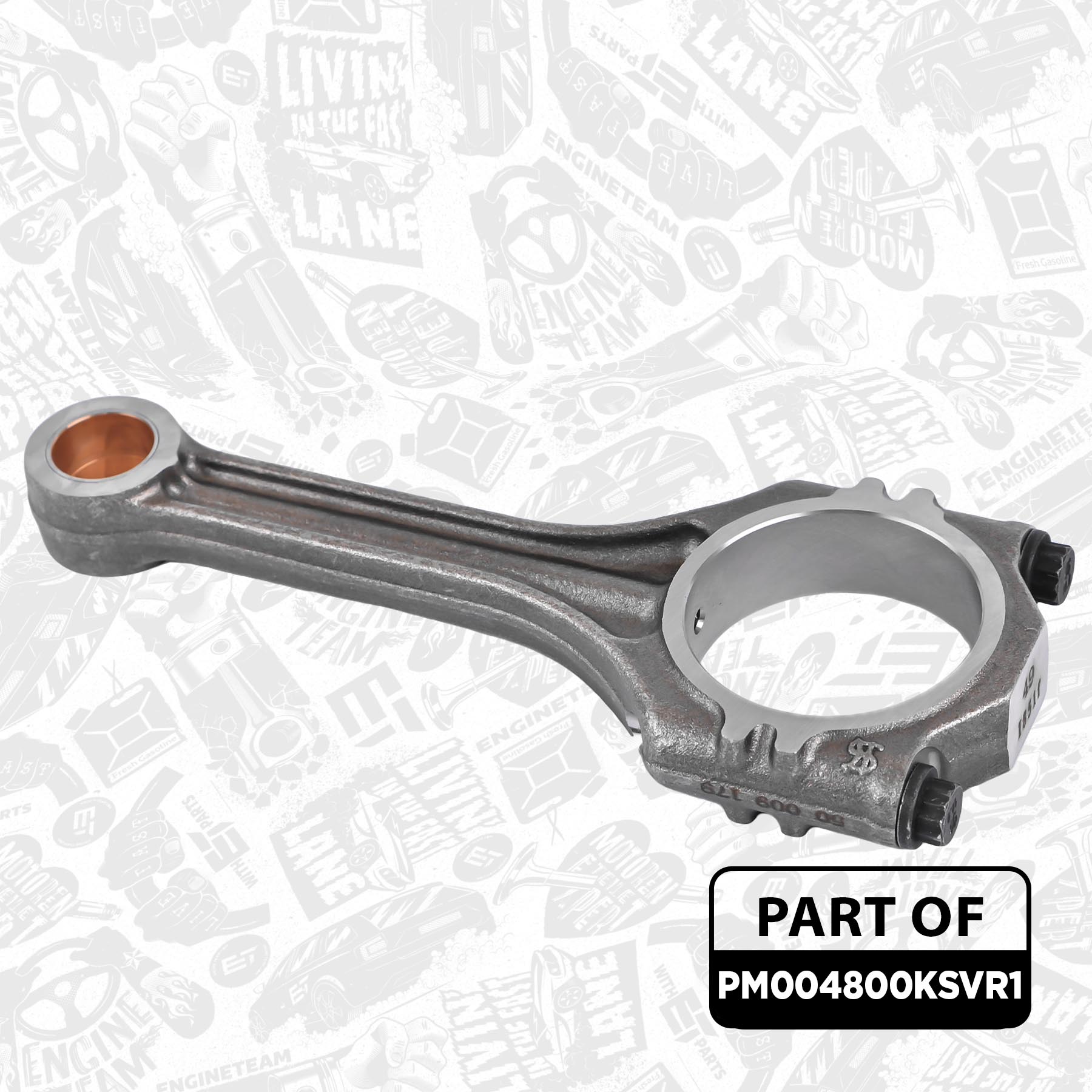

- Connecting rod KOLBENSCHMIDT 50009179

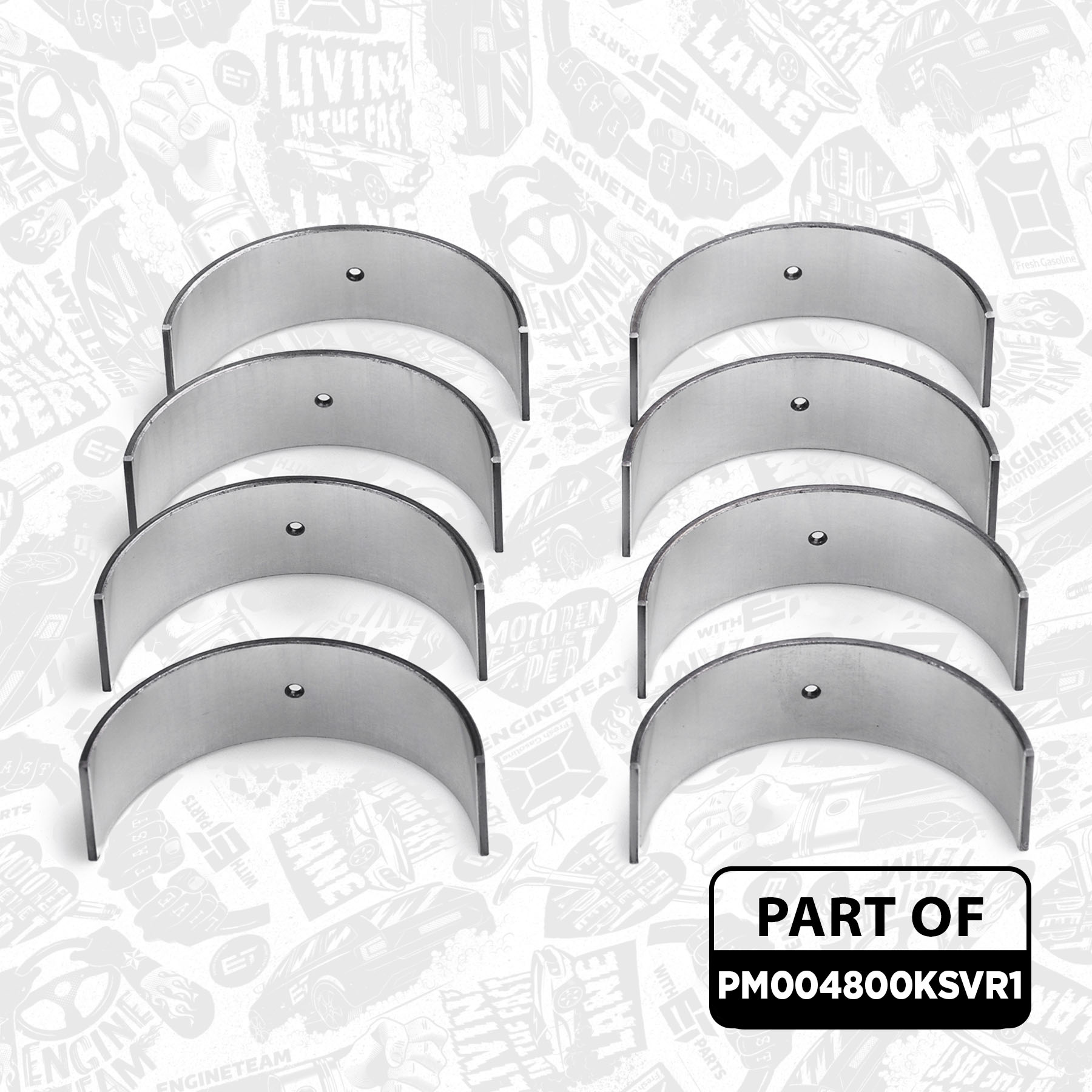

- Set of connecting rod bearing shells KOLBENSCHMIDT 77836600

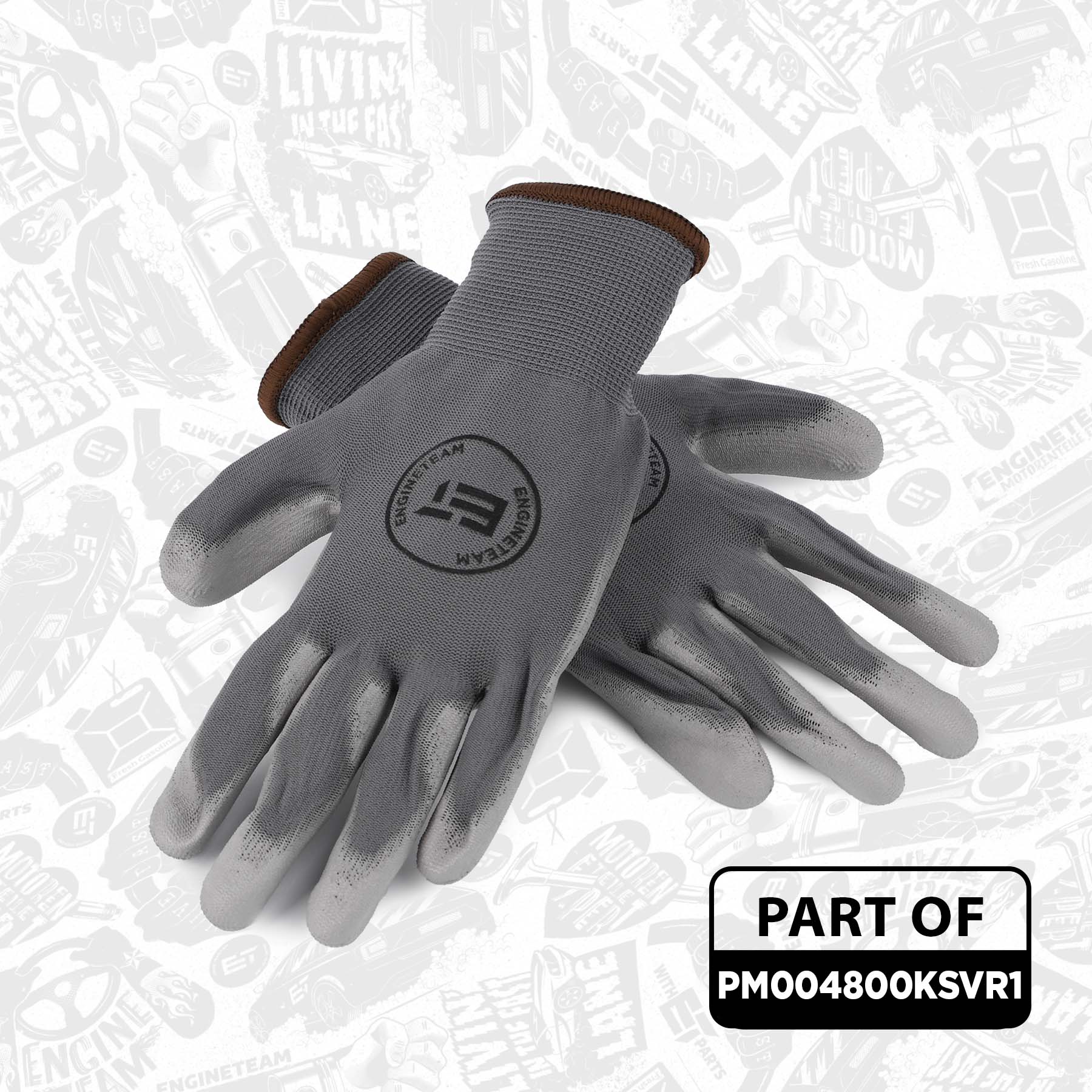

- Cut-resistant gloves L/brown strip ET ENGINETEAM ME0009

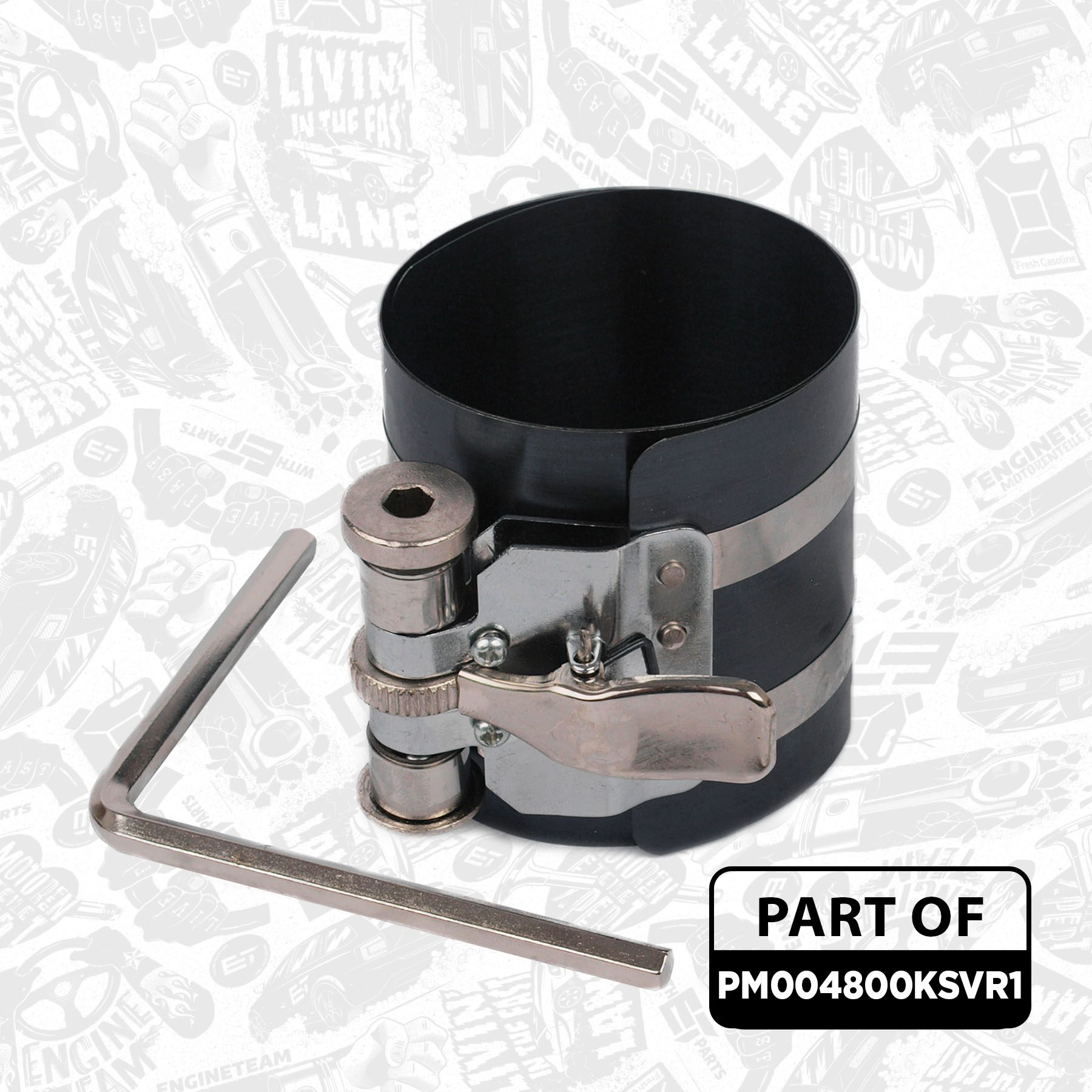

- Tool for fitting the piston with rings into the cylinder KOLBENSCHMIDT 120000416353
- Gasket, oil pan ELRING 030.793
Automatically generated description. Please verify compatibility before ordering.
Categories
Part type
Safety information
Reference Numbers
- SKODA # 036 105 701 AB
- VW # 03C 107 065 AP
- SKODA # 036 105 701 S
- VW # 03C 107 065 AP 001
- SKODA # 03C 105 701 D
- VW # 03C 107 065 AP 003
- SKODA # 036105701AB
- VW # 03C 198 401 A
- SKODA # 036105701S
- VW # 03C 198 401A
- SKODA # 03C105701D
- VW # 03C198401A
- SKODA # 036 105 701AB
- VW # 03C 198 401 D
- SKODA # 036 105 701S
- VW # 03C 198 401D
- SKODA # 03C 105 701D
- VW # 03C198401D
- MAHLE # 029PS20037000
- KOLBENSCHMIDT # 40477600
- NÜRAL # 87-429900-00
- KOLBENSCHMIDT # 50009179
- KOLBENSCHMIDT # 77836600
- ET ENGINETEAM # PM004800KSVR1
Parts list
General information
| Code: | ME0009 |
| Brand: | ET ENGINETEAM |
| Title: | Work gloves, brown stripe |
Criteria
| Material: | Polyester |
| Colour: | brown |
| Stock: | > 25 pcs |
