Code: PM009750ET |
Title: Piston Set
Piston Set - PM009750ET ET ENGINETEAM - 03C103383AE, 03C109287F, 03C103383AH
Car: Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+
| Tag: | boxET – service kit |
| Oversize [mm]: | 0,5 mm |
| Component Number: | PM004950 |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 77 mm |
| Bolt Length [mm]: | 54 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Compression Height [mm]: | 29 mm |
| General Information: |
includes components ET Engineteam + Elring includes components ET Engineteam + Elring [Show less] |
| Stock: | 19 pcs |
Where to buy?
EAN: 8592779048021
Piston Set ET ENGINETEAM PM009750ET for vehicles Audi, Seat, Škoda and Volkswagen with engines 1.4 TFSI, 1.4 TSI and 1.4 GTI, years 2006–2018. Oversize 0.5 mm, Bolt Ø 19 mm, Cyl.Bore 77 mm, Bolt Length 54 mm, Compression Height 29 mm, including piston ring. Suitable for example for Audi A1 / Seat Alhambra / Škoda Fabia II / Volkswagen Golf VI / Volkswagen Tiguan and others. Engines CAVA, CTHA, CTHE, BLG.
OE numbers: 03C103383AE, 03C103383AH, 03C109287F, 03C109287G, 03C109287H, WHT000912.

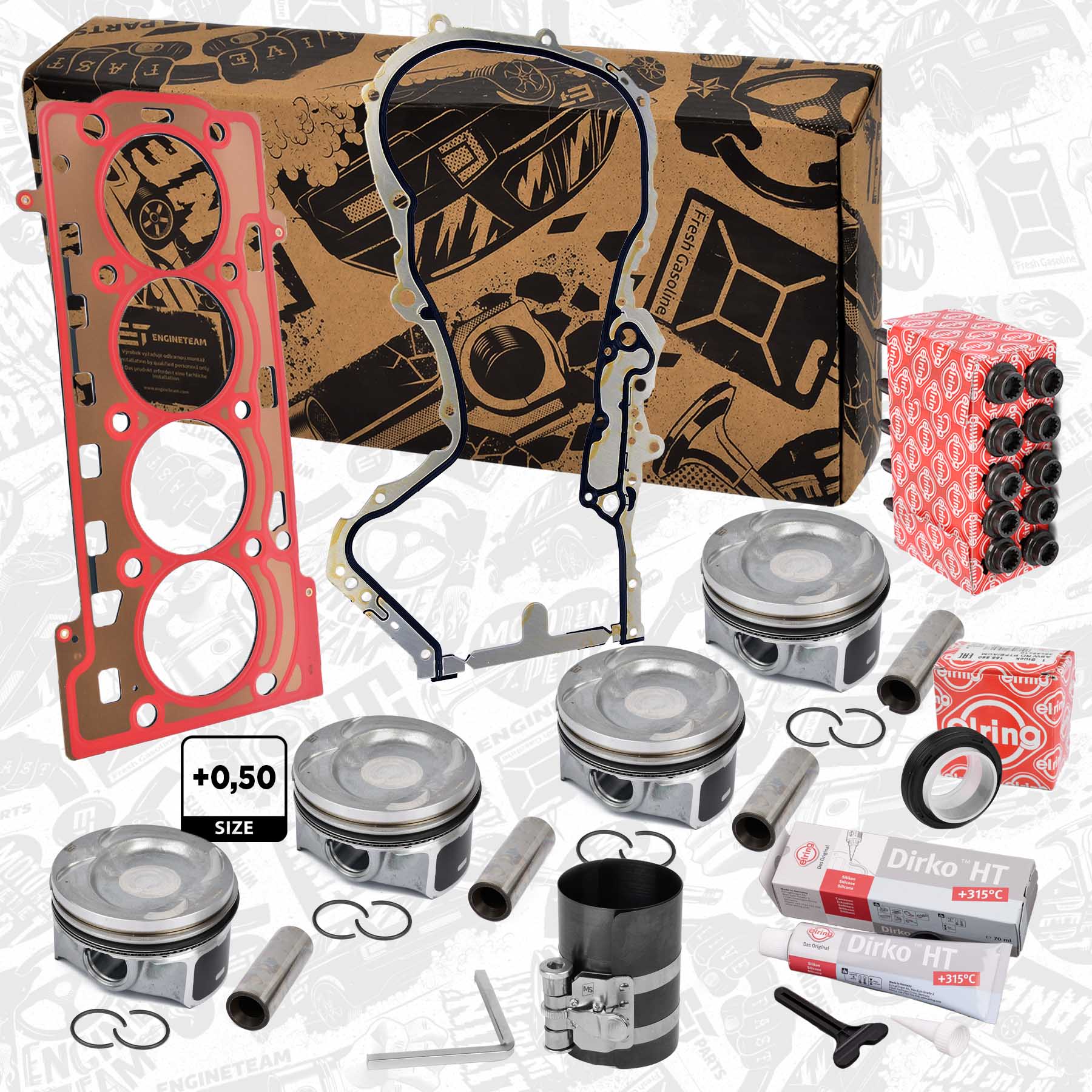

Set includes:

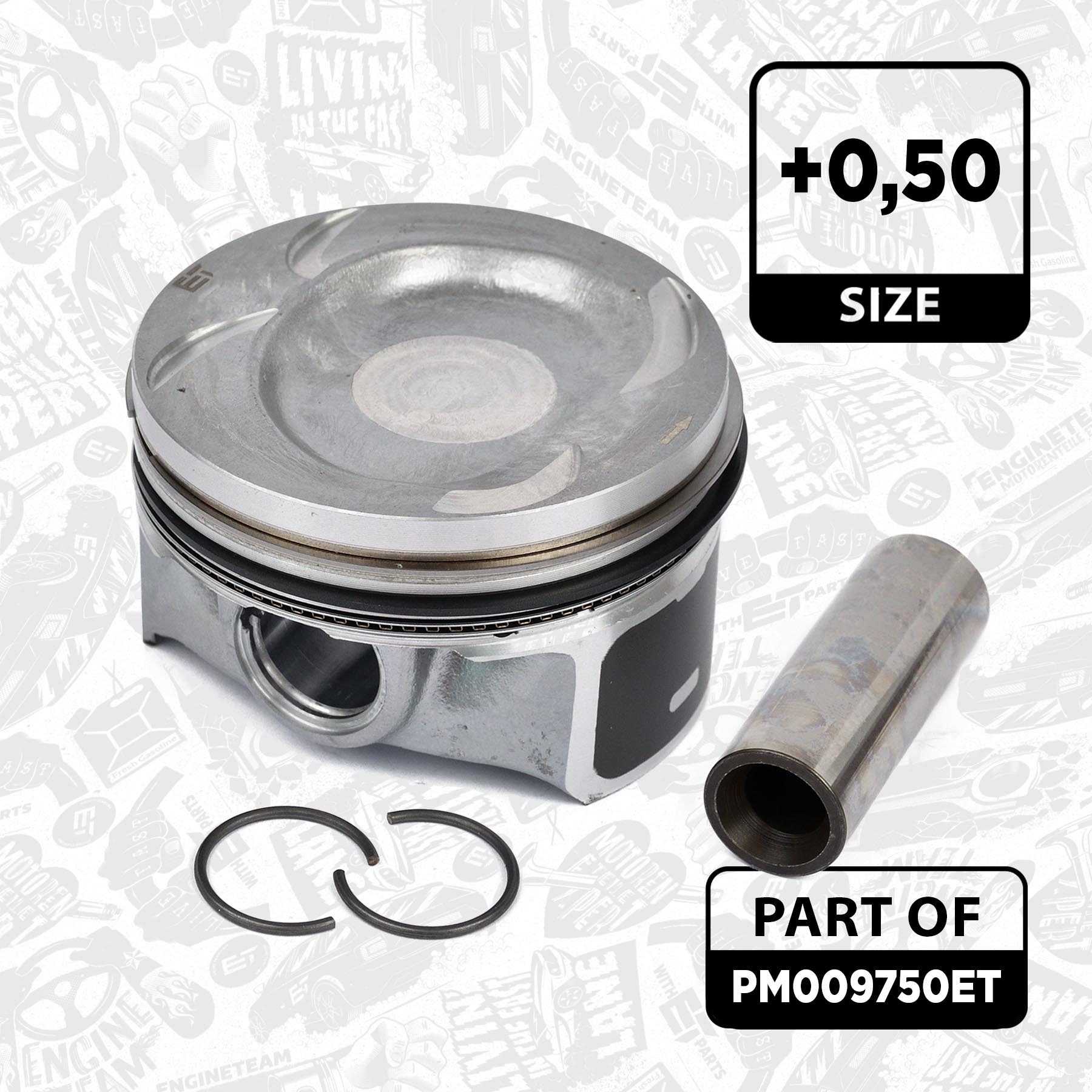

- Piston including rings and pin ET ENGINETEAM PM004950

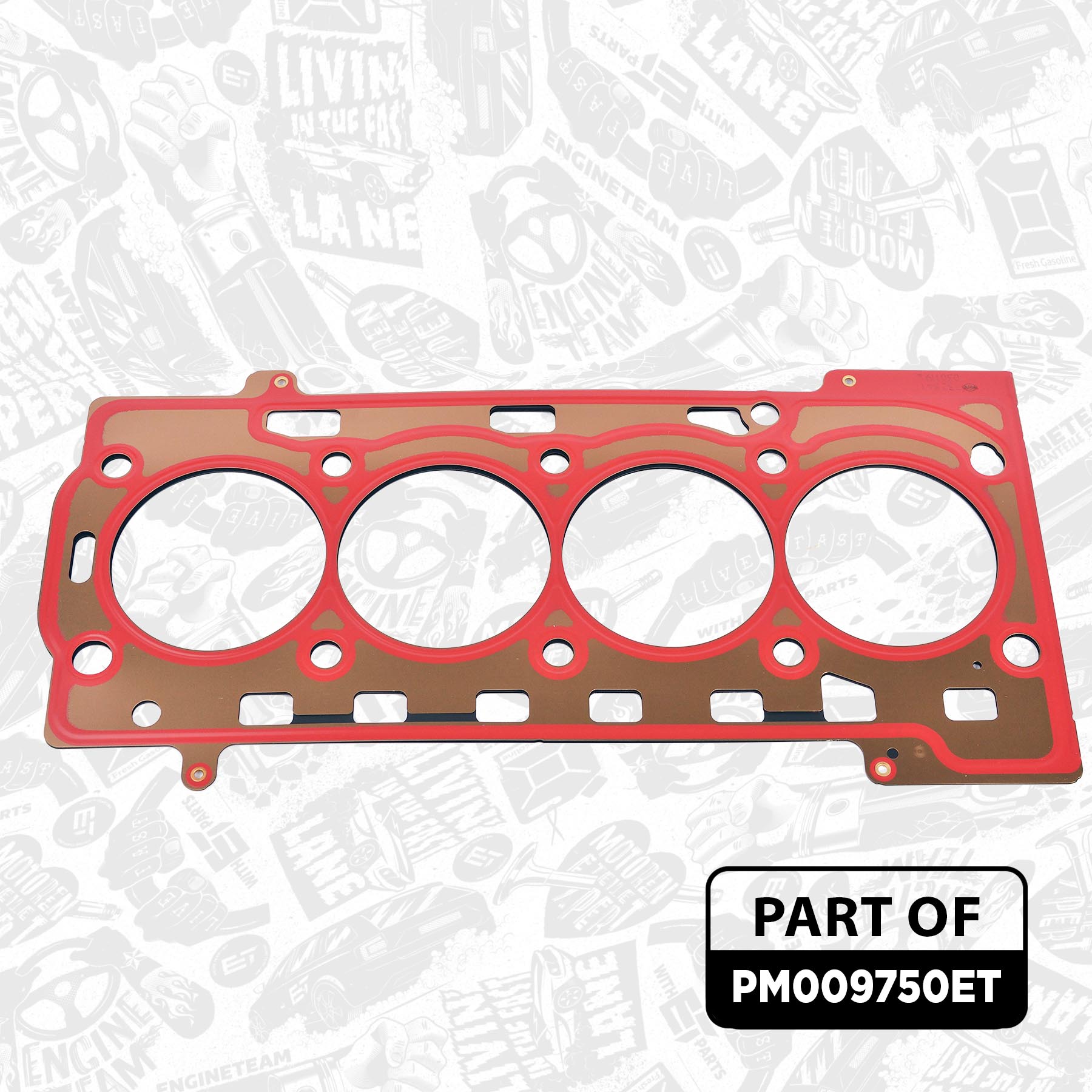

- Seal, cylinder head ELRING 732.841

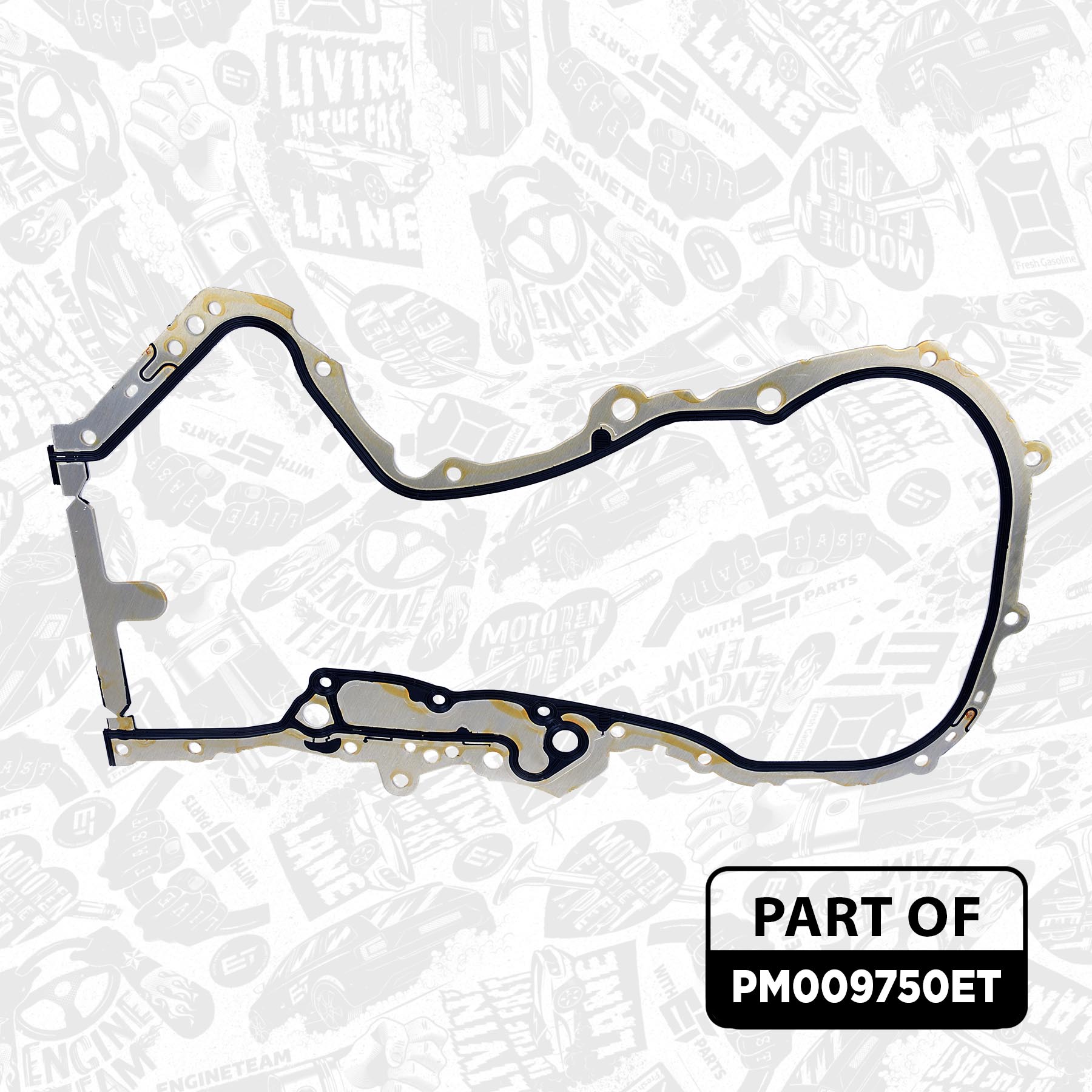

- Seal, timing system ELRING 092.750

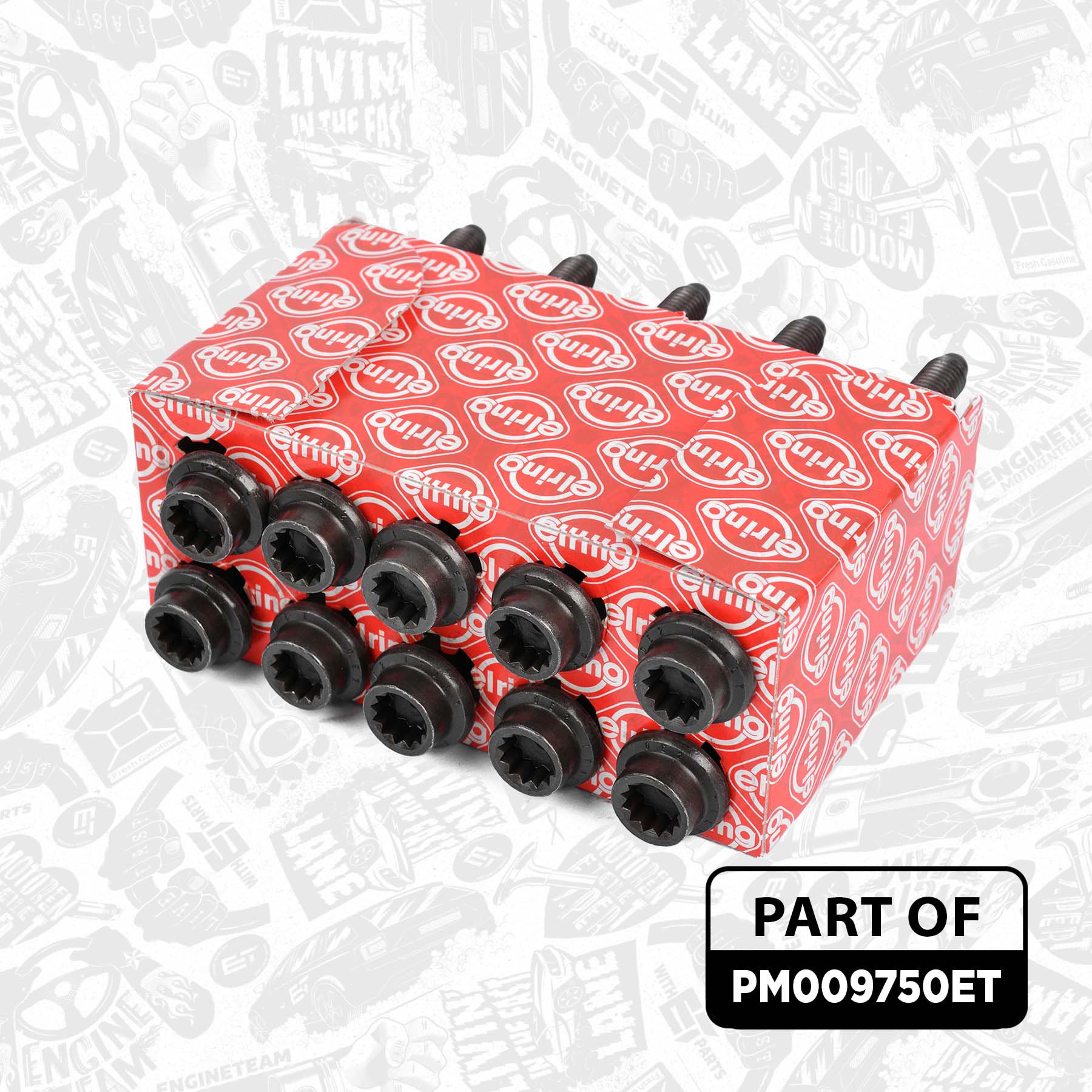

- Cylinder head bolt set ELRING 730.300

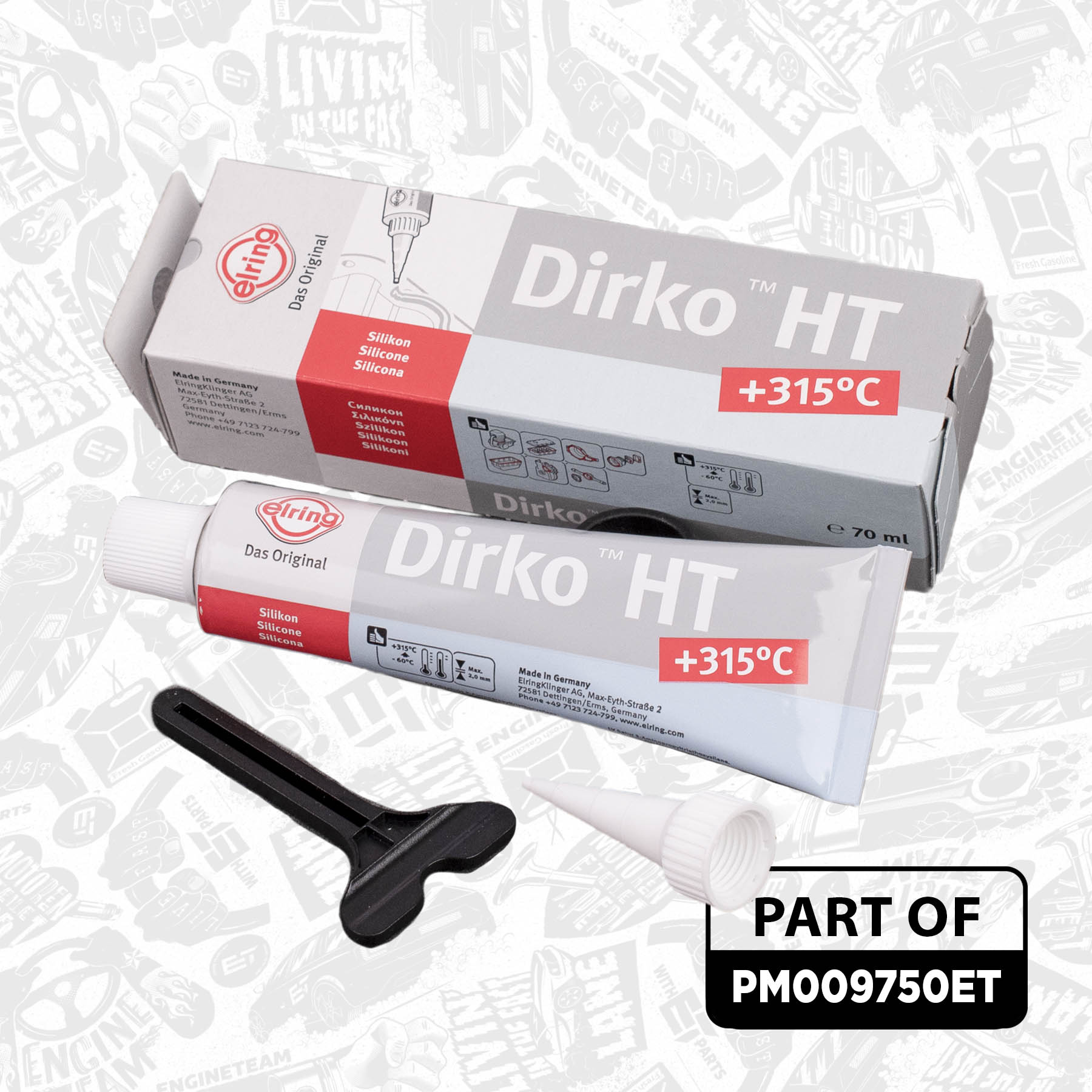

- Sealant - Dirko - grey, 70ml ELRING 036.164

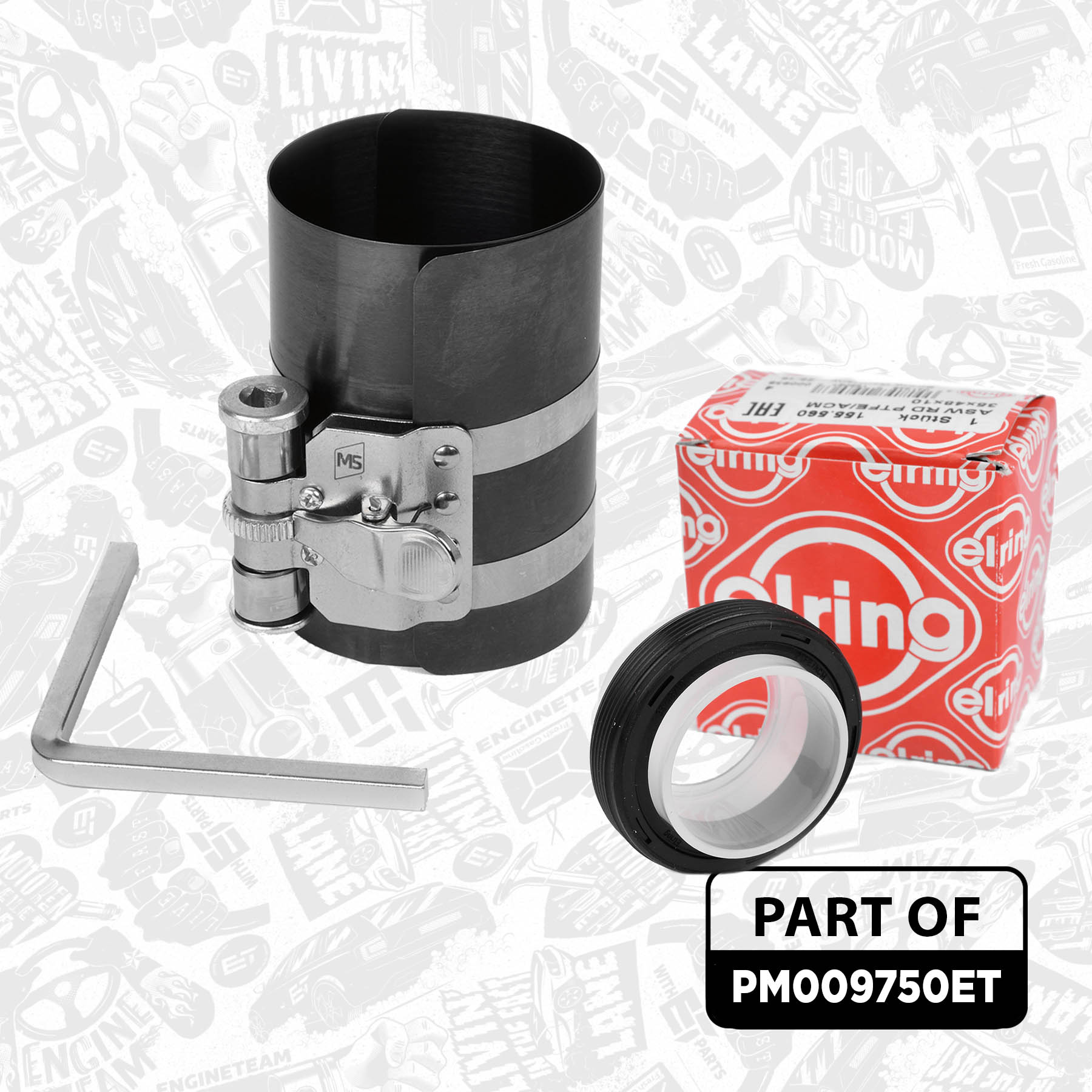

- Sealing ring for shaft, crankshaft ELRING 155.560
- Tool for installing the piston with rings into the cylinder ET ENGINETEAM HP0009
Automatically generated description. Please verify compatibility before ordering.
Categories
Part type
Safety information
Reference Numbers
- AUDI # 03C 103 383 AE
- VW # 03C 109 287 F
- AUDI # 03C 103 383AE
- VW # 03C 109 287F
- AUDI # 03C103383AE
- VW # 03C109287F
- AUDI # 03C 103 383 AH
- VW # 03C 109 287 G
- AUDI # 03C103383AH
- VW # 03C 109 287G
- AUDI # 03C 103 383AH
- VW # 03C109287G
- VW # 03C 109 287 H
- VW # 03C 109 287H
- VW # 03C109287H
- VW # WHT 000 912
- ELRING # 092.750
- ELRING # 660.300
- ELRING # 732.841
- ET ENGINETEAM # PM009750ET
Parts list
General information
| Code: | PM004950 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 29 mm |
| Cylinder Bore [mm]: | 77 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Bolt Length [mm]: | 54 mm |
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
