Code: PM000500 |

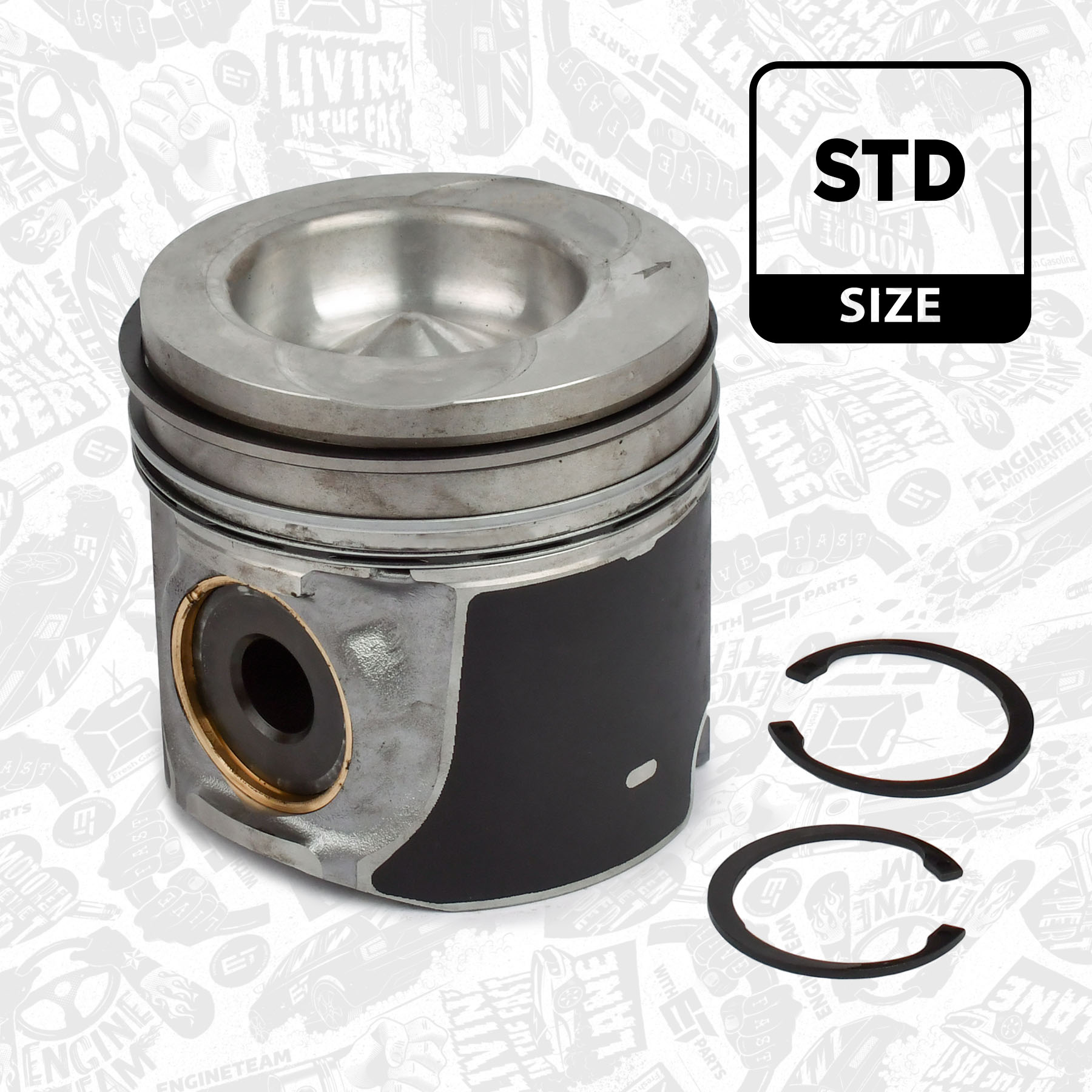

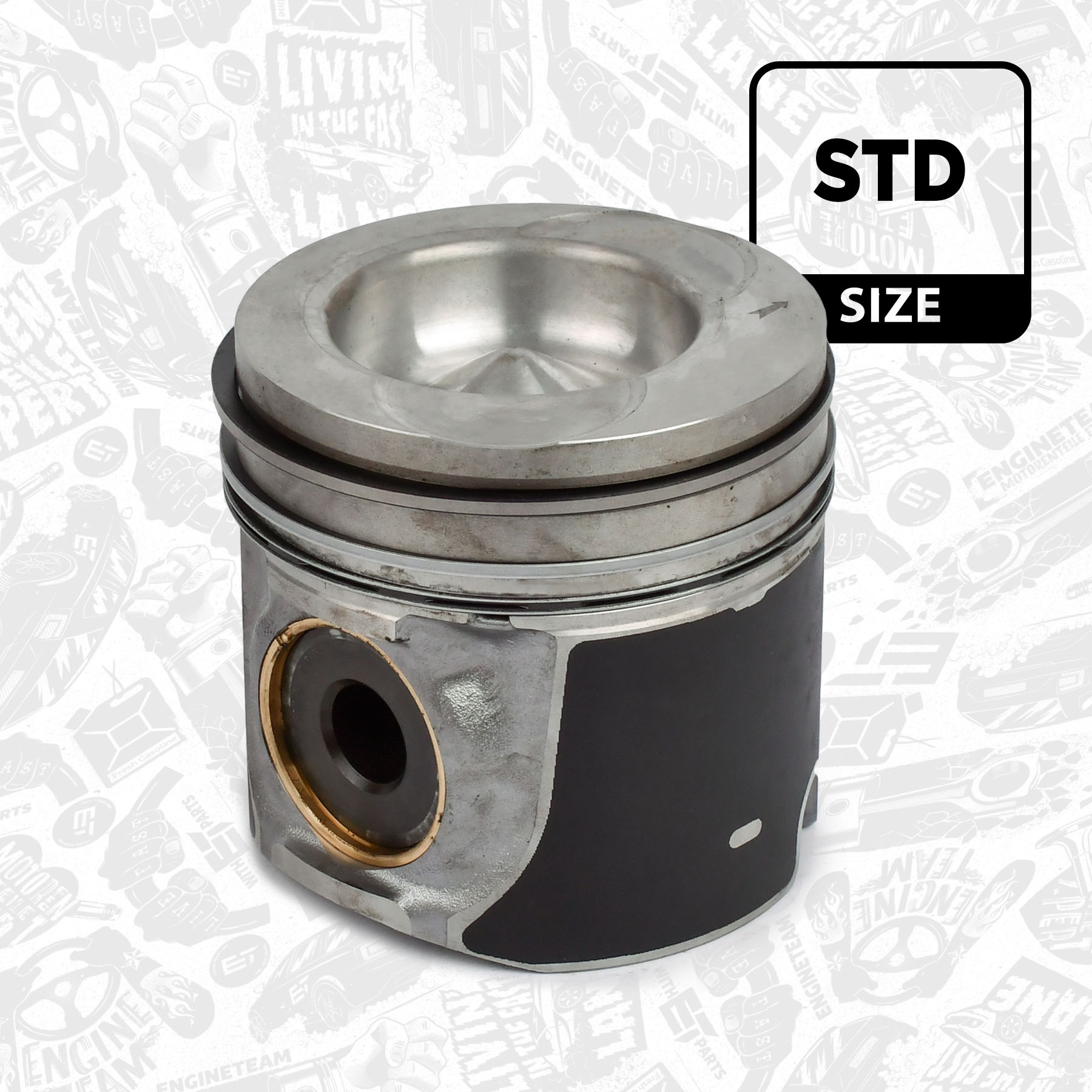

Title: Piston with rings and pin
Piston with rings and pin - PM000500 ET ENGINETEAM - 5001855845, 2095900, 40074600
Car: Renault Truck Ares Kerax Premium Iliade MIDR06.23.56 1998+
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 24,1 mm |
| Compression Height [mm]: | 78,3 mm |
| Cylinder Bore [mm]: | 123 mm |
| Bolt Head Diameter [mm]: | 49,98 mm |
| Recess Diameter [mm]: | 75 mm |
| Bolt Length [mm]: | 97,40 mm |
| Valve Pocket Depth 1 [mm]: | 0,9 mm |
| Valve Pocket Depth 2 [mm]: | 1,2 mm |
| Standard Size [STD]: | yes |
Where to buy?
EAN: 8592779003396
Piston with rings and pin ET ENGINETEAM PM000500 for vehicles Renault Trucks with engines 11.1L and 11.1L, years 1996–2000. Recess Depth (groove) 24,1 mm, Compression Height 78,3 mm, Cyl.Bore 123 mm, Recess Diameter 75 mm, Bolt Ø 49,98 mm, Bolt Length 97,40 mm, Valve Pocket Depth 1 10,9 mm and Valve Pocket Depth 2 1,2 mm. Suitable for example for Renault Trucks ILIADE 385.18, Renault Trucks KERAX 385.26, Renault Trucks KERAX 400.18, Renault Trucks KERAX 400.26 and Renault Trucks PREMIUM Distribution 400.18D/T and others. Engine codes: MIDR 06.23.56 A/41, MIDR 06.23.56 B/41.
OE numbers: 5001855845.
Automatically generated description. Please verify compatibility before ordering.
