Code: PM001100 |

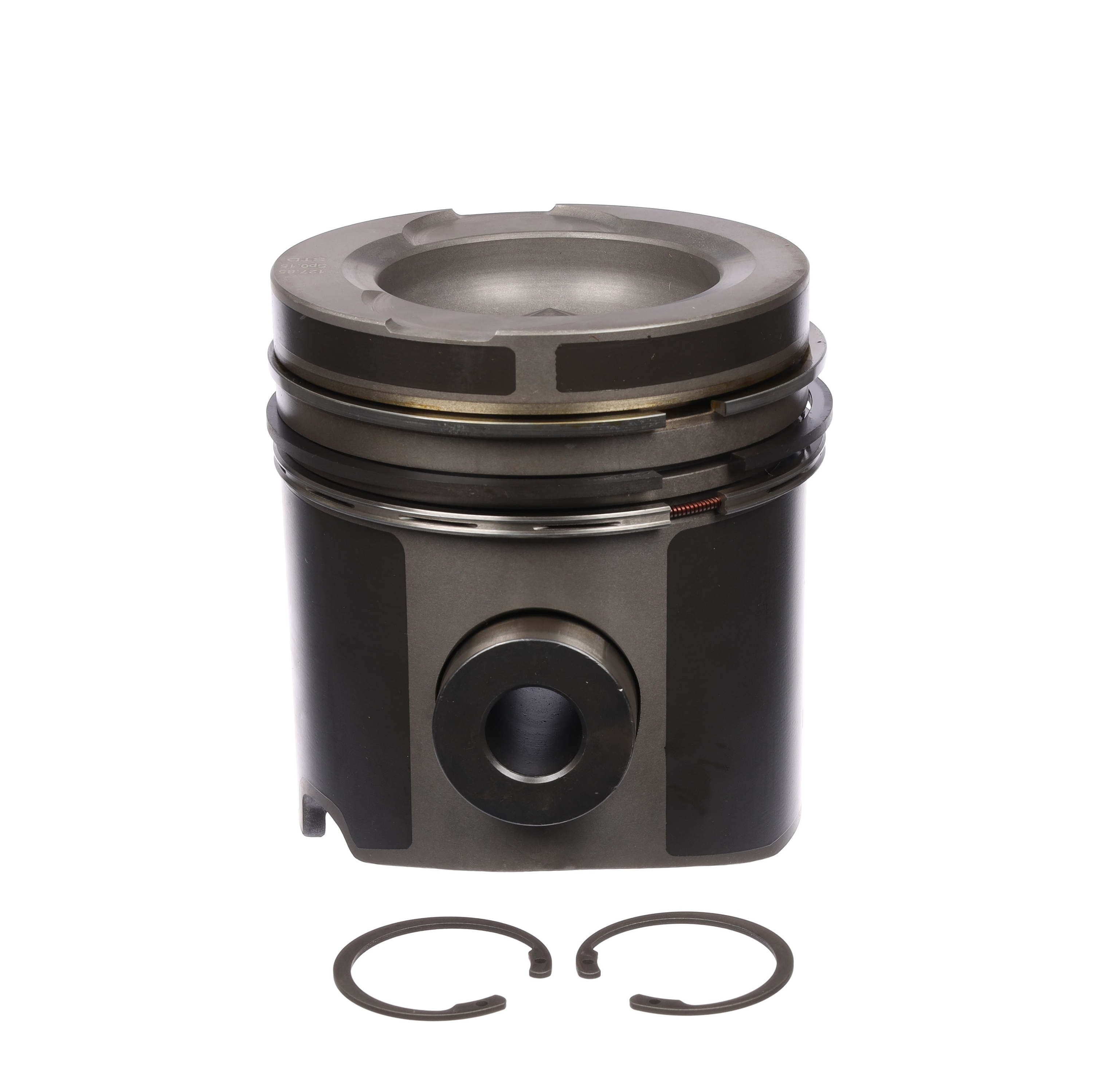

Title: Piston with rings and pin
Piston with rings and pin - PM001100 ET ENGINETEAM - 51025006063, 51025016072, 51025016076
Car: Man E2000/TGA Neoplan Centroliner Starliner Setra Solaris Urbino Van Hool D2865LF* D2865LOH* D2866LF* D2866LOH* D2866LUH* 1995+
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 21,6 mm |
| Compression Height [mm]: | 89,75 mm |
| Cylinder Bore [mm]: | 128 mm |
| Bolt Head Diameter [mm]: | 46 mm |
| Recess Diameter [mm]: | 80 mm |
| Bolt Length [mm]: | 105 mm |
| Valve Pocket Depth 1 [mm]: | 2,1 mm |
| Standard Size [STD]: | yes |
Where to buy?
EAN: 8592779003488
Piston with rings and pin ET ENGINETEAM PM001100 for vehicles MAN with engines 10,0L and 12,0L diesel, years 1994–2001. Recess Depth (groove) 21,6 mm, Compression Height 89,75 mm, Cyl.Bore 128 mm, Bolt Ø 46 mm, Recess Diameter 80 mm, Bolt Length 105 mm, Valve Pocket Depth 2,1 mm. Intended for example for MAN EL EL 262 / MAN F2000 18.273 F, FL, FLL / MAN F2000 19.273 FA / MAN F2000 19.314 FK, FK-L, F-KI, FL-KI, F-NL, FLK / MAN F2000 23.414 FNLLC. Engine codes: D 2865 LF20, D 2865 LF22, D 2866 LF14, D 2866 LUH 07.
OE numbers: 51025006063, 51025016072, 51025016076, 51025110076, 51025110284, 51025117029, 51025117033, 51025117232.
Automatically generated description. Please verify compatibility before ordering.
Part type
Safety information
Reference Numbers
- MAN # 51025006063
- MAN # 51025016072
- MAN # 51025016076
- MAN # 51025110076
- MAN # 51025110284
- MAN # 51025117029
- MAN # 51025117033
- MAN # 51025117232
- MAN # 51025117271
- MAN # 51025117275
- OE Germany # 020320286600
- MAHLE # 2283100
- MEC-DIESEL # 858280
- NÜRAL # 87-283100-80
- KOLBENSCHMIDT # 90578600
- ET ENGINETEAM # PM001100
