Code: PM001950 |

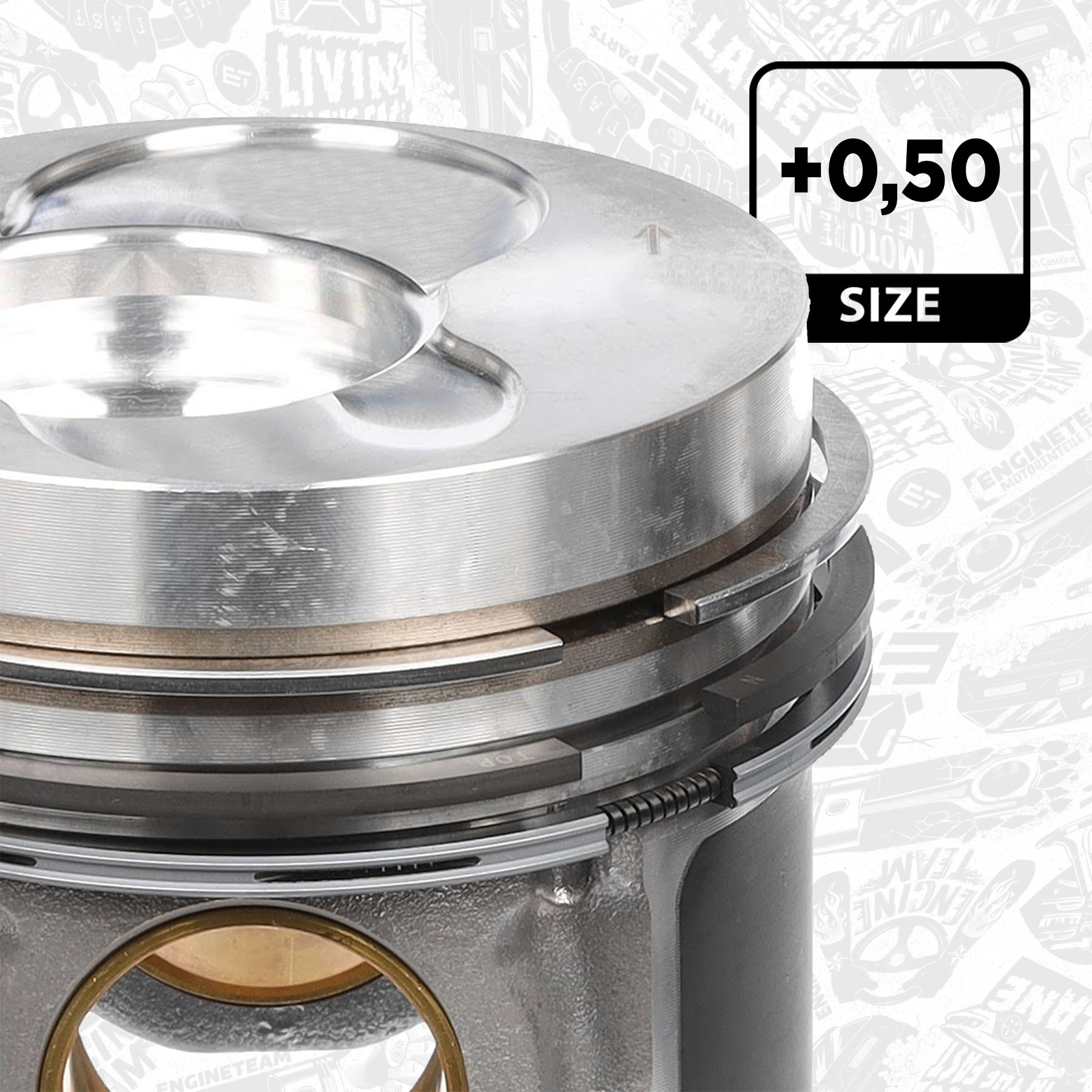

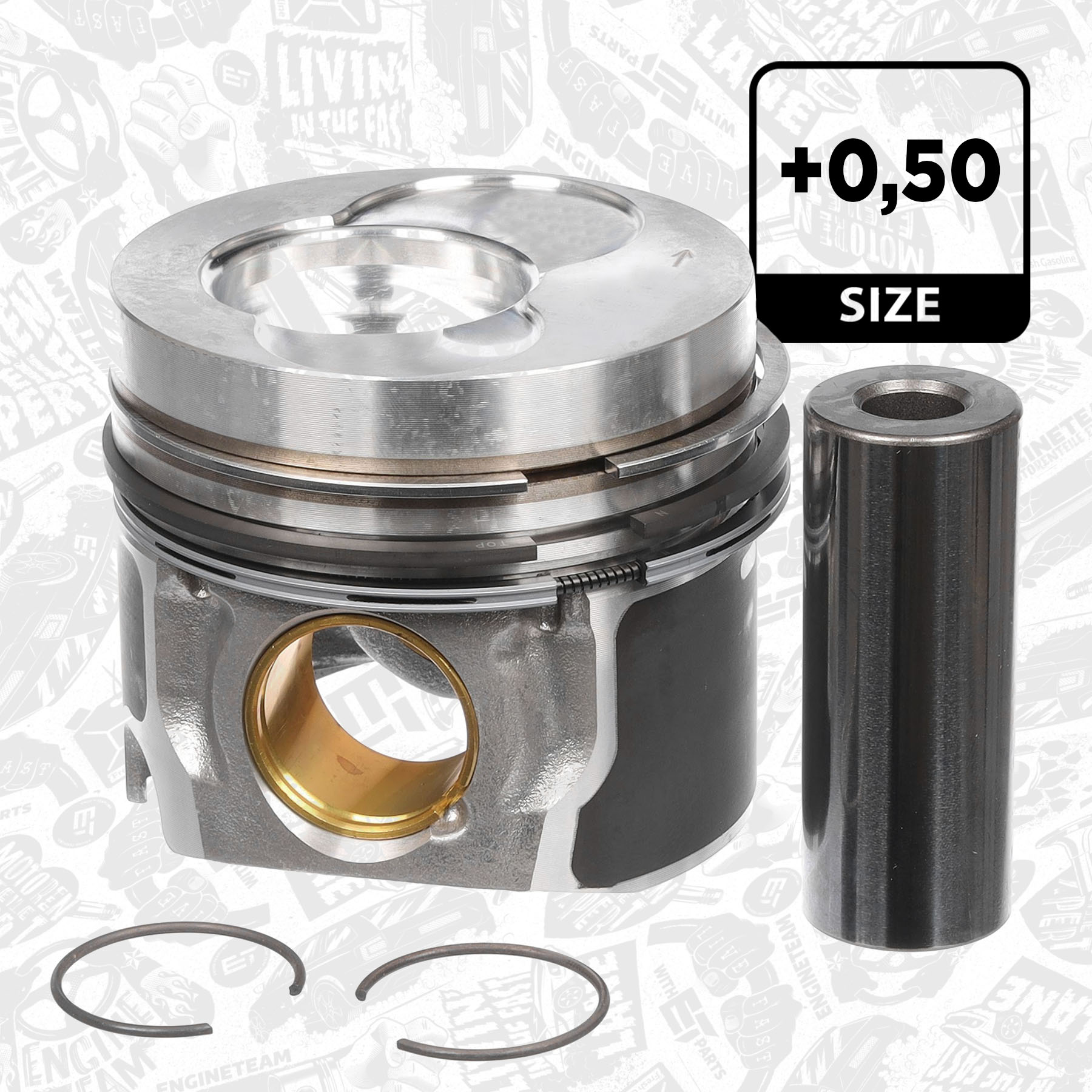

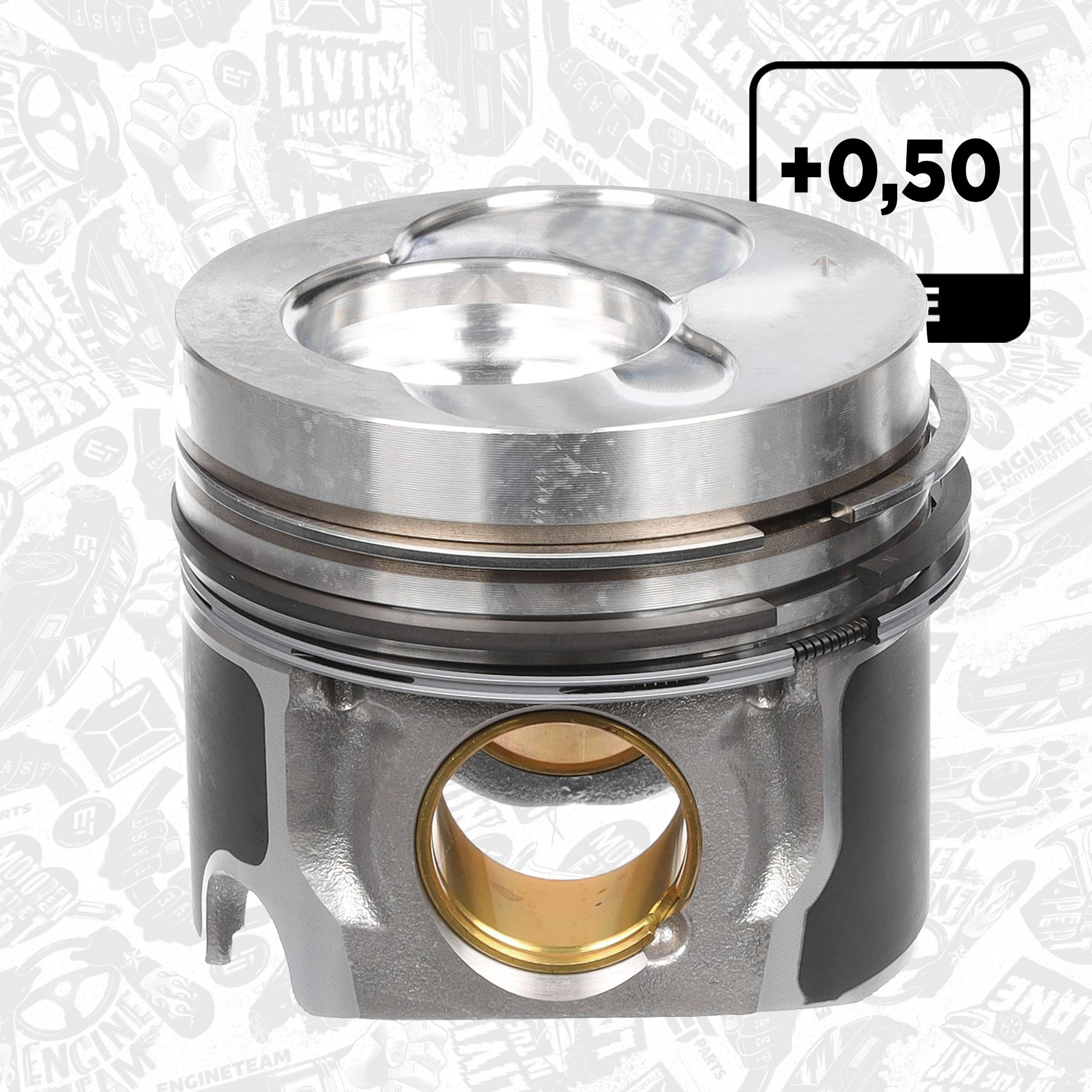

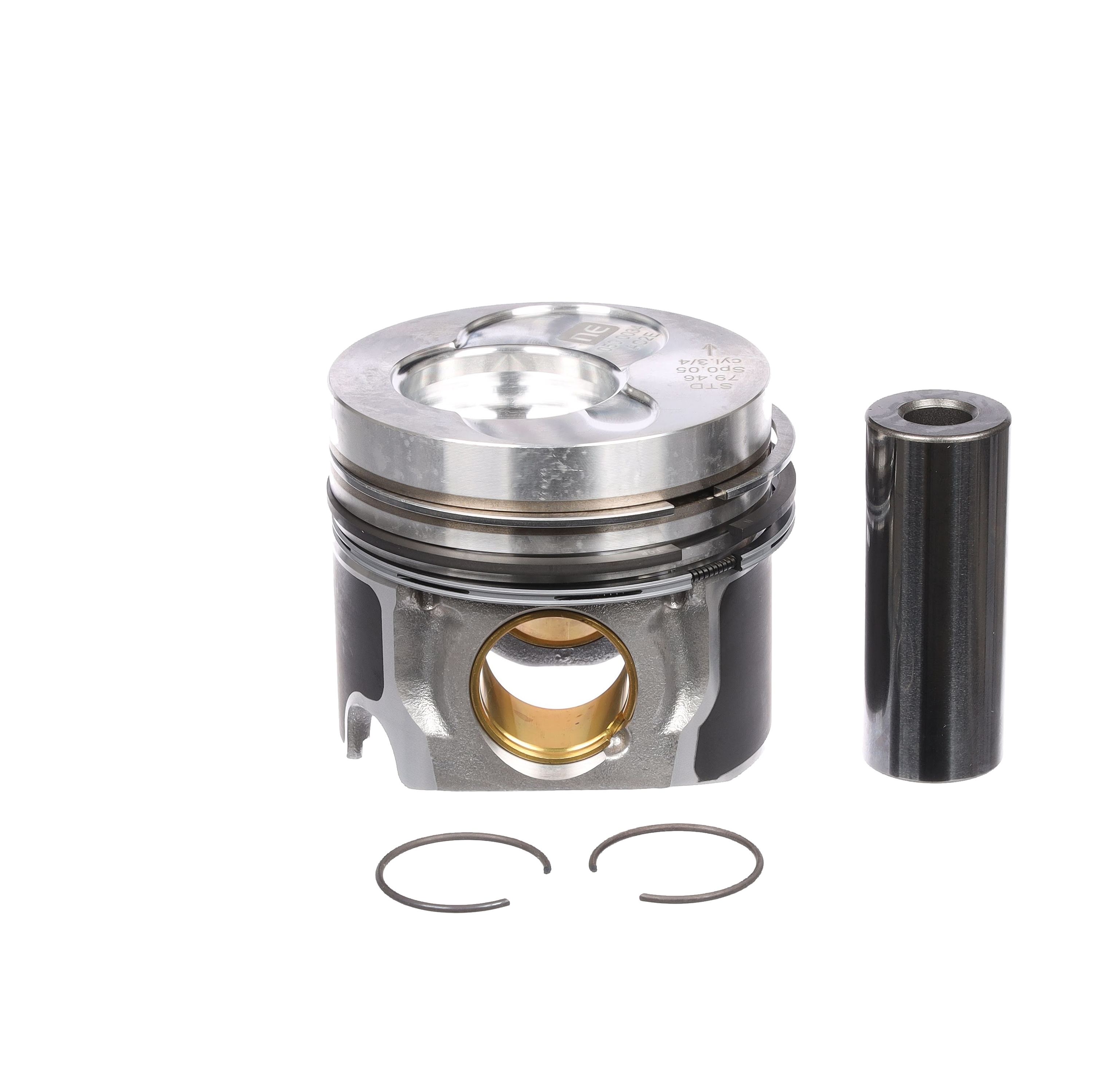

Title: Piston with rings and pin
Piston with rings and pin - PM001950 ET ENGINETEAM - 0308702, 99471620
Car: Skoda VW Audi Seat 1,9TDI 2000-2009
| Fitting Position: | for cylinder 3-4 |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Recess Depth 1 [mm]: | 17,5 mm |
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 45,8 mm |
| Cylinder Bore [mm]: | 80 mm |
| Recess Diameter [mm]: | 38 mm |
| Bolt Length [mm]: | 66 mm |
| Valve Pocket Depth 1 [mm]: | 1,1 mm |
Where to buy?
EAN: 8592779008827
Piston including piston rings and gudgeon pin ET ENGINETEAM PM001950 for vehicles Audi, Ford, Seat, Škoda and Volkswagen with engines 1.9 TDI and 1.9 TDI quattro, years 2000–2009. For cylinders 3-4, with piston ring and with a piston ring carrier, Recess Depth (groove) 17,5 mm, Oversize 0,5 mm, Compression Height 45,8 mm, Cyl.Bore 80 mm, Recess Diameter 38 mm, Bolt Length 66 mm and Valve Pocket Depth 1 1,1 mm. Suitable for example for Audi A3 1.9 TDI / Seat Ibiza 1.9 TDI / Škoda Superb 1.9 TDI / Volkswagen Golf IV 1.9 TDI and others. Engines ASZ, AVF, AWX, ARL.
Automatically generated description. Please verify compatibility before ordering.
