Code: PM002400 |

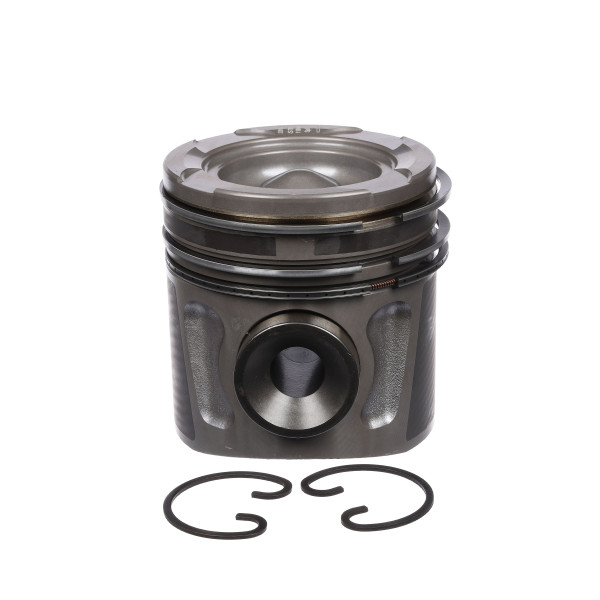

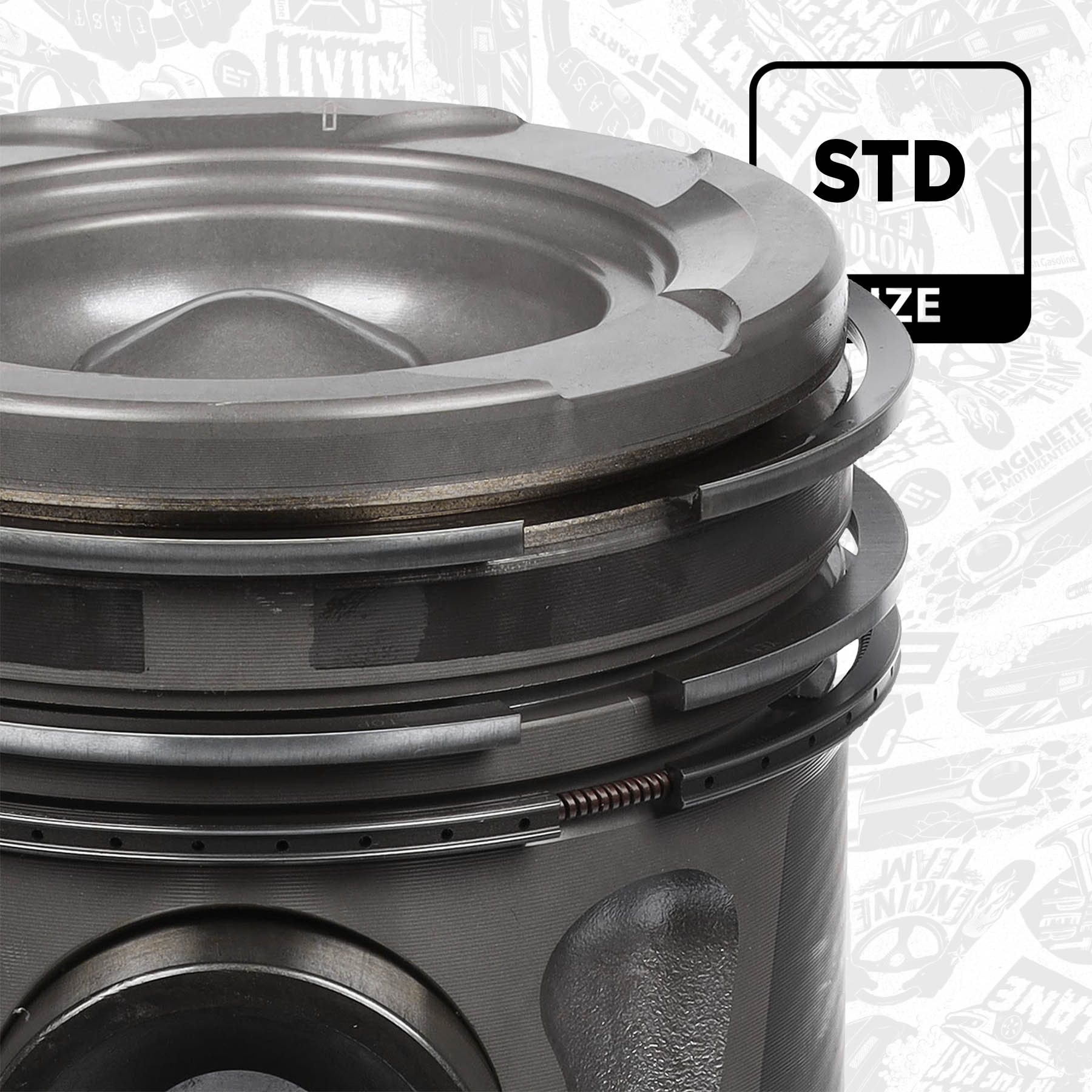

Title: Piston with rings and pin
Piston with rings and pin - PM002400 ET ENGINETEAM - 51.02500.6161, 51.02500.6260, 51.02501.6087
Car: MAN TGA/TGS D 2066 2004+
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 20 mm |
| Compression Height [mm]: | 76,8 mm |
| Cylinder Bore [mm]: | 120 mm |
| Recess Diameter [mm]: | 70 mm |
| Bolt Length [mm]: | 96 mm |
| Valve Pocket Depth 1 [mm]: | 2 mm |
| Valve Pocket Depth 2 [mm]: | 1,5 mm |
| Standard Size [STD]: | yes |
| Stock: | 10 pcs |
Where to buy?
EAN: 8592779013937
Piston with rings and pin ET ENGINETEAM PM002400 for vehicles MAN with engines 10.5L Diesel, years 2004–2009. Recess Depth 20 mm, Compression Height 76,8 mm, Cyl.Bore 120 mm, Recess Diameter 70 mm, Bolt Length 96 mm, Valve Pocket Depth 1: 2 mm and Valve Pocket Depth 2: 1,5 mm. Suitable for example for MAN HOCL 18.430 HOCL / MAN SL II SL 353 / MAN TGA 18.350 / MAN TGA 18.390 / MAN TGA 26.430. Engines D 2066 LF 01, D 2066 LF 02, D 2066 LF 03, D 2066 LF 06.
OE numbers: 51.02500.6161, 51.02500.6260, 51.02501.6087, 51.02501.6088.
Automatically generated description. Please verify compatibility before ordering.
