Code: PM003201 |

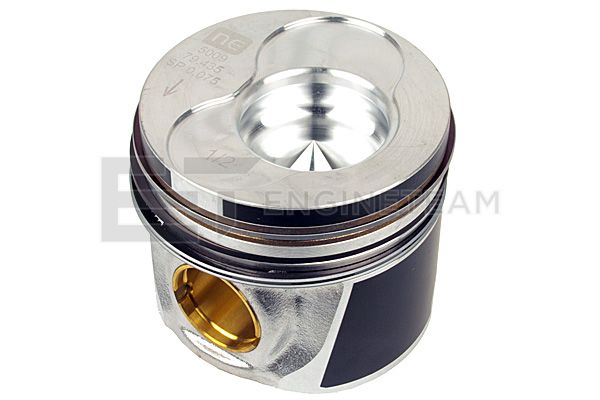

Title: Piston with rings and pin
Piston with rings and pin - PM003201 ET ENGINETEAM
Car: Skoda VW Audi Seat 1,4TDI 1999+
| Fitting Position: | for cylinder 1-2 |
| Supplementary Article/Supplementary Info: | with piston rings |
| Recess Depth 1 [mm]: | 17,65 mm |
| Oversize [mm]: | 1 mm |
| Compression Height [mm]: | 45,8 mm |
| Cylinder Bore [mm]: | 80,51 mm |
| Recess Diameter [mm]: | 37,90 mm |
| Bolt Length [mm]: | 63 mm |
| Valve Pocket Depth 1 [mm]: | 1,1 mm |
Where to buy?
EAN: 8592779014958
Piston with rings and pin ET ENGINETEAM PM003201 for vehicles Audi, Seat, Škoda and Volkswagen with 1.4 TDI engine in years 2000–2009. Fitting Position for cylinders 1–2, with piston ring, Recess Depth 1 17.65 mm, Oversize 1 mm, Compression Height 45.8 mm, Cyl.Bore 80.51 mm, Recess Diameter 37.90 mm, Bolt Length 63 mm, Valve Pocket Depth 1 1.1 mm. Suitable for example for Audi A2 1.4 TDI, Seat Arosa 1.4 TDI, Škoda Fabia 1.4 TDI and Volkswagen Polo 1.4 TDI and others. Engines AMF, BHC, BMS and BNM.
Automatically generated description. Please verify compatibility before ordering.
