Code: RS0049 |
Title: Timing Chain Kit
Timing Chain Kit - RS0049 ET ENGINETEAM - 03C109571F, 03C109509P, 03C109469K
Car: Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+
| Tag: | boxET – service kit |
| Supplementary Article/Supplementary Info: | with gears |
| Number of chain links: | 130 |
| Chain Type: | Silent Chain |
| Stock: | > 25 pcs |
Where to buy?
EAN: 8592779019434
A universal timing chain kit Engineteam for camshaft drive with variable adjustment capability. It uses a VVT hub for valve timing to set optimal power settings depending on the variable engine speed. Suitable for engines BAG, BLF, BLP, BLG, BMY, CAVA, CAVB, CAXA, CDGA, CTJA... for Škoda Superb / Fabia / Roomster, VW Passat / Golf / Polo, Audi A1 / A3, Seat Alhambra / Leon / Ibiza etc. with 1.4 and 1.6 TSI, FSI, TFSI engines since 2007.
This kit intentionally does not include a two-row timing gear for camshaft and oil pump drive. With regard to different motorizations, there are several variants of the timing gear. It can be purchased separately or as part of practical sets for oil pump drive.
ET Engineteam has been producing and supplying spare parts for the aftermarket since 2007. It is part of the European TecDoc catalog. ET Engineteam products are subject to strict ISO standards and their quality is comparable to OE products.

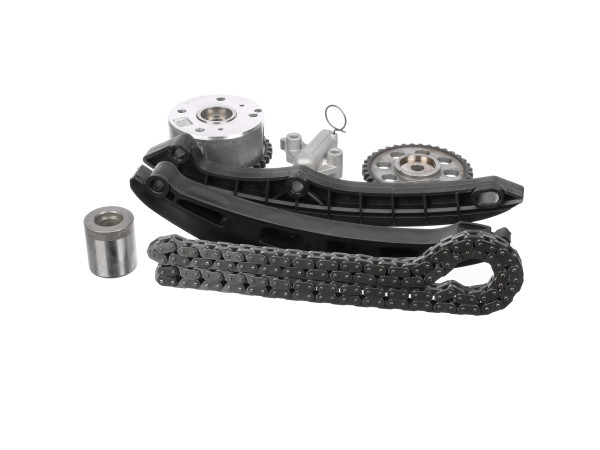

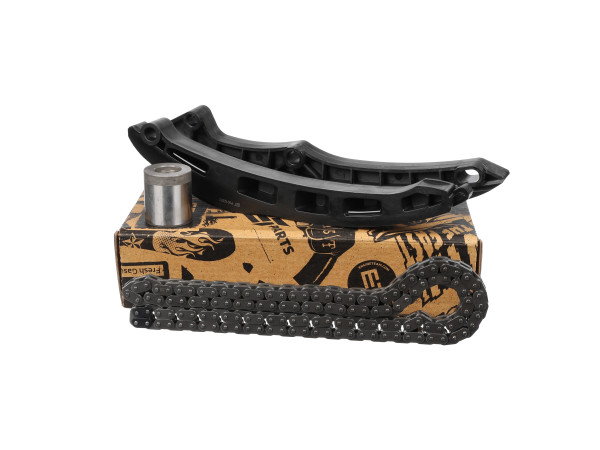

The timing kit RS0049 includes:

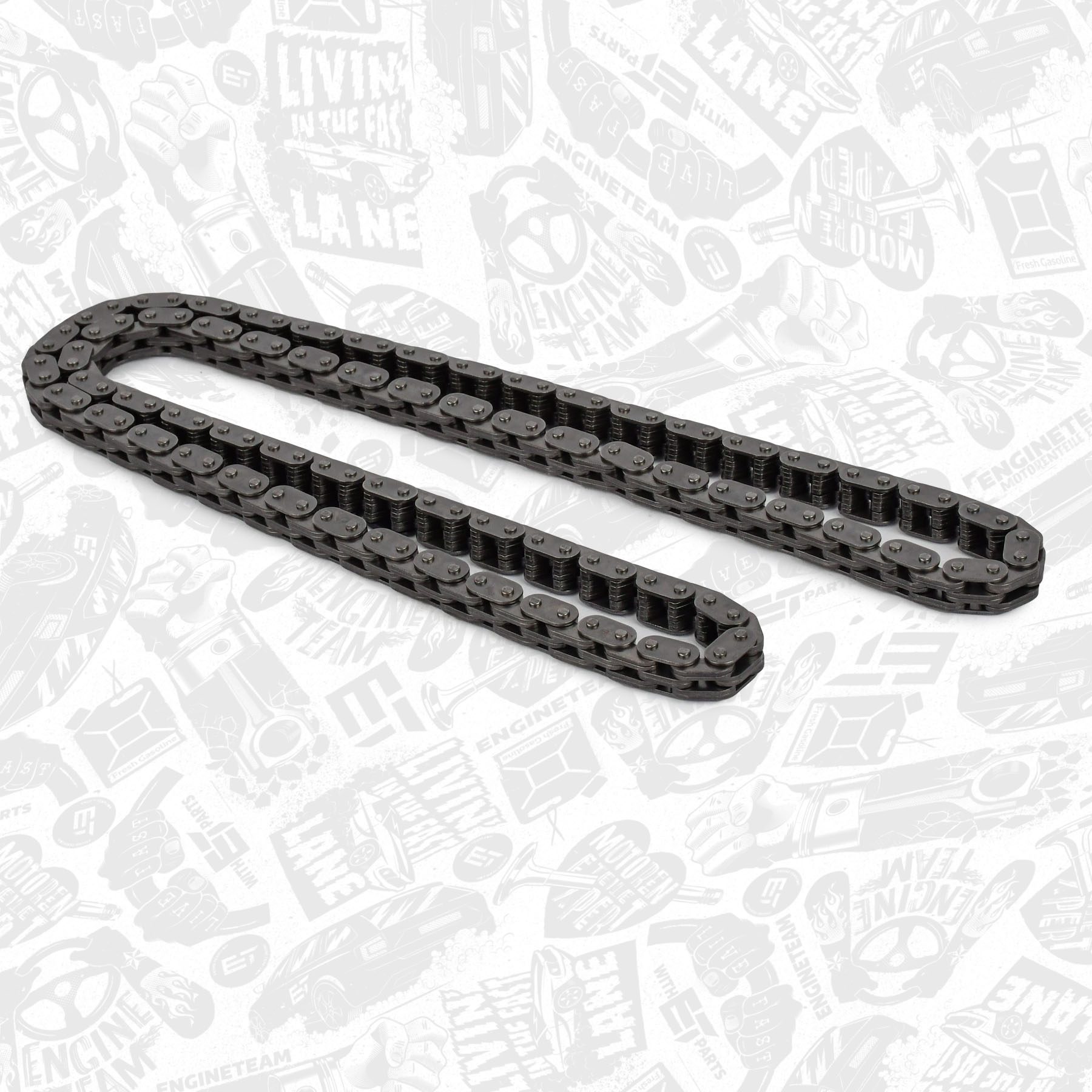

- Timing chain RC0003
- Timing gear RG0005 – 36 teeth
- Adjuster – VVT hub VT0001

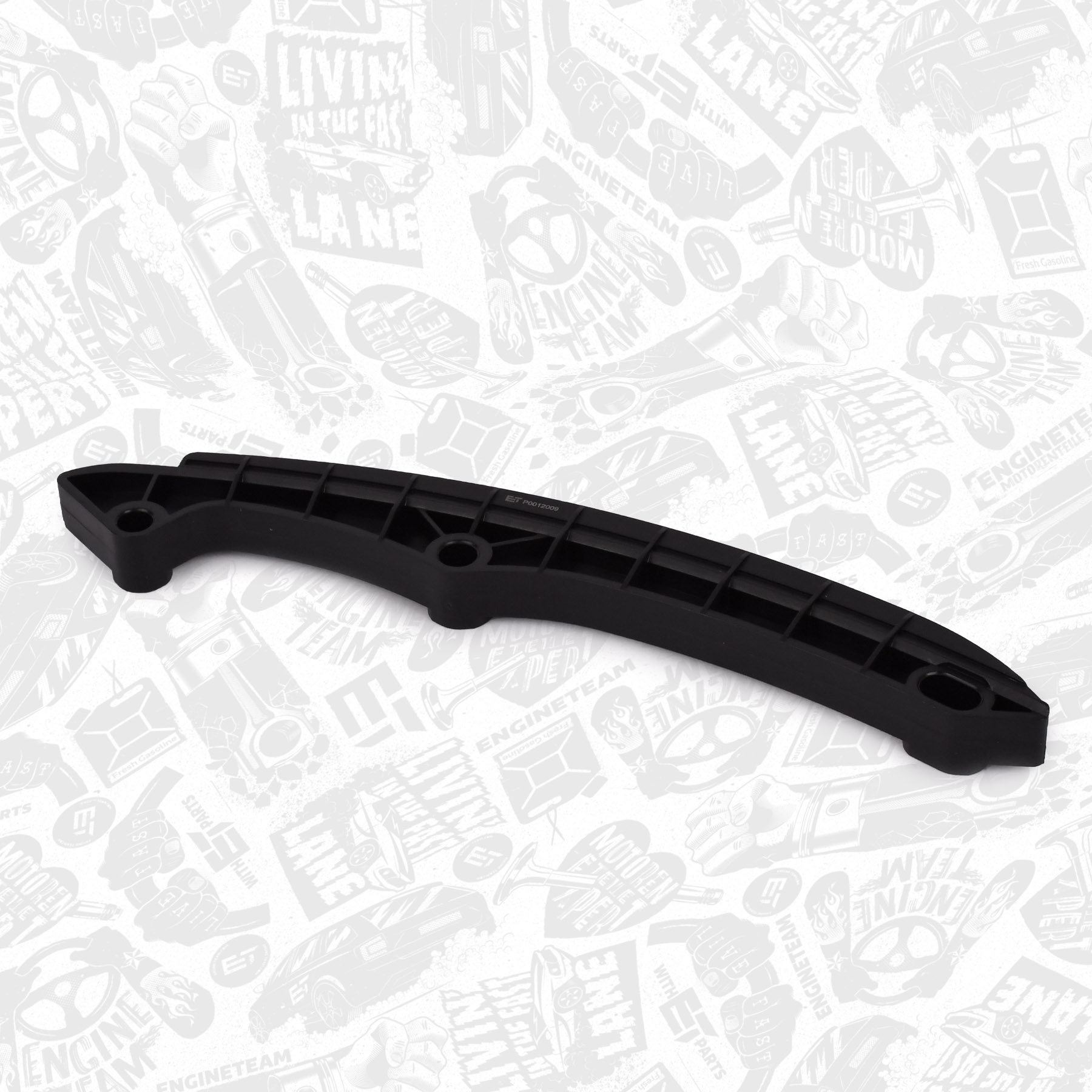

- Chain guide rail RL0001 – 1 hole
- Chain guide rail RL0002 – 3 holes

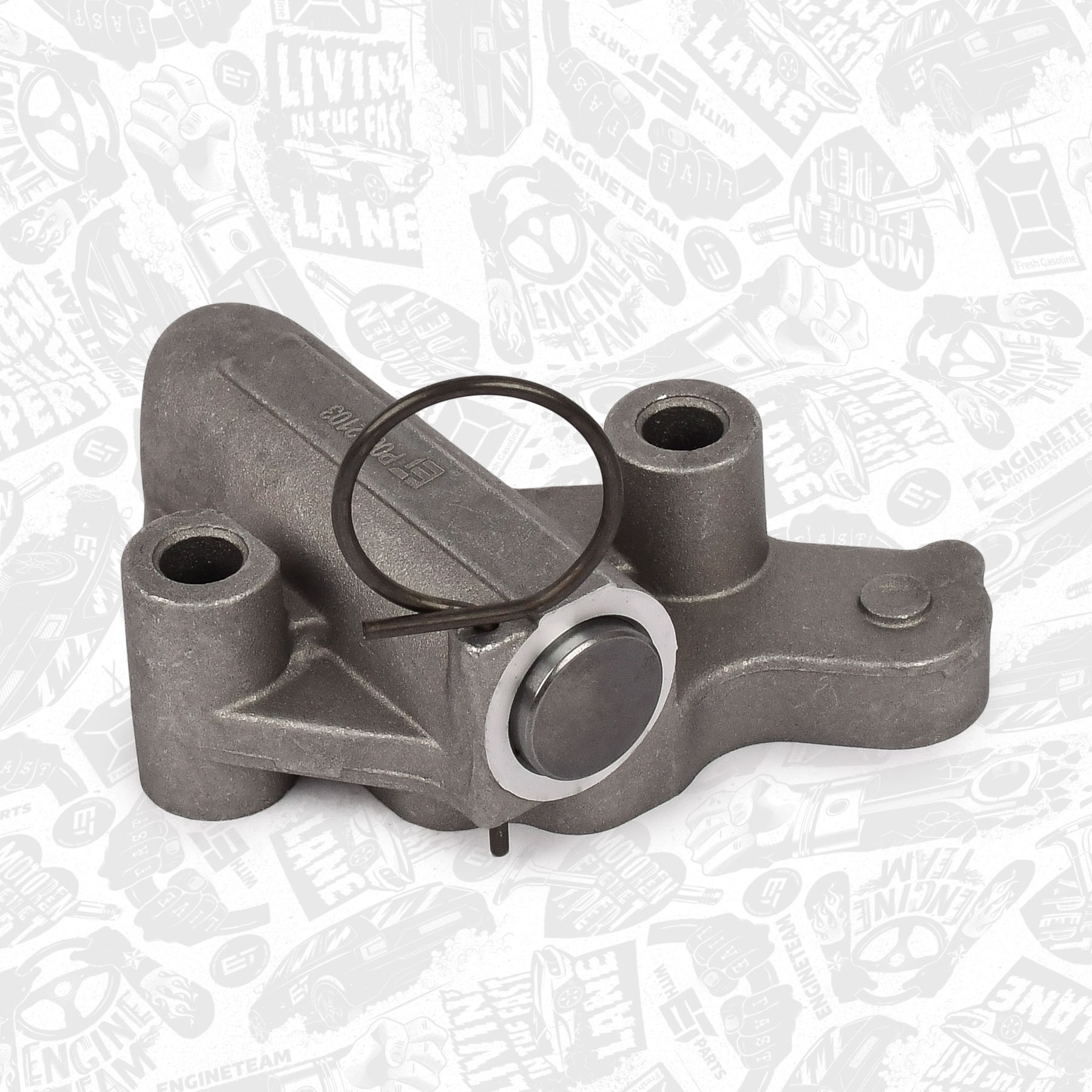

- Chain tensioner RT0003
- Timing hub RG0007
Documents
Categories
Safety information
Reference Numbers
- VW # 03C109571F
- VW # 03C109509P
- VW # 03C109469K
- VW # 03C109469J
- VW # 03C109158A
- VW # 03C109158
- VW # 03C109507Q
- VW # 03C109507AH
- VW # 03C109507M
- VW # 03C109507BA
- VW # 03C105159F
- VW # 03C105159E
- VW # 03C105159C
- VW # 03C105159H
- VW # 03C109509L
- VW # 03C109509M
- VW # 03C109469L
- VW # 03C109088E
- VW # 03C109088B
- VW # 03C109088F
- VW # 03C 109 507 M
- VW # 03C 109 088 B
- VW # 03C 109 088 E
- VW # 03C 109 469 L
- VW # 03C 109 509 M
- VW # 03C 109 509 L
- VW # 03C 105 159 H
- VW # 03C 105 159 C
- VW # 03C 105 159 E
- VW # 03C 109 088 F
- VW # 03C 109 507 AH
- VW # 03C 109 507 Q
- VW # 03C 109 158
- VW # 03C 109 158 A
- VW # 03C 109 469 J
- VW # 03C 109 469 K
- VW # 03C 109 509 P
- VW # 03C 109 571 F
- VW # 03C 109 507 BA
- VW # 03C 105 159 F
- ET ENGINETEAM # RS0049
