Code: PM009850ETVR1 |
Title: Piston Set
Piston Set - PM009850ETVR1 ET ENGINETEAM - 03C103383AE, 03C109287F, 03C103383AH
Car: Skoda VW Audi Seat 1,4TFSI 16V BLG CAVA BMY 2010+
| Tag: | boxET – service kit |
| Oversize [mm]: | 0,5 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Cylinder Bore [mm]: | 77 mm |
| Bolt Length [mm]: | 48 mm |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info: | with mounting tool |
| Compression Height [mm]: | 29 mm |
| General Information: |
includes components ET Engineteam + Elring includes components ET Engineteam + Elring [Show less] |
| Stock: | 19 pcs |
Where to buy?
EAN: 8592779048052
Piston Set ET ENGINETEAM PM009850ETVR1 for vehicles SEAT and Volkswagen with a 1.4 TSI engine, years 2006–2018. Repair size of Oversize 0,5 mm, Bolt Ø 19 mm, Cyl.Bore 77 mm, Bolt Length 48 mm, Compression Height 29 mm; piston including piston ring and with installation tools. Suitable for example for SEAT Alhambra 1.4 TSI / Volkswagen Golf Plus 1.4 TSI / Volkswagen Golf V 1.4 TSI / Volkswagen Tiguan 1.4 TSI / Volkswagen Touran 1.4 TSI and others. Engine codes: CAVA, BLG, BMY, CAVB.
OE numbers: 03C103383AE, 03C103383AH, 03C109287F, 03C109287G, 03C109287H, WHT000912, 038103085E.

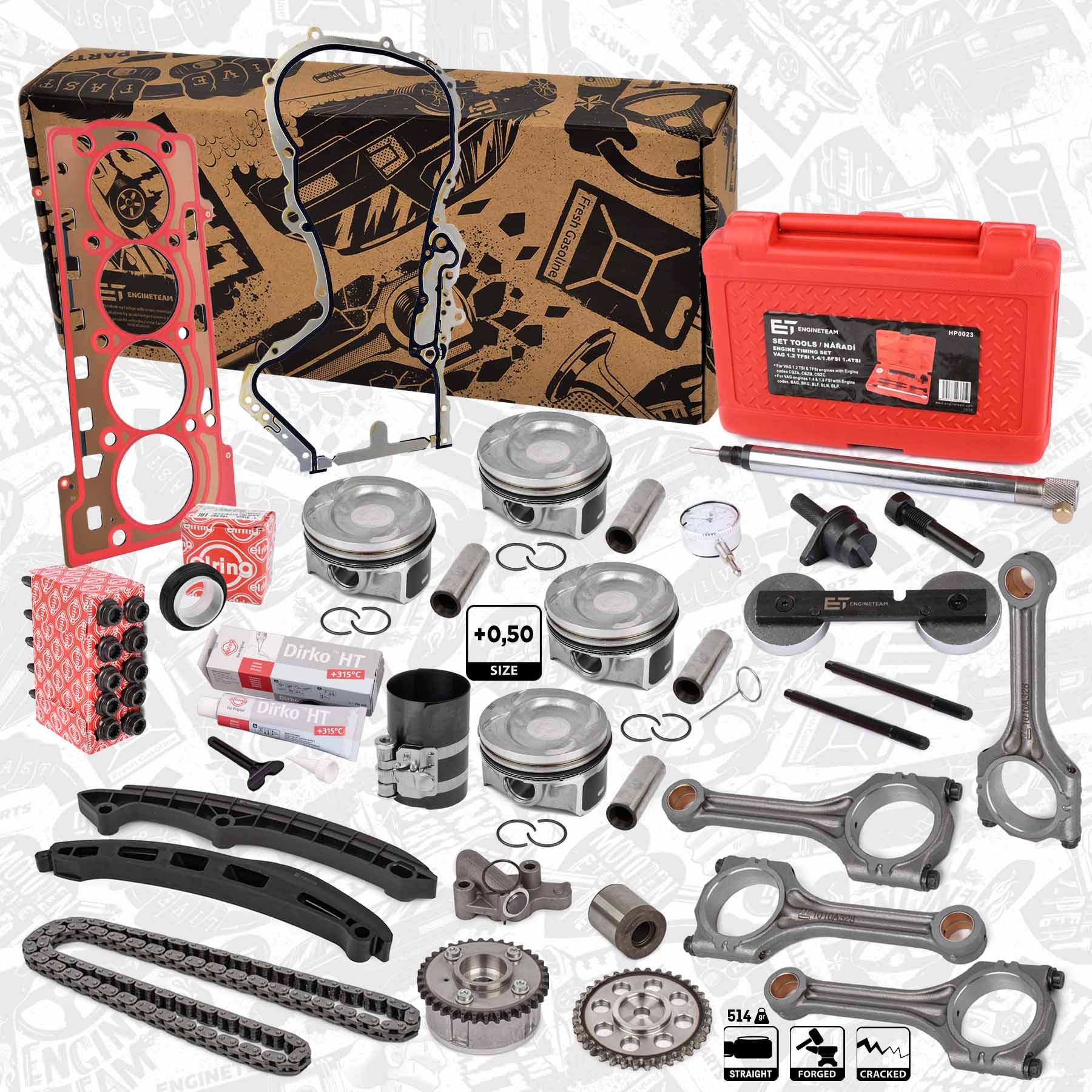

Set includes:
- Piston including rings and pin ET ENGINETEAM PM004950

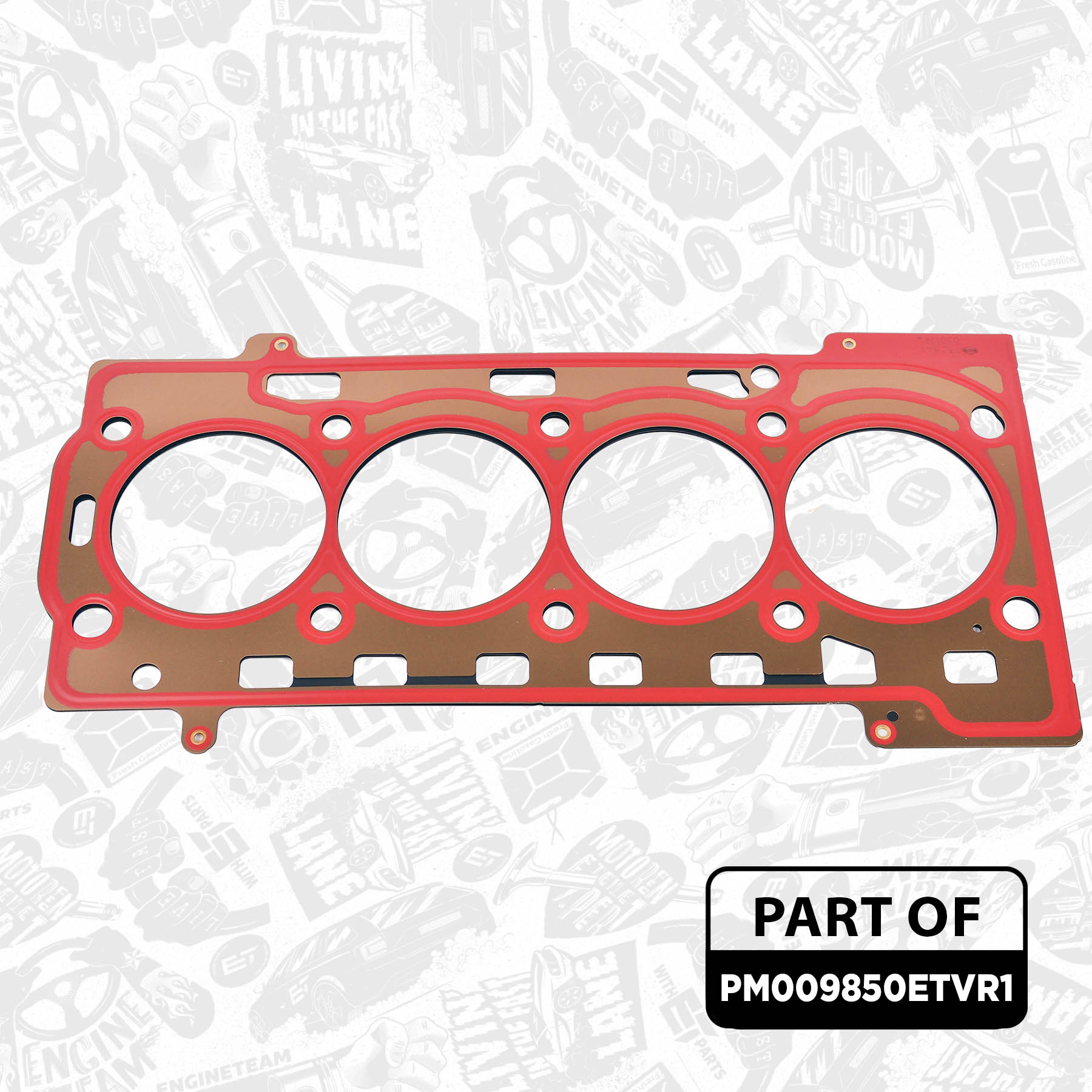

- Gasket, cylinder head ELRING 732.841

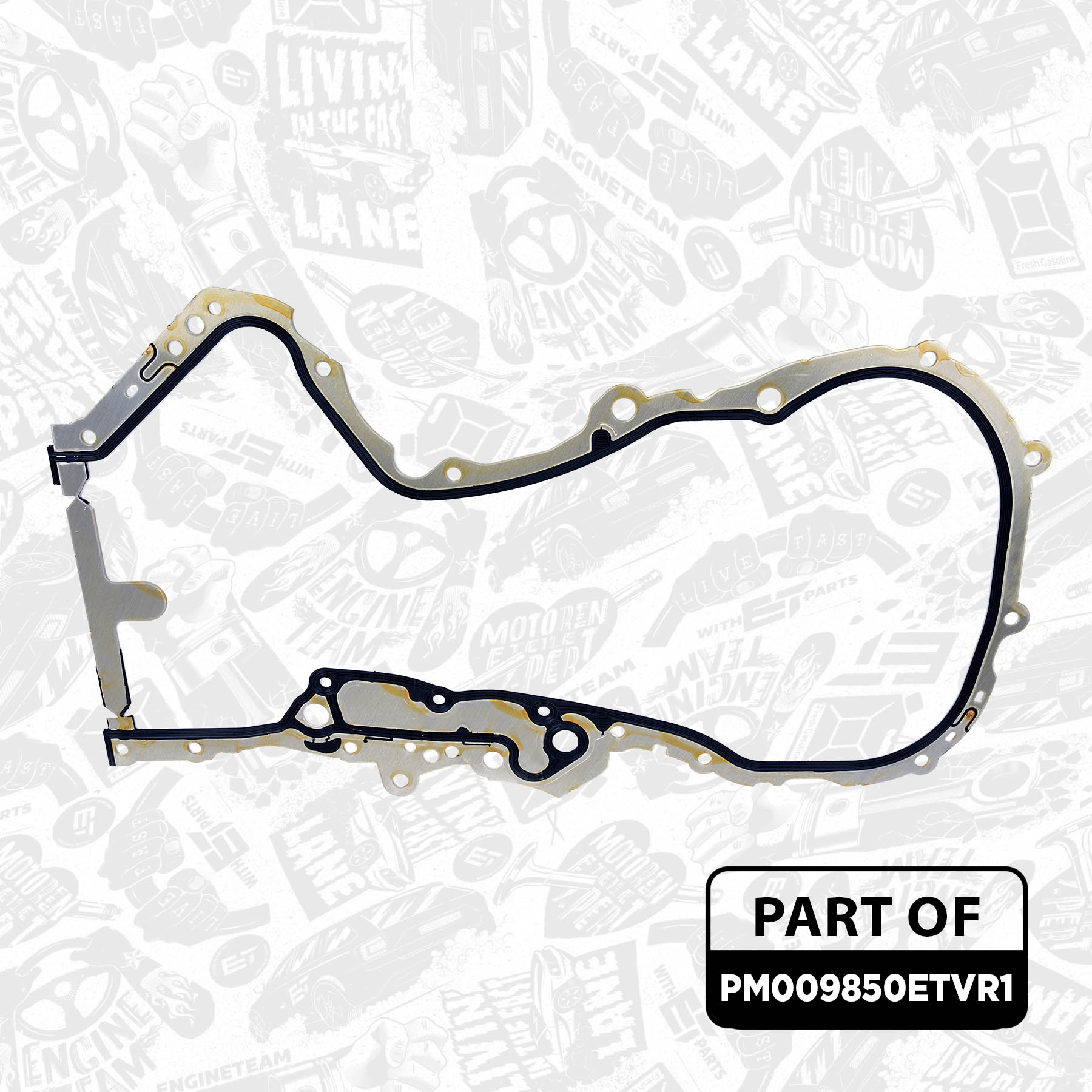

- Gasket, timing gear ELRING 092.750

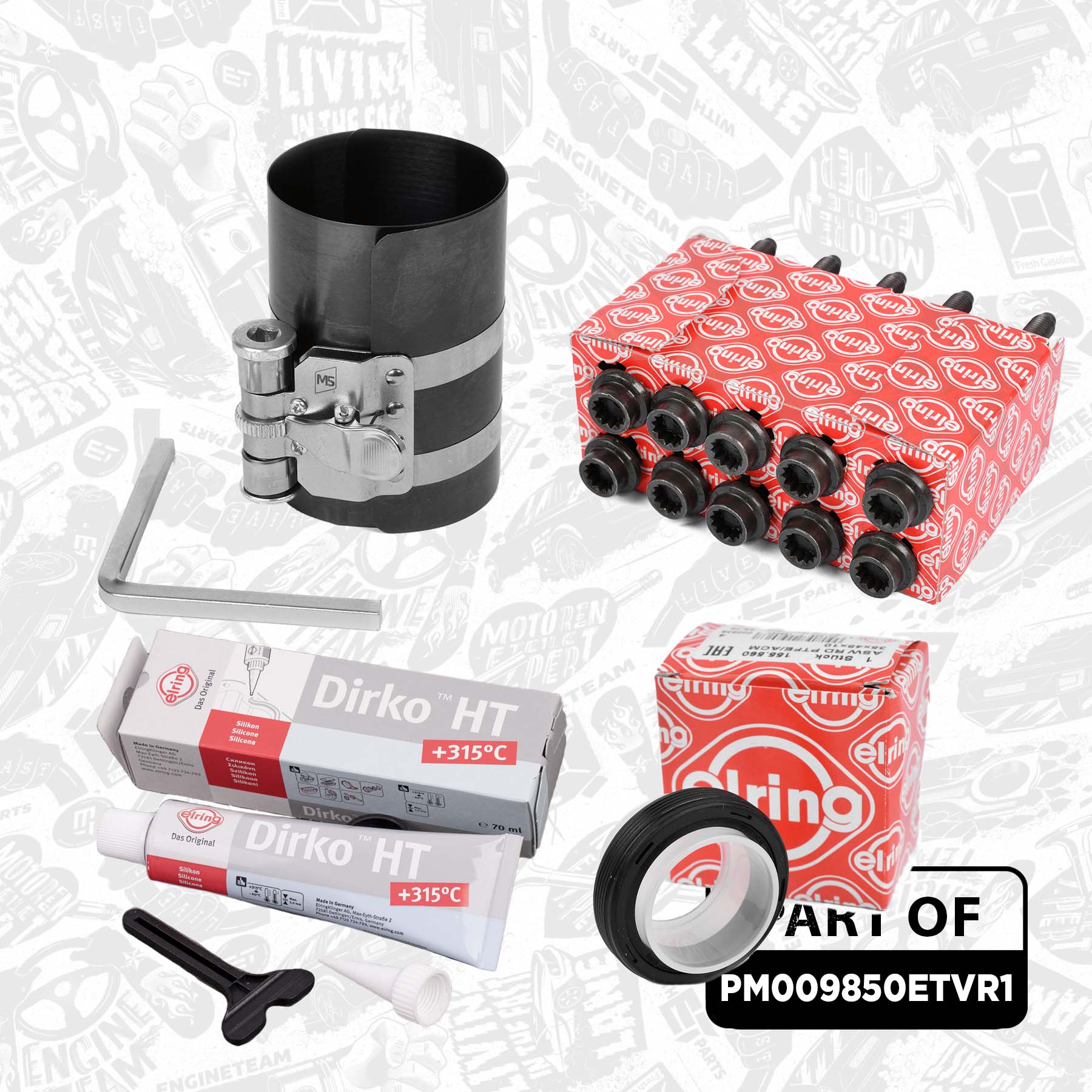

- Cylinder head bolt set ELRING 730.300
- Sealant - Dirko - grey, 70ml ELRING 036.164
- Shaft sealing ring, crankshaft ELRING 155.560
- Timing chain set ET ENGINETEAM RS0049
- Tool for fitting the piston with rings into the cylinder ET ENGINETEAM HP0009
- Connecting rod ET ENGINETEAM OM0051
- Tool set, timing chain ET ENGINETEAM HP0023
Automatically generated description. Please verify compatibility before ordering.
Categories
Part type
Safety information
Reference Numbers
- AUDI # 03C 103 383 AE
- VW # 03C 109 287 F
- AUDI # 03C 103 383AE
- VW # 03C 109 287F
- AUDI # 03C103383AE
- VW # 03C109287F
- AUDI # 03C 103 383 AH
- VW # 03C 109 287 G
- AUDI # 03C103383AH
- VW # 03C 109 287G
- AUDI # 03C 103 383AH
- VW # 03C109287G
- VW # 03C 109 287 H
- VW # 03C 109 287H
- VW # 03C109287H
- VW # WHT000912
- VW # WHT 000 912
- VW # 038 103 085 E
- VW # 038103085E
- ELRING # 092.750
- ELRING # 660.300
- ELRING # 732.841
- ET ENGINETEAM # PM009850ETVR1
Parts list
General information

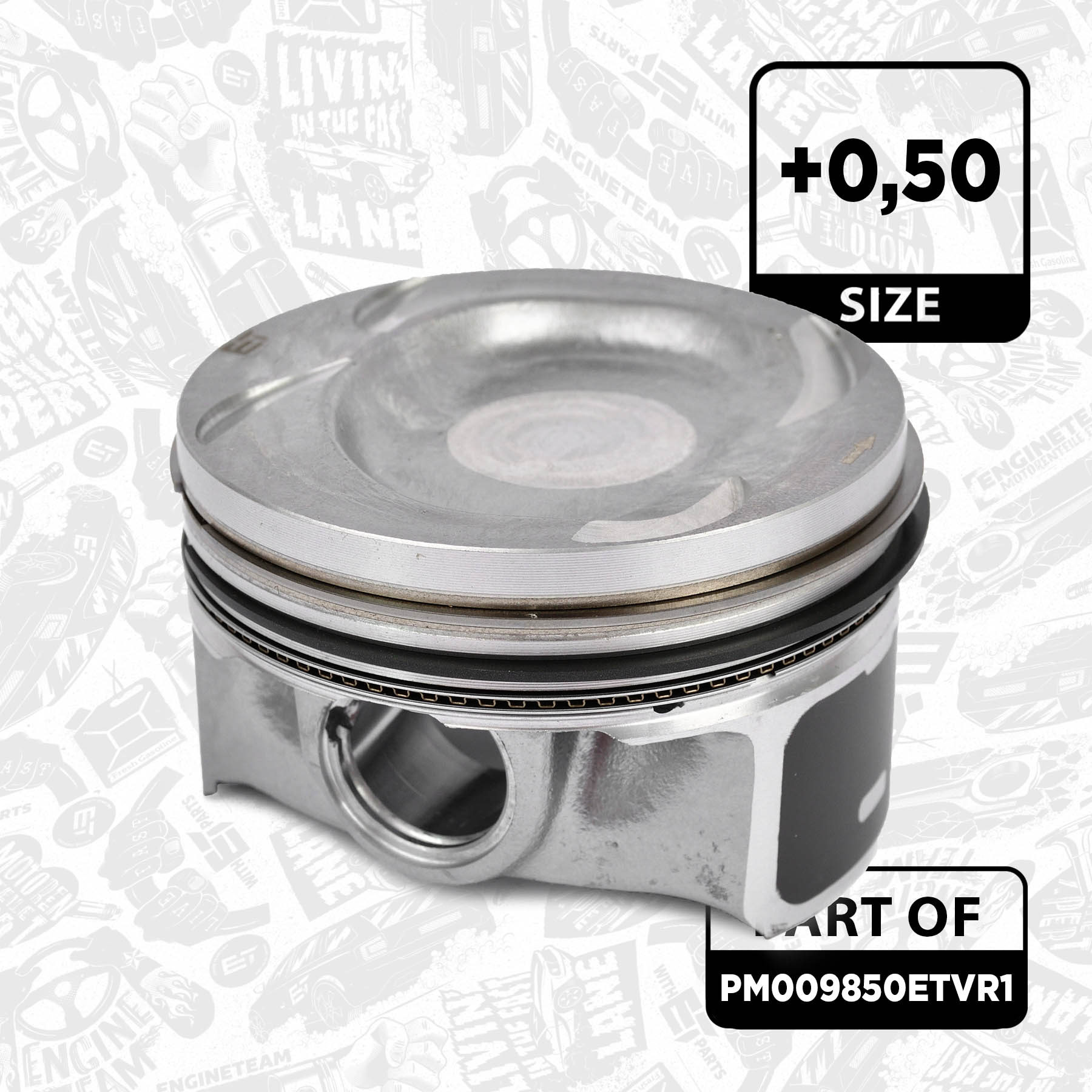

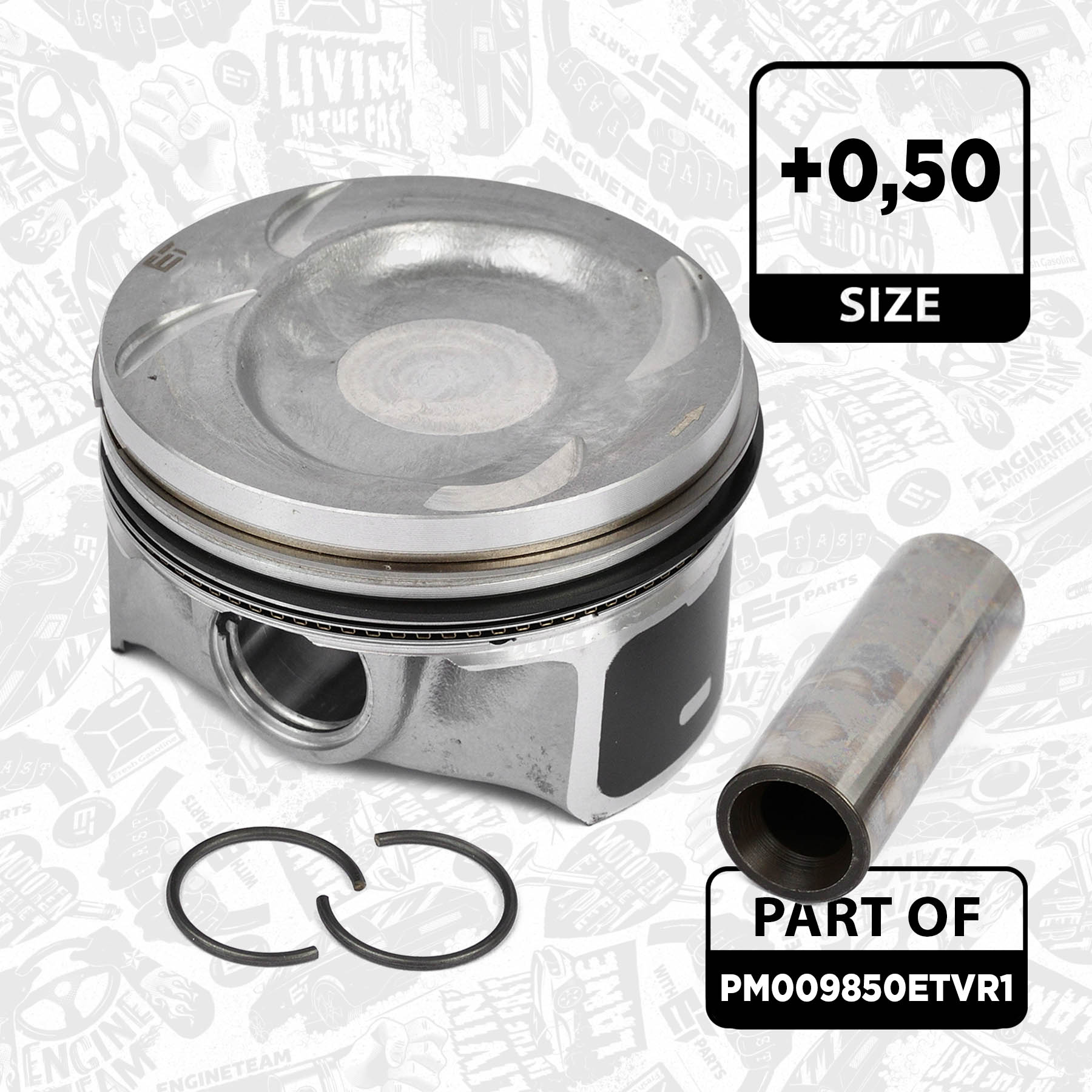

| Code: | PM004950 |
| Brand: | ET ENGINETEAM |
| Title: | Piston with rings and pin |
| Car: | Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+ |
Criteria
| Supplementary Article/Supplementary Info: | with piston rings |
| Oversize [mm]: | 0,5 mm |
| Compression Height [mm]: | 29 mm |
| Cylinder Bore [mm]: | 77 mm |
| Bolt Head Diameter [mm]: | 19 mm |
| Bolt Length [mm]: | 54 mm |
| Stock: | > 25 pcs |
General information

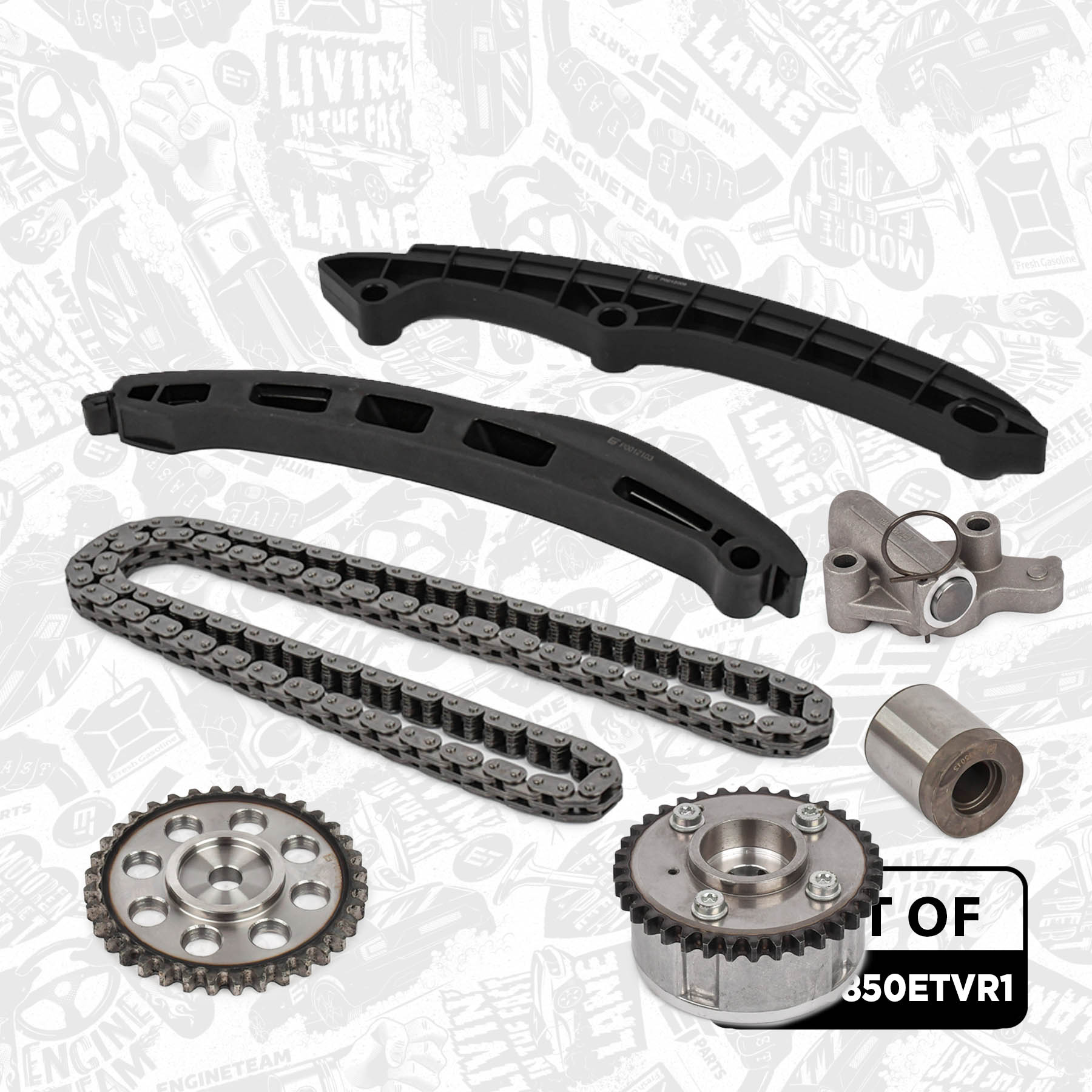

| Code: | RS0049 |
| Brand: | ET ENGINETEAM |
| Title: | Timing Chain Kit |
| Tag: | boxET – service kit |
| Car: | Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+ |
Criteria
| Supplementary Article/Supplementary Info: | with gears |
| Number of chain links: | 130 |
| Chain Type: | Silent Chain |
| Stock: | > 25 pcs |
General information
| Code: | HP0009 |
| Brand: | ET ENGINETEAM |
| Title: | Piston Ring Compressor |
Criteria
| Diameter up to [mm]: | 125 mm |
| Stock: | > 25 pcs |
General information

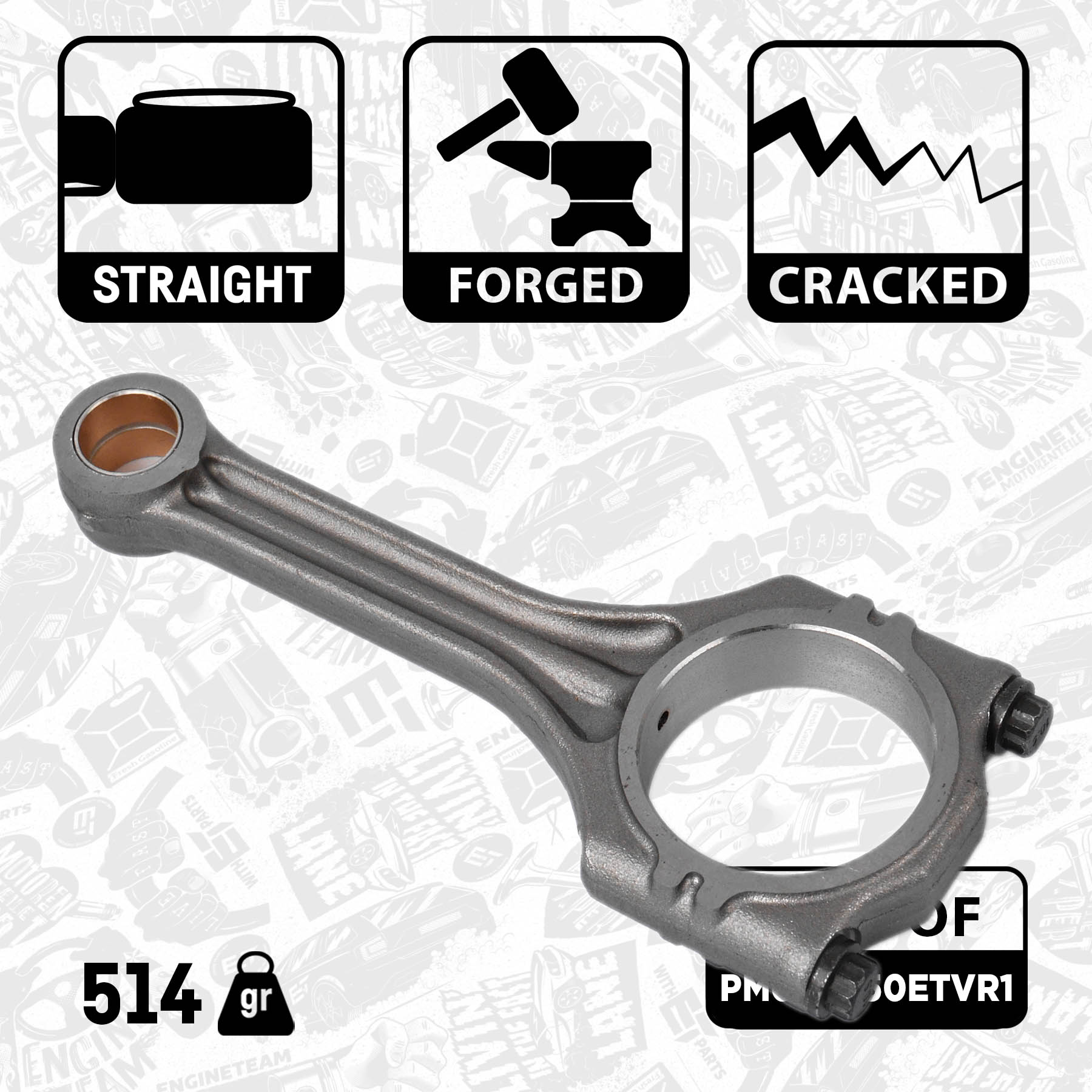

| Code: | OM0051 |
| Brand: | ET ENGINETEAM |
| Title: | Connecting Rod |
| Car: | Audi Seat Skoda VW A1 A3 Altea Leon Toledo Fabia Rapid Eos Golf BLG BMY CAXA 1,4 TSI 2007+ |
Criteria
| Tightening Torque [Nm]: | 50 Nm |
| Diameter of large connecting rod big end [mm]: | 50,6 mm |
| Dia. of small connecting rod big end (with bushing) [mm]: | 19 mm |
| Hole Spacing [mm]: | 109,2 mm |
| Processing: | Forged |
| Processing: | cracked |
| Connecting Rod Design: | Parallel Connecting Rod |
Show all
Show less
| Stock: | > 25 pcs |
General information
| Code: | HP0023 |
| Brand: | ET ENGINETEAM |
| Title: | Tool Set, timing chain |
| Car: | Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+ |
Criteria
| Number of Parts [parts]: | 8 -part |
| Gauge: | with dial gauge |
| Stock: | > 25 pcs |
