Code: HP0023 |
Title: Tool Set, timing chain
Tool Set, timing chain - HP0023 ET ENGINETEAM - 3313, T10170, T10170/A/1
Car: Skoda VW Audi Seat Passat Sharan A1 Yeti Superb Leon Toledo 1,4TSI 2007+Stock: | 18 pcs |
Where to buy?
EAN: 8592779036059

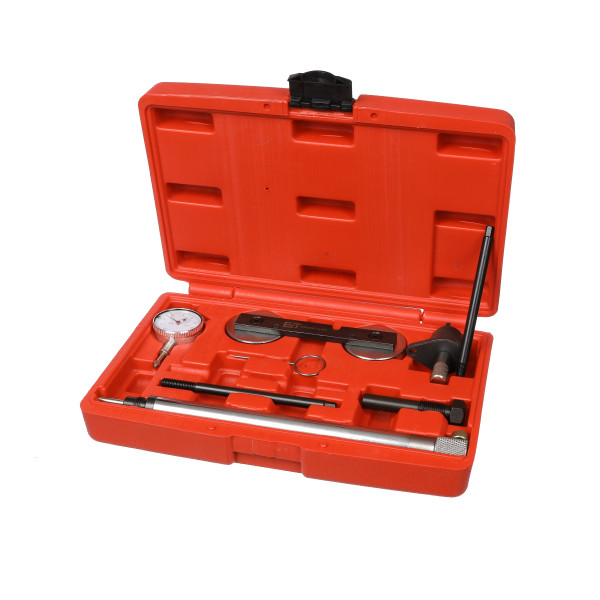

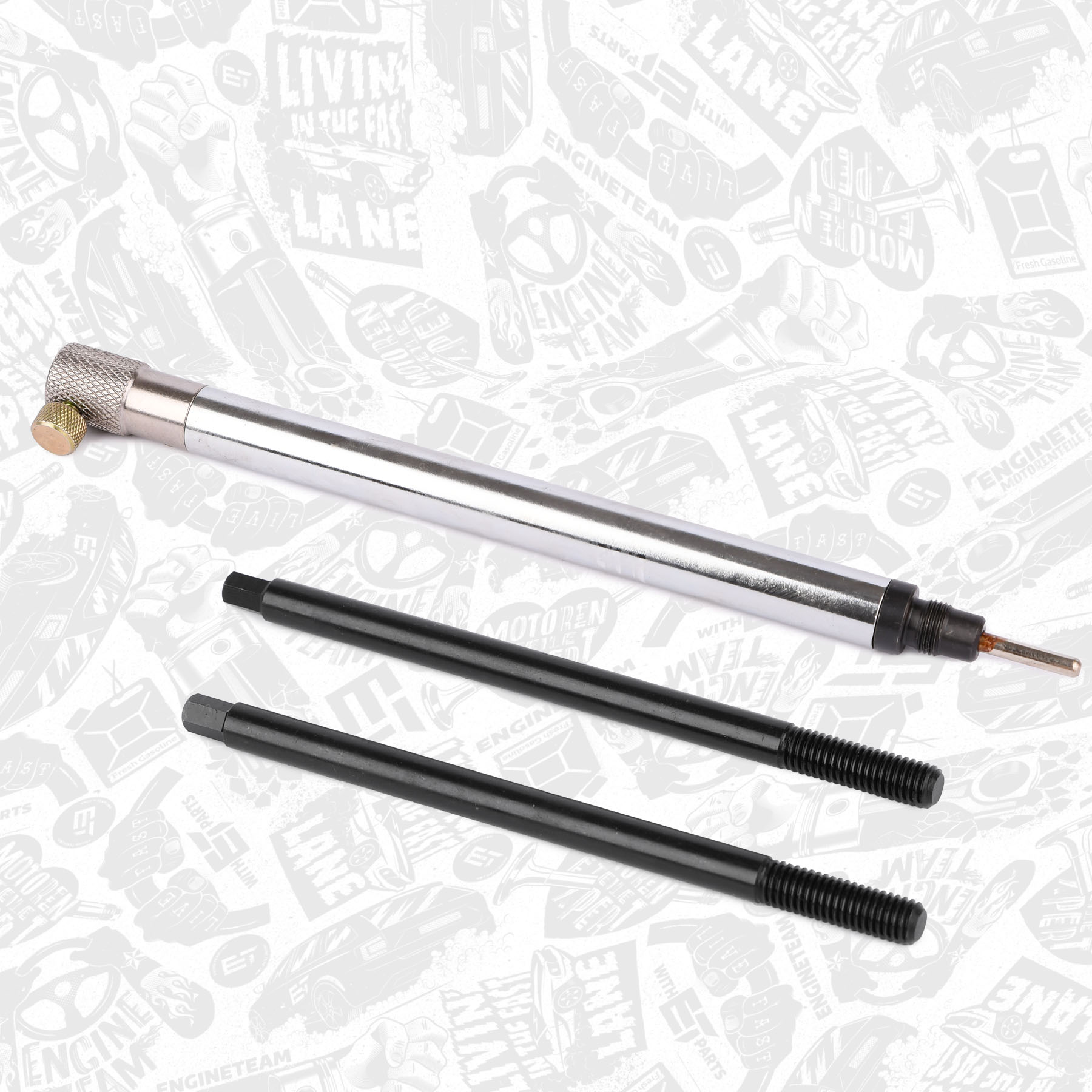

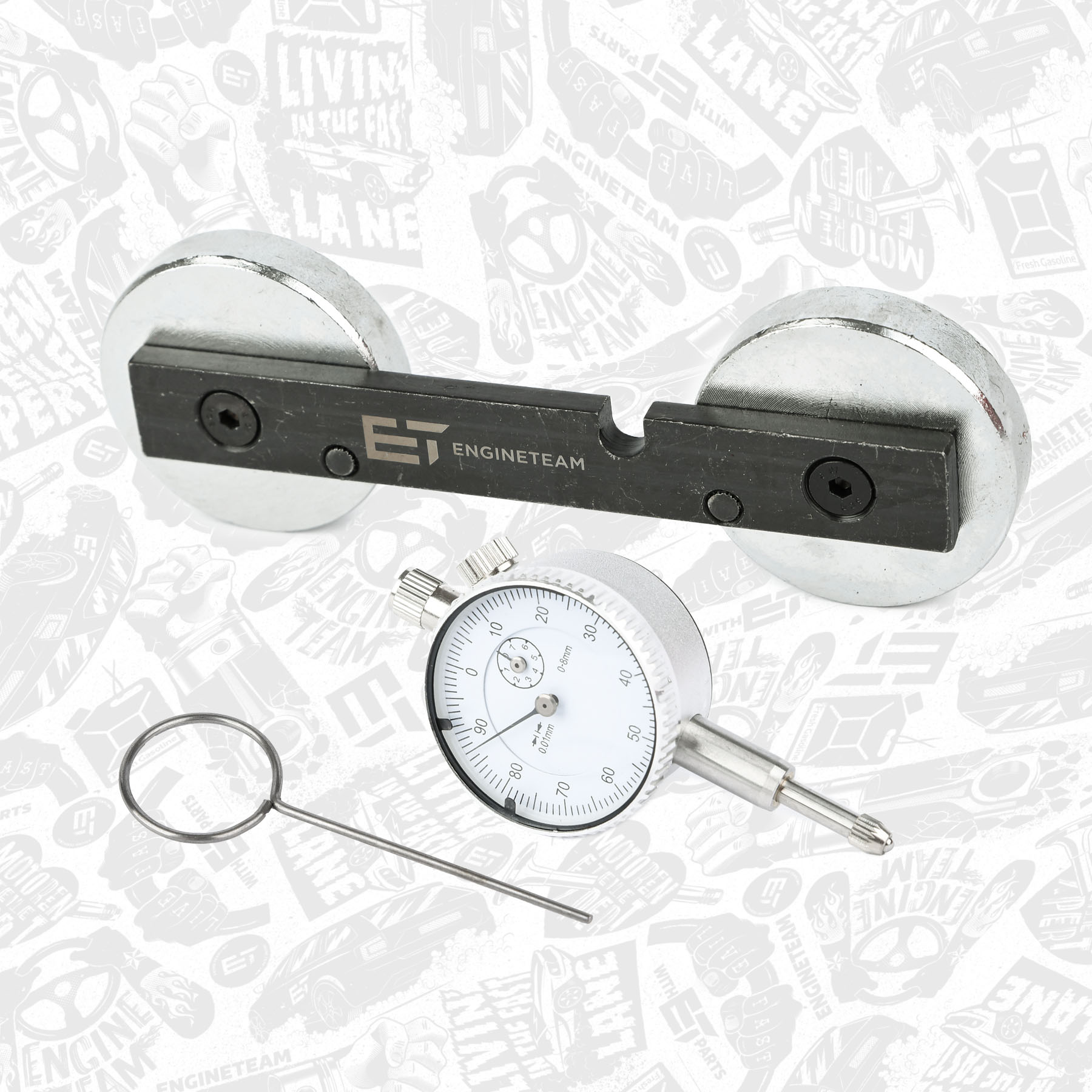

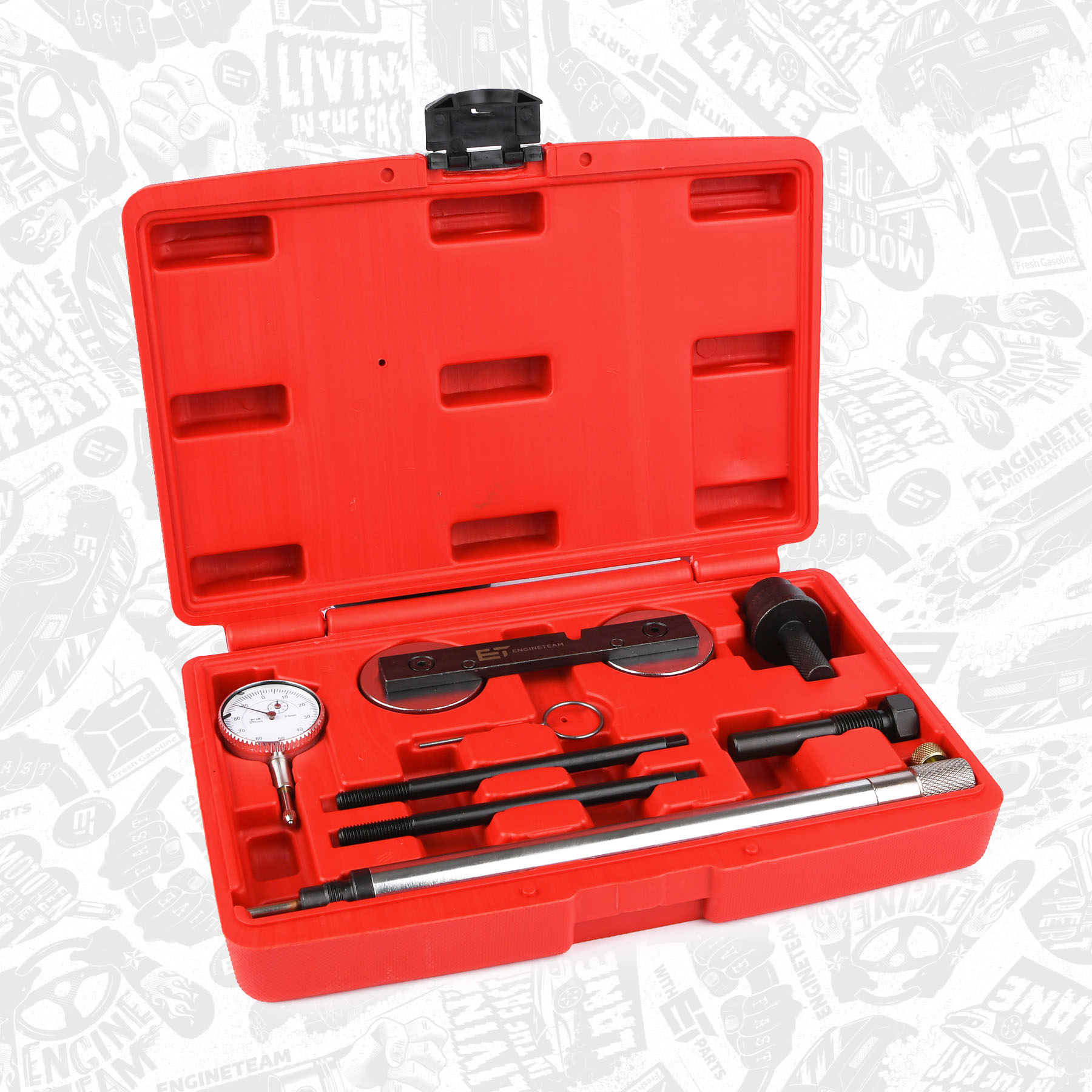

ET Engineteam timing locking tools for Audi, VW, Škoda and Seat vehicles. It's designed for engines with timing chain. The set contains a measuring device with a holder, 2x camshaft lock, 2x crankshaft gear locking pin, a hydraulic tensioner lock and a crankshaft lock. Suitable, for example, for AXU, BKG, BLP, BTS, BLG, CAVA, CAVC, CAXA, CAXC, CBZA, CBZB and other engines. For Audi A1 / A3, Seat Toledo / Ibiza / Altea, Škoda Rapid / Octavia / Fabia, VW Polo / Passat / Golf / Caddy 1.2 / 1.4 TSI manufactured since 2010.
OE: T10170, T10170 / A / 1, T10171, T10340, T10414, T40011, T10341
Categories
Is a part of
General information
Code: | PM004800ETVR4 |
Brand: | ET ENGINETEAM |
Title: | Piston Set |
Car: | Audi Seat Skoda VW Passat Golf Jetta Altea Altea XL EOS Octavia Yeti Superb Leon ALtea XL TOledo A1 A3 CAXA 1,4 TSi/TFSI 2007+ |
Weight : | 8,83 kg |
Criteria
Standard Size [STD]: | yes |
Cylinder Bore [mm]: | 76,51 mm |
Compression Height [mm]: | 29,2 mm |
Recess Depth 1 [mm]: | 4,6 mm |
Bolt Head Diameter [mm]: | 19 mm |
Bolt Length [mm]: | 52 mm |
Supplementary Article/Supplementary Info: | with piston rings |
Component Number: | 4x PM004800 |
Component Number: | RS0103 |
Supplementary Article/Supplementary Info: | with mounting tool |
General Information: | includes components ET Engineteam + Elring |
Show all
Show less
Stock: | 4 pcs |
General information
Code: | PM009800ETVR1 |
Brand: | ET ENGINETEAM |
Title: | Piston Set |
Car: | Skoda VW Audi Seat 1,4TFSI 16V BLG CAVA BMY 2010+ |
Weight : | 7,61 kg |
Criteria
Standard Size [STD]: | yes |
Cylinder Bore [mm]: | 76,5 mm |
Compression Height [mm]: | 29 mm |
Bolt Length [mm]: | 48 mm |
Bolt Head Diameter [mm]: | 19 mm |
Supplementary Article/Supplementary Info: | with piston rings |
Supplementary Article/Supplementary Info: | with mounting tool |
Component Number: | RS0049 |
General Information: | includes components ET Engineteam + Elring |
Show all
Show less
Stock: | 18 pcs |
General information
Code: | PM009800KSVR1 |
Brand: | ET ENGINETEAM |
Title: | Piston Set |
Car: | Skoda VW Audi Seat 1,4TFSI 16V CAVE CTHE CTKA 2010+ |
Weight : | 9,46 kg |
Criteria
Standard Size [STD]: | yes |
Cylinder Bore [mm]: | 76,5 mm |
Compression Height [mm]: | 29 mm |
Bolt Length [mm]: | 48 mm |
Bolt Head Diameter [mm]: | 19 mm |
Supplementary Article/Supplementary Info: | with piston rings |
Supplementary Article/Supplementary Info: | with mounting tool |
General Information: | includes components ET Engineteam + Elring + Kolbenschmidt |
Show all
Show less
Stock: | 8 pcs |
General information
Code: | PM009850ETVR1 |
Brand: | ET ENGINETEAM |
Title: | Piston Set |
Car: | Skoda VW Audi Seat 1,4TFSI 16V BLG CAVA BMY 2010+ |
Weight : | 7,61 kg |
Criteria
Oversize [mm]: | 0,5 mm |
Cylinder Bore [mm]: | 77 mm |
Compression Height [mm]: | 29 mm |
Bolt Length [mm]: | 48 mm |
Bolt Head Diameter [mm]: | 19 mm |
Supplementary Article/Supplementary Info: | with piston rings |
Supplementary Article/Supplementary Info: | with mounting tool |
General Information: | includes components ET Engineteam + Elring |
Show all
Show less
Stock: | 18 pcs |
General information
Code: | RS0103VR3 |
Brand: | ET ENGINETEAM |
Title: | Timing Chain Kit |
Car: | Audi Seat Škoda VW A1 A3 Altea Toledo Fabia Rapid Superb Eos Golf Tiguan CAXA 1,4 TFSI 2008+ |
Weight : | 4,00 kg |
Criteria
Supplementary Article/Supplementary Info: | with mounting tool |
Supplementary Article/Supplementary Info: | with crankshaft seal |
Supplementary Article/Supplementary Info: | with gaskets/seals |
Chain Type: | Silent Chain |
Chain Type: | Closed chain |
Number of Teeth: | 19 |
Number of Teeth: | 23 |
General Information: | All parts of the timing chain kit must be installed |
Show all
Show less
Stock: | 18 pcs |
General information
Code: | RS0126VR2 |
Brand: | ET ENGINETEAM |
Title: | Timing Chain Kit |
Car: | Audi Seat Skoda VW A1 A3 Ibiza Fabia Touran Beetle Golf Passat Tiguan CAVG CAXC BMY CAVA 1,4 TSI |
Weight : | 5,97 kg |
Criteria
Supplementary Article/Supplementary Info: | with gears |
Number of chain links: | 130 |
Number of chain links: | 56 |
Chain Type: | Silent Chain |
Toothing: | 23/18 |
Supplementary Article/Info 2: | with bolts/screws |
Component Number: | 400120400002 |
Supplementary Article/Supplementary Info: | with oil pump chain |
Supplementary Article/Supplementary Info: | with mounting tool |
General Information: | includes components KOLBENSCHMIDT + ET ENGINETEAM |
Show all
Show less
Stock: | 1 pcs |
General information
Code: | PM004800KSVR2 |
Brand: | ET ENGINETEAM |
Title: | Piston Set |
Car: | Audi Seat Skoda VW Passat Golf Jetta Altea Altea XL EOS Octavia Yeti Superb Leon ALtea XL TOledo A1 A3 CAXA 1,4 TSi/TFSI 2007+ |
Weight : | 8,75 kg |
Criteria
Standard Size [STD]: | yes |
Cylinder Bore [mm]: | 76,51 mm |
Compression Height [mm]: | 29,2 mm |
Recess Depth 1 [mm]: | 4,6 mm |
Bolt Head Diameter [mm]: | 19 mm |
Bolt Length [mm]: | 52 mm |
Supplementary Article/Supplementary Info: | with piston rings |
Component Number: | 4x 40477600 |
Component Number: | RS0103 |
Supplementary Article/Supplementary Info: | with mounting tool |
General Information: | Includes components from Kolbenschmidt + Elring |
Show all
Show less
General information
Code: | RS0125VR2 |
Brand: | ET ENGINETEAM |
Title: | Timing Chain Kit |
Car: | Audi Seat Skoda VW A3 Toledo Leon Ibiza Cordoba Altea XL Altea Roomster Rapid Octavia Fabia Touran Passat Jetta Golf EOS CAXC BLP 2007+ |
Weight : | 5,97 kg |
Criteria
Supplementary Article/Supplementary Info: | with gears |
Number of chain links: | 130 |
Chain Type: | Silent Chain |
Toothing: | 18/18 |
Supplementary Article/Info 2: | with bolts/screws |
Supplementary Article/Supplementary Info: | with oil pump chain |
Component Number: | 400540400003 |
Supplementary Article/Supplementary Info: | with mounting tool |
General Information: | includes components KOLBENSCHMIDT + ET ENGINETEAM |
Show all
Show less
