Items for cross-reference number 070 107 065 AK
General information
| Code: | PM001400 |
| Title: | Piston with rings and pin |
| Car: | VW Multivan/Transporter 2,5TDI 2003-2010 |
| Weight: | 0,88 kg |
Criteria
| Fitting Position: | for cylinder 1-2 |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Recess Depth 1 [mm]: | 18,2 mm |
| Compression Height [mm]: | 45,75 mm |
| Cylinder Bore [mm]: | 81 mm |
| Recess Diameter [mm]: | 37,90 mm |
| Bolt Length [mm]: | 68 mm |
| Standard Size [STD]: | yes |
Show all
Show less
| Stock: | > 25 pcs |

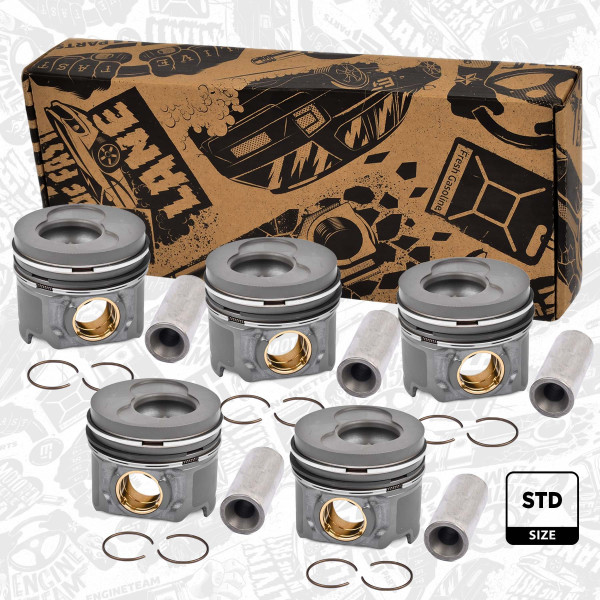

General information
| Code: | PM013700 |
| Title: | Piston kit |
| Tag: | boxET – service kit |
| Car: | VW Multivan/Transporter 2,5TDI 2003-2010 |
| Weight: | 4,64 kg |
Criteria
| Fitting Position: | for cylinder 1-5 |
| Supplementary Article/Supplementary Info: | with piston rings |
| Supplementary Article/Supplementary Info 2: | with piston ring carrier |
| Recess Depth 1 [mm]: | 18,2 mm |
| Compression Height [mm]: | 45,75 mm |
| Cylinder Bore [mm]: | 81,01 mm |
| Recess Diameter [mm]: | 37,90 mm |
| Bolt Length [mm]: | 68 mm |
| Quantity: | 5 |
| Standard Size [STD]: | yes |
Show all
Show less
| Stock: | 15 pcs |
